Product features

Right-Hand Sequential Indicator Combination Lamp 284 Series, Single Unit, 10–30V, ECE Approved.

Product Overview

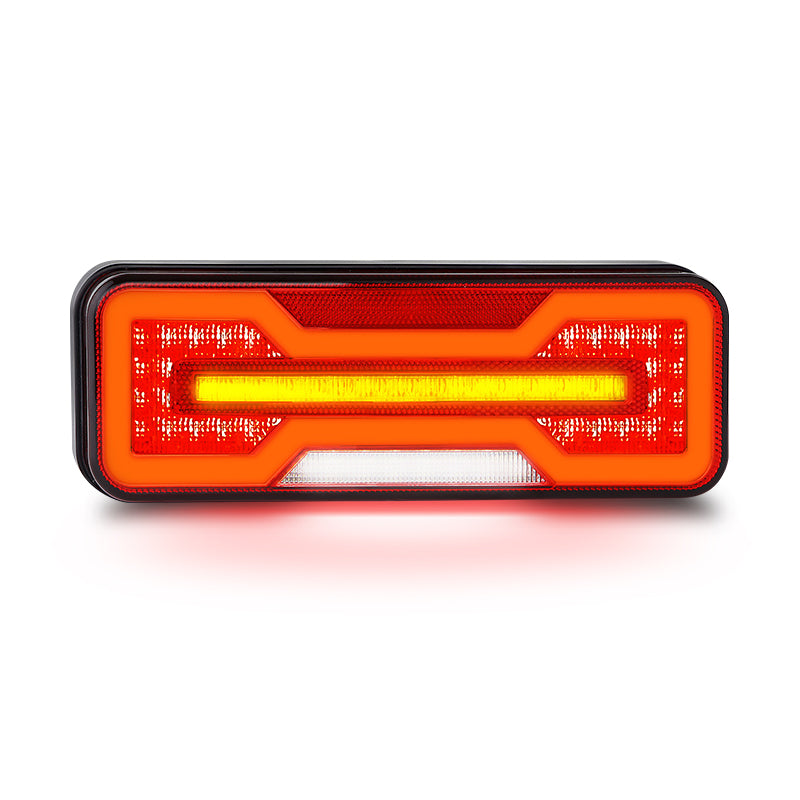

The LED Autolamps 284ARWMRB is the right-hand side, single bulk unit version of the 284 Series (Zeon) sequential rear combination lamp delivering stop, diffused tail, sequential indicator, reverse, and inbuilt reflector functions in the proven 284mm x 100mm x 37mm Zeon form factor. The "RB" suffix denotes Right Hand Bulk a single lamp only, for applications where only one side needs replacement, or where a specific single-sided purchase is required.

The sequential indicator sweeps outwards in a dynamic amber sequence rather than a standard on/off flash, consistent with the 284ARWM-2 twin blister pack listed earlier in this session. ECE approved for road use, the lamp features a bolt-on surface mount with stainless steel fittings and includes a 28cm pre-wired cable. Compatible with the optional MFBKT multi-fit bracket sold separately.

Key Specifications

  • Functions: Stop, tail (diffused), sequential indicator, reverse, reflector
  • Voltage: 10–30V DC (multivolt)
  • Orientation: Right hand side (RHS)
  • Dimensions: 284mm x 100mm x 37mm
  • Cable: 28cm pre-wired
  • Mount: Horizontal surface mount stainless steel bolts, wire through 10mm hole
  • IP rating: IP67
  • Compliance: ECE approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 284ARWMRB

Features & Benefits

  • Right-hand specific: RHS orientation for correct lamp placement on the right side of the vehicle or trailer
  • Sequential indicator: Dynamic sweeping amber LED indicator sequence for premium visibility and road presence
  • Diffused tail function: Even, soft diffused tail light output for a premium finished appearance
  • Single unit (bulk): Individual lamp for single-side replacement or specific single-unit installation requirements
  • 28cm pre-wired cable: Ready for direct installation
  • Stainless steel bolt mount: Secure, corrosion-resistant surface mounting
  • MFBKT compatible: Suits the LED Autolamps multi-fit bracket for tray vehicle installations (sold separately)
  • ECE approved: Legal for Australian road use across all functions
  • IP67 weatherproof: Completely sealed against dust and temporary water immersion
  • 10–30V multivolt: Suits 12V and 24V systems
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 284ARWMRB
Brand LED Autolamps
Series 284 Series (Zeon)
Functions Stop, Diffused Tail, Sequential Indicator, Reverse, Reflector
Orientation Right Hand Side (RHS)
Voltage 10–30V DC (multivolt)
Dimensions 284mm x 100mm x 37mm
Cable Length 28cm
Mount Type Horizontal surface mount stainless steel bolts
Mounting Hole 10mm for wire
IP Rating IP67
Current Stop 0.18A @ 13.8V / 0.08A @ 28V
Current Tail 0.14A @ 13.8V / 0.07A @ 28V
Current Indicator 0.3A @ 13.8V / 0.15A @ 28V
Current Reverse 0.14A @ 13.8V / 0.08A @ 28V
Compliance ECE approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 10–30V trailers, caravans, ute trays, and commercial vehicles:

  • 4WD tray and canopy builds
  • Caravans and camper trailers
  • Box trailers and light commercial trailers
  • Small to medium trucks

Frequently Asked Questions

Is this a left or right-hand lamp?

This is the right-hand side (RHS) lamp. For the left-hand side refer to the 284ARWMLB. For a matched left and right pair, refer to the 284ARWM-2 twin blister pack.

What is the difference between the 284ARWMRB and the 284ARWM-2?

The 284ARWM-2 is a matched left and right pair in a twin blister pack. The 284ARWMRB is the right-hand lamp only as a single bulk unit useful for single-side replacement.

Is the MFBKT bracket included?

No the MFBKT multi-fit bracket is sold separately. It is compatible with the 284ARWMRB for tray vehicle applications.

What is the sequential indicator?

The sequential indicator LEDs sweep outwards in a dynamic amber sequence rather than a standard on/off flash a premium indicator style for improved visibility and road presence.
