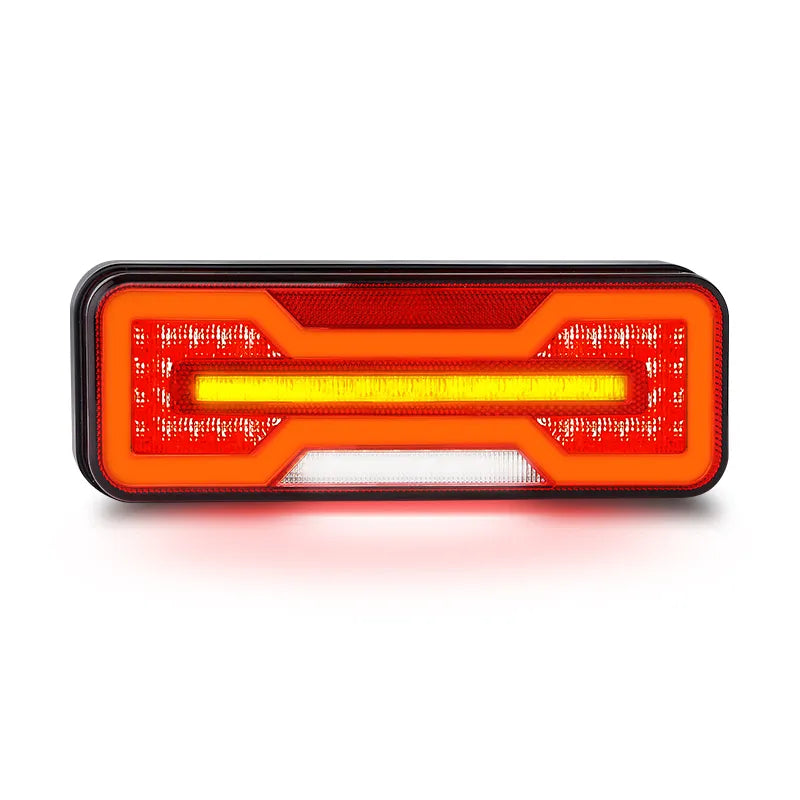

LED Autolamps 284ARWMLB 284 Series Rear Combination Lamp LHS
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 284ARWMLB 284 Series Rear Combination Lamp LHS

SKU: 284ARWMLB
Price
$224
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Left-Hand Sequential Indicator Combination Lamp 284 Series, Single Unit, 10–30V, ECE Approved.

Product Overview

The LED Autolamps 284ARWMLB is the left-hand side, single bulk unit version of the 284 Series (Zeon) sequential rear combination lamp the direct companion to the right-hand 284ARWMRB listed immediately prior. Delivering stop, diffused tail, sequential indicator, reverse, and inbuilt reflector functions in the proven 284mm x 100mm x 37mm Zeon form factor, the "LB" suffix denotes Left Hand Bulk a single lamp for applications where only the left side needs replacement or a specific single-sided purchase is required.

The sequential indicator sweeps outwards in a dynamic amber sequence for premium visibility and road presence. ECE approved, IP67 rated, and operating across 10–30V DC. Bolt-on horizontal surface mount with stainless steel fittings and 28cm pre-wired cable. Compatible with the optional MFBKT multi-fit bracket (sold separately). Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Functions: Stop, tail (diffused), sequential indicator, reverse, reflector
  • Voltage: 10–30V DC (multivolt)
  • Orientation: Left hand side (LHS)
  • Dimensions: 284mm x 100mm x 37mm
  • Cable: 28cm pre-wired
  • Mount: Horizontal surface mount stainless steel bolts, wire through 10mm hole
  • IP rating: IP67
  • Compliance: ECE approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 284ARWMLB

Features & Benefits

  • Left-hand specific: LHS orientation for correct lamp placement on the left side of the vehicle or trailer
  • Sequential indicator: Dynamic sweeping amber LED indicator sequence for premium visibility and road presence
  • Diffused tail function: Even, soft diffused tail light for a premium finished appearance
  • Single unit (bulk): Individual lamp for single-side replacement or specific single-unit installations
  • 28cm pre-wired cable: Ready for direct installation
  • Stainless steel bolt mount: Secure, corrosion-resistant surface mounting
  • MFBKT compatible: Suits the LED Autolamps multi-fit bracket for tray vehicle installations (sold separately)
  • ECE approved: Legal for Australian road use across all functions
  • IP67 weatherproof: Completely sealed against dust and temporary water immersion
  • 10–30V multivolt: Suits 12V and 24V systems
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 284ARWMLB
Brand LED Autolamps
Series 284 Series (Zeon)
Functions Stop, Diffused Tail, Sequential Indicator, Reverse, Reflector
Orientation Left Hand Side (LHS)
Voltage 10–30V DC (multivolt)
Dimensions 284mm x 100mm x 37mm
Cable Length 28cm
Mount Type Horizontal surface mount stainless steel bolts
Mounting Hole 10mm for wire
IP Rating IP67
Current Stop 0.18A @ 13.8V / 0.08A @ 28V
Current Tail 0.14A @ 13.8V / 0.07A @ 28V
Current Indicator 0.3A @ 13.8V / 0.15A @ 28V
Current Reverse 0.14A @ 13.8V / 0.08A @ 28V
Compliance ECE approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 10–30V trailers, caravans, ute trays, and commercial vehicles:

  • 4WD tray and canopy builds
  • Caravans and camper trailers
  • Box trailers and light commercial trailers
  • Small to medium trucks

Frequently Asked Questions

Is this a left or right-hand lamp?

This is the left-hand side (LHS) lamp. For the right-hand side refer to the 284ARWMRB. For a matched left and right pair, refer to the 284ARWM-2 twin blister pack.

What is the difference between the 284ARWMLB and the 284ARWM-2?

The 284ARWM-2 is a matched left and right pair in a twin blister pack. The 284ARWMLB is the left-hand lamp only as a single bulk unit useful for single-side replacement.

Is the MFBKT bracket included?

No the MFBKT multi-fit bracket is sold separately. It is compatible with the 284ARWMLB for tray vehicle applications.

What is the sequential indicator?

The sequential indicator LEDs sweep outwards in a dynamic amber sequence rather than a standard on/off flash a premium indicator style for improved visibility and road presence.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
