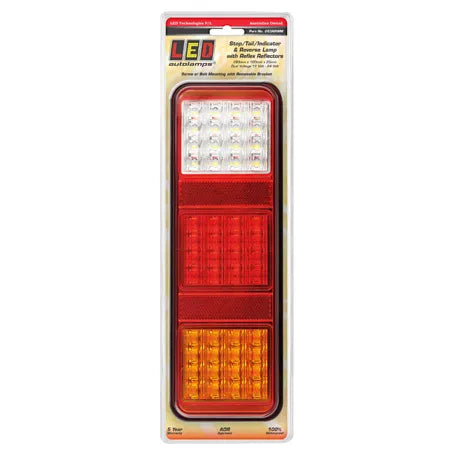

LED Autolamps 283ARWM 12/24V Stop/Tail/Indicator/Reverse Lamp Inbuild Reflectors

One Lamp, Four Functions ADR-Approved Combination Tail Lighting Built for Trucks, Trailers, and Touring Caravans.

Product Overview

The LED Autolamps 283ARWM is a 4-in-1 combination LED tail lamp delivering stop, tail, indicator, and reverse lighting from a single compact unit. Designed for trucks, semi-trailers, caravans, and heavy vehicles, it consolidates four compliance-critical rear lighting functions into one ADR-approved assembly reducing installation complexity, minimising wiring runs, and cutting the number of separate lamps required to meet Australian road regulations.

At 283mm long and just 25mm deep, the 283ARWM is low-profile enough for flush trailer body mounting while the removable bracket offers flexible installation options across a range of vehicle and trailer configurations. Inbuilt reflectors eliminate the need for a separate rear reflector, keeping the installation clean and compliant. Dual voltage operation across 12V and 24V suits the full range of Australian commercial and recreational vehicles, and the IP67 rating and 5-year warranty back it for the long haul.

Key Specifications

• Light functions: Stop / Tail / Indicator / Reverse (4-in-1)
• Voltage: 12V / 24V (dual voltage)
• IP rating: IP67 — fully dust-tight; immersion-resistant to 1m depth for 30 minutes
• Compliance: ADR Road Approved
• Mount type: Screw or bolt mounting with removable bracket
• Inbuilt reflectors: Yes
• Dimensions: 283mm (L) × 100mm (W) × 25mm (D)
• Light type: LED
• Warranty: 5 years

Features & Benefits

• 4-in-1 Combination Function — Stop, tail, indicator, and reverse in a single lamp assembly. One unit replaces up to four separate lamps, cutting installation time, reducing cable complexity, and simplifying compliance checks on trucks, trailers, and caravans.
• Inbuilt Reflectors — Factory-integrated reflectors meet ADR rear reflector requirements without needing a separate unit, reducing the total number of components on the vehicle and delivering a cleaner finished installation.
• ADR Road Approved — Meets Australian Design Rules for all four lighting functions, confirming full road-legal compliance from the moment it's fitted — no third-party sign-off required.
• IP67 Waterproof Rating — Fully sealed against dust and capable of withstanding water immersion to 1 metre for 30 minutes. Built for the wash-downs, creek crossings, and heavy rain encountered on Australian work and touring vehicles.
• 12V / 24V Dual Voltage — Works natively across both light vehicle and heavy transport electrical systems without modification — a single SKU for your entire fleet or mixed-vehicle setup.
• Removable Mounting Bracket — The bracket can be fitted or removed to suit different trailer body profiles and mounting configurations, giving installers flexibility without compromising the lamp's ADR approval.
• Low Profile 25mm Depth — At just 25mm deep, the 283ARWM sits close to the trailer or vehicle body, reducing the risk of impact damage on tight loading docks, underbody clearance situations, and reversing manoeuvres.
• 5-Year Warranty — Backed by one of the stronger warranties in the combination lamp category, reflecting LED Autolamps' confidence in the product's durability across demanding Australian operating conditions.

Technical Specs

Compatible With / Goes Well With

Suitable vehicle and trailer types:

• Trucks and semi-trailers (12V and 24V systems)
• B-doubles and road trains
• Caravans and camper trailers
• Box trailers and flatbed trailers
• Horse floats and stock trailers
• Buses and coaches
• Heavy haulage and plant transport vehicles
• Custom trailer builds requiring ADR-compliant combination rear lighting

Pairs well with:

• LED Autolamps front and side marker lights for a matched full-vehicle LED lighting upgrade
• LED Autolamps wiring harness accessories
• LED Autolamps clearance lights and number plate lights

Frequently Asked Questions

What lighting functions does the 283ARWM provide?

The 283ARWM is a 4-in-1 combination lamp providing stop, tail, indicator, and reverse lighting from a single unit — covering all four primary rear lighting compliance functions required under Australian road regulations.

Does this lamp comply with Australian road regulations?

Yes. The 283ARWM carries full ADR (Australian Design Rules) approval for all four lighting functions, including inbuilt reflectors, making it road-legal for use on vehicles operated on Australian public roads and highways.

What does the removable bracket allow for installation?

The removable bracket provides flexibility for different trailer body profiles and mounting surfaces. The lamp can be installed directly with screws or bolts, or using the bracket for surface-mounted or recessed applications depending on the vehicle or trailer configuration.

Is this lamp suitable for both 12V caravans and 24V trucks?

Yes. The 283ARWM operates across 12V and 24V without modification, making it suitable for use on both light recreational vehicles and heavy commercial transport in a single SKU.

What does the IP67 rating mean for a tail lamp in outdoor use?

IP67 means the lamp is completely sealed against dust and can withstand water immersion to 1 metre for 30 minutes — protecting against rain, wash-downs, creek crossings, and the high-pressure cleaning common in fleet and transport maintenance environments.
