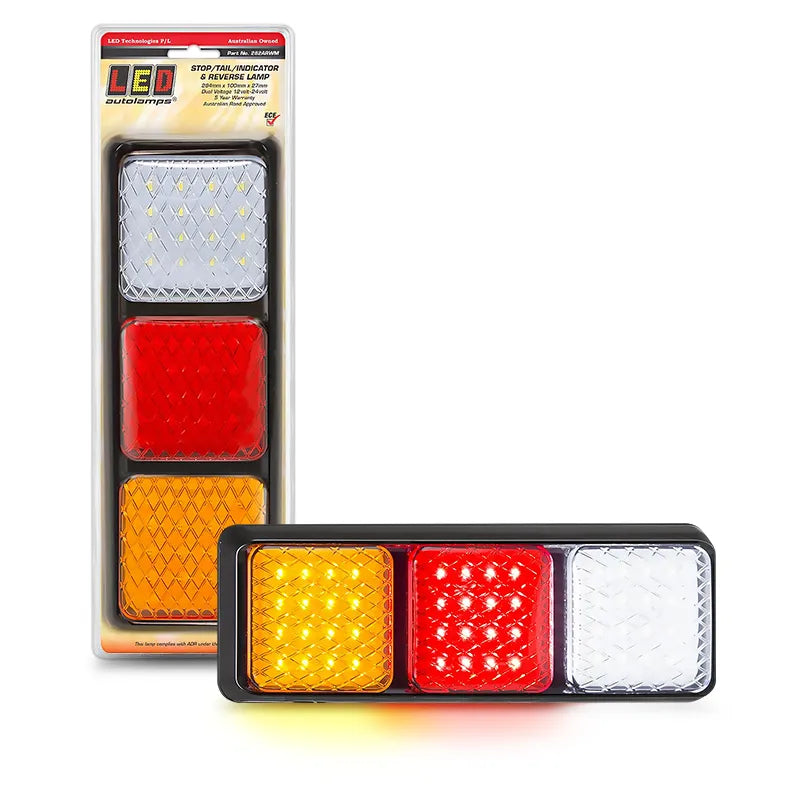

LED Autolamps 282ARWM 12/24V Stop/Tail/Indicator/Reverse Amber Red LED Light

Modern Square Combination Lamp Stop, Tail, Indicator & Reverse in a Single 284mm Black Unit.

Product Overview

The LED Autolamps 282ARWM is a four-function LED combination lamp delivering stop, tail, indicator, and reverse functions in a single modern square unit. Measuring 284mm x 100mm x 27mm with a distinctive bubble diamond lens pattern, the 282ARWM brings a contemporary aesthetic to trailer, caravan, 4WD, and light commercial vehicle rear lighting while meeting ADR and ECE compliance requirements across all four functions.

The black housing and diamond lens design give this lamp a sharper, more modern appearance compared to traditional rectangular combination lamps. Mounting is via rear bolts through a 10mm hole in the fixing surface the lamp can be mounted either horizontally or vertically, offering installation flexibility not available on most combination lamps. Pre-wired with a 20cm cable and supplied individually in blister packaging, the 282ARWM is backed by LED Autolamps' 5-year warranty.

Key Specifications

• Functions: Stop, tail, indicator, reverse
• Housing colour: Black
• Lens: Bubble diamond pattern
• Dimensions: 284mm x 100mm x 27mm
• Mount type: Horizontal or vertical surface mount rear bolts through 10mm hole
• Cable length: 20cm
• Wiring: Brown = tail / Red = stop / Yellow = indicator / White = earth
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR and ECE approved
• Warranty: 5 years
• Pack quantity: Single unit blister pack
• Brand: LED Autolamps
• SKU: 282ARWM

Features & Benefits

• Four-function combination lamp: Stop, tail, indicator, and reverse in a single unit, simplifying wiring and reducing lamp count for rear lighting installations
• Horizontal or vertical mounting: Unique for a combination lamp of this size the 282ARWM can be mounted either horizontally or vertically, allowing installation flexibility across a wide range of trailer, tray, and vehicle configurations
• Modern bubble diamond lens: The distinctive bubble diamond lens pattern gives the 282ARWM a contemporary appearance that stands out from traditional flat-faced combination lamps
• Black housing: Low-profile black finish suits modern trailer and commercial vehicle builds where a clean, darker lamp aesthetic is preferred
• Surface mount via 10mm hole: Rear bolt mounting through a 10mm hole provides a clean, secure installation with no visible front fasteners
• 20cm cable: Pre-wired with a 20cm lead for straightforward connection during installation
• Colour-coded wiring: Brown (tail), Red (stop), Yellow (indicator), White (earth) standard colour coding for fast, error-free wiring
• ADR and ECE approved: Fully compliant with Australian Design Rules and ECE standards for all four lamp functions
• IP67 weatherproof: Completely protected against dust ingress and temporary water immersion
• 12V and 24V compatible: Multivolt operation suits passenger and caravan trailers through to 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring ADR-compliant combination rear lighting including:

• 4WD and tray vehicles
• Caravans and camper trailers
• Box trailers, car trailers, and boat trailers
• Light commercial trucks

Pairs well with:

• LED Autolamps 35CARM red/amber side marker
• LED Autolamps 42AM amber side direction indicator
• LED Autolamps 42WM white front position marker
• LED Autolamps 7030A amber and 7030R red self-adhesive reflectors

Frequently Asked Questions

Can this lamp be mounted vertically as well as horizontally?

Yes the 282ARWM is unique in this regard. Unlike most combination lamps which are fixed to horizontal mounting only, the 282ARWM can be mounted either horizontally or vertically, providing installation flexibility for non-standard trailer and vehicle configurations.

How is the 282ARWM mounted?

The lamp mounts using rear bolts through a 10mm hole in the fixing surface no visible front fasteners. Refer to ADR 13/00 for mounting position and height requirements applicable to your vehicle or trailer type.

Is this lamp ADR approved for all four functions?

Yes the 282ARWM is ADR and ECE approved across all four functions: stop, tail, indicator, and reverse.

What do the wire colours mean for this lamp?

Brown = tail, Red = stop, Yellow = indicator, White = earth. Standard colour coding makes wiring quick and error-free.
