LED Autolamps 280TARWM 280 Series Multivolt Tinted Lens
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 280TARWM 280 Series Multivolt Tinted Lens

SKU: 280TARWM
Price
$175
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

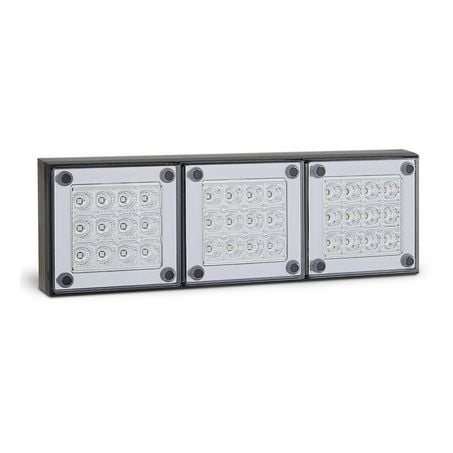

LED Autolamps 280TARWM 12-24V 280 Mini Jumbo Stop Tail Indicator and Reverse Combination Lamp with Reflector Tinted Lens 282mm x 95mm x 28mm ADR Approved CTA060088 IP67

The LED Autolamps 280TARWM is a 12-24V Mini Jumbo LED stop/tail/indicator/reverse combination lamp with inbuilt reflector and tinted lens in a 282mm x 95mm x 28mm housing. ADR approved (CTA060088), IP67 waterproof. Five-year warranty. Sold individually.

Product overview

The 280TARWM is the tinted lens version of the 280 Mini Jumbo stop/tail/indicator/reverse combination lamp, adding an inbuilt reflector and tinted lens for a distinctive, stealth appearance when inactive. The tinted lens reduces the visibility of the LED array and lamp internals when the lamp is off, while the inbuilt reflector provides passive reflector compliance without a separate unit. ADR approval CTA060088 confirms road-legal compliance in Australia. 12-24V compatible. IP67 rated.

Features and benefits

Stop, tail, indicator, reverse, and inbuilt reflector in one unit: Five-function combination lamp in the 280 Mini Jumbo format.

Tinted lens: Distinctive stealth appearance when inactive lamp internals less visible when off.

Inbuilt reflector: Integrated passive reflector for reflector compliance without a separate unit.

282mm x 95mm x 28mm Mini Jumbo housing.

ADR approved (CTA060088): Compliant for road use in Australia.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 280TARWM
Brand LED Autolamps
Series 280 Mini Jumbo
Type Stop/tail/indicator/reverse/reflector combination lamp
Light Type LED
Lens Tinted
Inbuilt Reflector Yes
Operating Voltage 12V to 24V
Dimensions 282mm x 95mm x 28mm
Waterproof Rating IP67
ADR Compliance CTA060088
Weight 0.6kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 280TARWM ADR approved?

Yes. The 280TARWM holds ADR approval CTA060088, confirming compliance for road use in Australia as a stop/tail/indicator/reverse combination lamp with reflector.

What is the tinted lens on the 280TARWM?

The tinted lens provides a stealth appearance when the lamp is inactive — the LED array and lamp internals are less visible through the tinted surface when the lamp is off. When energised, the lamp produces the same high-visibility output as a standard lens version.

What is the difference between the 280TARWM and the 280ARWM?

The 280TARWM has a tinted lens and includes an inbuilt reflector. The 280ARWM has an acrylic lens and does not include an inbuilt reflector. Both cover stop, tail, indicator, and reverse functions in the same 282mm x 95mm x 28mm format with ADR CTA060088 approval.

What voltage does the 280TARWM operate on?

The 280TARWM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.

Is the 280TARWM sold as a single unit or a pair?

Sold individually.
