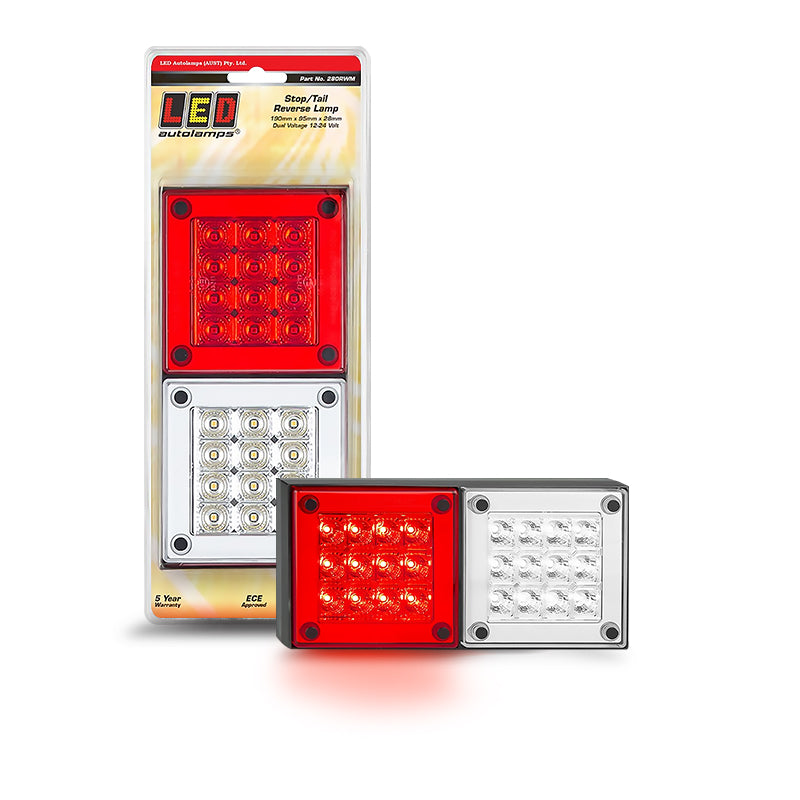

LED Autolamps 280RWM 12/24V Stop/Tail/Reverse

Mini Jumbo Stop/Tail/Reverse Combination Lamp Individual Replaceable Lenses, ADR/ECE Approved, 12/24V.

Product Overview

The LED Autolamps 280RWM is a stop/tail/reverse rear combination lamp from the 280 Series Mini Jumbo range the three-function variant without an amber indicator, suited to applications where a separate side direction indicator is used or where only stop, tail, and reverse functions are required in the rear lamp assembly.

Featuring chrome inner reflectors that enhance the high-powered LEDs for superior brightness and ADR certification compliance, the 280 Series uses stainless steel bolt mounting at the rear of the unit with cable run through a 12mm hole for a clean, secure installation. The lamp has been vibration tested and incorporates solid-state circuit technology with no moving parts. Individual lens modules can be replaced should one be accidentally damaged without replacing the entire lamp assembly. IP67 rated, ADR and ECE approved, 12V and 24V compatible, and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Functions: Stop, tail, reverse (no indicator)
• Dimensions: 282mm x 95mm x 28mm (confirmed see note above)
• Cable: 1.2m
• Mount type: Horizontal surface mount stainless steel bolts, cable through 12mm hole
• Lens: Individual replaceable modules
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR and ECE approved
• Warranty: 5 years
• Brand: LED Autolamps
• SKU: 280RWM

Features & Benefits

• Three-function combination: Stop, tail, and reverse in a single Mini Jumbo unit suited to applications where a separate indicator lamp is used
• Individual replaceable lenses: If a single lens module is accidentally damaged, it can be replaced individually without replacing the entire lamp assembly reducing maintenance costs
• Chrome inner reflectors: Enhance LED output for superior brightness and ADR compliance performance
• Stainless steel bolt mount: Secure, corrosion-resistant horizontal surface mounting for long-term reliability
• Vibration tested: Solid-state circuit technology with no moving parts provides consistent performance in demanding vehicle and trailer environments
• ADR and ECE approved: Legal for stop, tail, and reverse functions on Australian road vehicles and trailers
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring stop/tail/reverse combination rear lighting:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• 4WD tray and canopy builds

Frequently Asked Questions

Does this lamp include an indicator function?

No the 280RWM is stop/tail/reverse only. For the version with an amber indicator, refer to the 280ARWM (stop/tail/indicator/reverse).

Can individual lens modules be replaced?

Yes the 280 Series features individual replaceable lens modules. If one module is accidentally damaged, it can be replaced without replacing the entire lamp assembly a key maintenance advantage over single-piece lamps.

What are the correct dimensions of this lamp?

The confirmed dimensions are 282mm x 95mm x 28mm based on the official LED Autolamps 280 Series specification. The supplier data listing of 190mm x 95mm x 28mm appears to be a data entry error. Always confirm with your retailer if dimensions are critical.

Is this lamp ADR approved for Australian road use?

Yes the 280RWM is ADR and ECE approved for stop, tail, and reverse functions on Australian road vehicles and trailers.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
