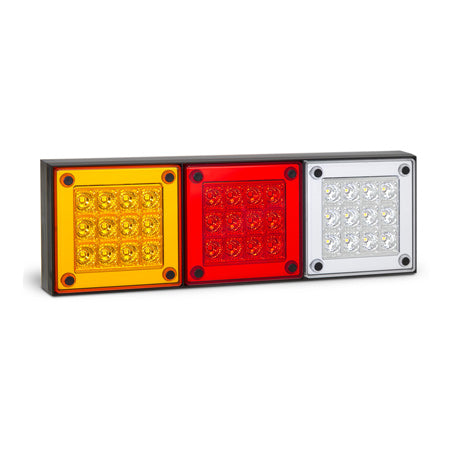

LED Autolamps 280ARWMB 12/24V Mini Jumbo Stop/Tail/Indicator/Reverse Light

Mini Jumbo Stop/Tail/Indicator/Reverse Combination Lamp 36 LEDs, 1.2m Cable, ADR/ECE Approved, Single Bulk Unit.

Product Overview

The LED Autolamps 280ARWMB is the four-function Mini Jumbo rear combination lamp from the 280 Series, delivering stop, tail, indicator, and reverse in a single 282mm x 95mm x 28mm unit the bulk single-unit supply version. With 36 LEDs distributed across functions (12 for stop/tail, 12 for indicator, and 12 for reverse), a 1.2m cable, and ADR approval, the 280ARWMB is a widely used combination lamp across 4WD tray vehicles, caravans, and commercial trailers.

The acrylic lens over ABS base construction provides UV resistance and durability, while individual lens modules are replaceable if accidentally damaged. Chrome inner reflectors enhance LED output, and the lamp is vibration tested with solid-state circuit technology and no moving parts. Surface mount horizontally with stainless steel bolts, running the cable through a 12mm hole. ADR and ECE approved, IP67 rated, 12V and 24V compatible, and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Functions: Stop, tail, indicator, reverse
• LED count: 36 (12 stop/tail, 12 indicator, 12 reverse)
• Lens: Acrylic
• Base: ABS
• Dimensions: 282mm x 95mm x 28mm
• Cable: 1.2m
• Mount type: Horizontal surface mount stainless steel bolts, cable through 12mm hole
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR and ECE approved
• Warranty: 5 years
• Pack quantity: Single unit (bulk)
• Brand: LED Autolamps
• SKU: 280ARWMB

Features & Benefits

• 36 LEDs across four functions: 12 LEDs each for stop/tail, indicator, and reverse functions deliver bright, consistent output for all operational modes
• Individual replaceable lenses: Each lens module can be replaced individually if accidentally damaged avoiding the cost of replacing the entire lamp assembly
• Chrome inner reflectors: Enhance LED brightness and support ADR compliance performance
• 1.2m cable: Generous cable length for flexible routing in most trailer and tray vehicle installations
• Acrylic lens over ABS base: Durable, UV-resistant construction for long-term outdoor performance
• Mini Jumbo design: Popular, proven form factor widely used across Australian 4WD, caravan, and commercial trailer applications
• Vibration tested: Solid-state circuit technology with no moving parts for reliable performance in demanding environments
• ADR and ECE approved: Legal for all four functions on Australian road vehicles
• IP67 weatherproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles including:

• 4WD tray and canopy builds
• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks

Frequently Asked Questions

How many LEDs does the 280ARWMB have?

36 LEDs total 12 for stop/tail, 12 for indicator, and 12 for reverse distributed across the three function zones of the lamp.

Can individual lens modules be replaced?

Yes the 280 Series features replaceable individual lens modules. If one module is accidentally damaged, replace only that module rather than the entire lamp assembly.

What is the difference between the 280ARWMB and the 280RWM?

The 280ARWMB includes all four functions stop, tail, indicator, and reverse. The 280RWM is stop/tail/reverse only without the amber indicator function.

Is this the same as the 280ARWM?

Both are four-function Mini Jumbo lamps. The 280ARWMB is the bulk single-unit version while the 280ARWM typically comes in retail blister packaging. The "B" suffix denotes bulk supply.
