LED Autolamps 280ARWM2LR24/450 Stop/Tail/Reverse LED Light Kit Male Plugs 24v

24V Mini Jumbo Ute Tray Combination Lamp Kit Load Resistors, DT04-6P Plug, Suits Popular Tray Brands.

Product Overview

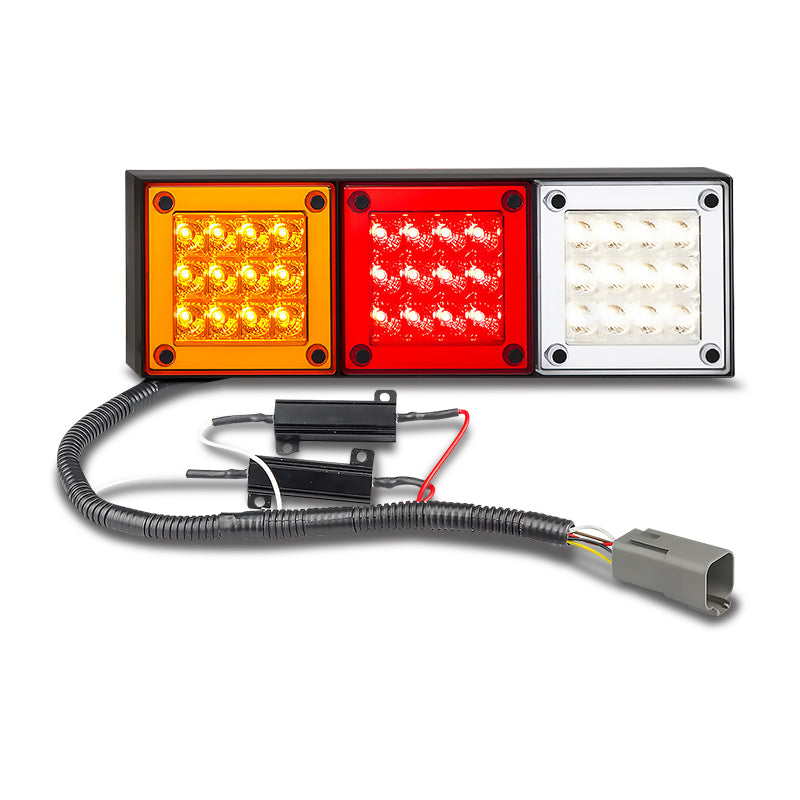

The LED Autolamps 280ARWM2LR24/450 is a 24V ready-to-connect ute tray combination lamp kit, pairing the popular 280 Series Mini Jumbo stop/tail/indicator/reverse lamp with pre-wired load resistors and a DT04-6P male connector. Designed to fit most popular brands of vehicle trays, this kit is the 24V equivalent of the 12V tray lamp kit format pre-wired for direct connection to the applicable vehicle patch lead, eliminating the need for separate load resistor installation.

The included load resistors prevent hyper-flash and dashboard error warnings caused by the low current draw of LED lamps on vehicles with CAN bus or lamp failure monitoring systems a critical requirement for modern 24V commercial vehicle applications. The DT04-6P plug connects directly to the applicable patch lead for a clean plug-and-play installation. IP67 rated, ECE approved, and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Lamp functions: Stop, tail, indicator, reverse
• Voltage: 24V (see note features list states "12 or 24 Volt Options")
• Lamp dimensions: 282mm x 95mm x 28mm
• Connector: DT04-6P male
• Load resistors: Pre-wired (2 x 24V)
• Loom length: Approx. 450mm
• Application: Ute tray suits most popular brands
• IP rating: IP67
• Compliance: ECE approved
• Warranty: 5 years
• Brand: LED Autolamps
• SKU: 280ARWM2LR24/450

Features & Benefits

• Purpose-built for ute tray applications: Engineered to fit most popular brands of aftermarket ute tray bodies for a known-fit lighting solution
• Pre-wired load resistors: Two load resistors prevent hyper-flash and indicator fault warnings on 24V vehicles with lamp failure monitoring or CAN bus indicator circuits
• DT04-6P male connector: Industry-standard Deutsch DT connector for secure, weather-sealed plug-and-play connection to the applicable patch lead
• 24V ready: Specifically configured for 24V commercial vehicle applications including trucks, buses, and large commercial ute tray conversions
• Mini Jumbo 280 Series lamp: Proven 282mm x 95mm x 28mm form factor widely used across the Australian trailer and commercial vehicle market
• ECE approved: All functions certified for legal road use
• IP67 weatherproof: Completely sealed against dust and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Designed for 24V ute tray and commercial vehicle applications:

• Popular aftermarket ute tray bodies on 24V vehicles
• Commercial trucks with tray-body rear lighting requirements
• Any 24V vehicle requiring a plug-and-play tray lamp solution with load resistors

Frequently Asked Questions

Why do I need load resistors in this kit?

Modern 24V commercial vehicles with CAN bus systems or lamp failure monitoring circuits detect the low current draw of LED lamps as a globe failure, causing hyper-flash or dashboard error warnings. The pre-wired load resistors add back the correct electrical load to prevent these issues.

What patch lead do I need to complete the installation?

The required patch lead depends on your specific vehicle make and model. Contact your LED Autolamps retailer to confirm the correct patch lead for your 24V tray vehicle.

Is this kit suitable for 12V vehicles?

The 280ARWM2LR24/450 is specifically listed as 24V in the SKU and title. A 12V equivalent may be available confirm with your retailer if a 12V version is required.

What does the DT04-6P connector do?

The DT04-6P is an industry-standard Deutsch DT connector that connects this lamp kit to the applicable vehicle patch lead, providing a secure, weather-sealed plug-and-play connection without cutting or splicing vehicle wiring.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
