LED Autolamps 280ARWM2LR12/450 Stop/Tail/Reverse LED Light Kit Male Plugs 12v

12V Mini Jumbo Ute Tray Combination Lamp Kit Load Resistors, DT04-6P Plug, Suits Patch Lead System.

Product Overview

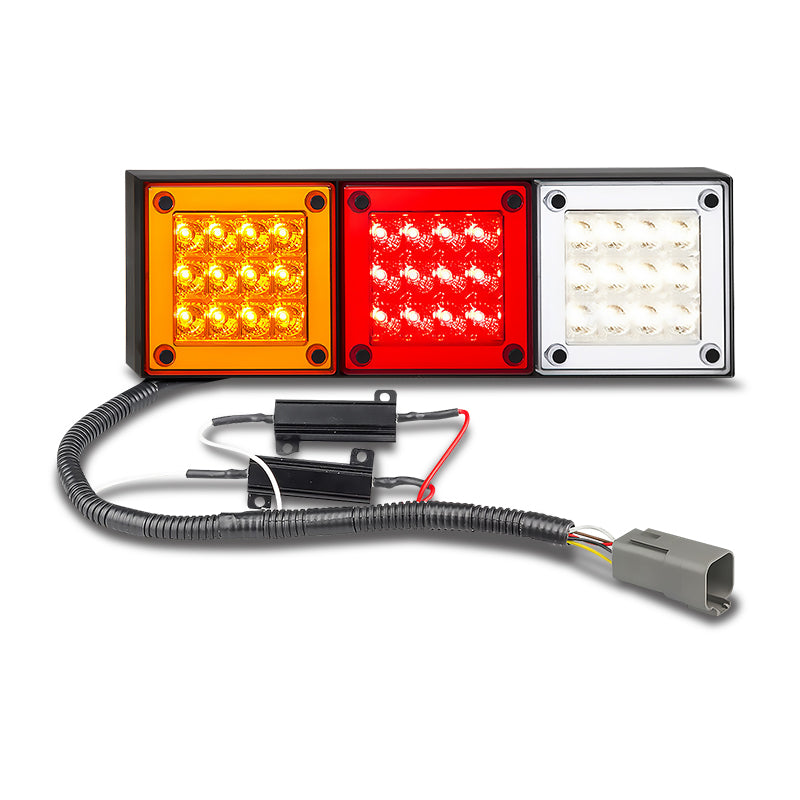

The LED Autolamps 280ARWM2LR12/450 is a 12V ready-to-connect ute tray combination lamp kit, pairing the popular 280 Series Mini Jumbo stop/tail/indicator/reverse lamp with pre-wired load resistors and a DT04-6P male connector the 12V equivalent of the 280ARWM2LR24/450. Designed to suit the LED Autolamps patch lead system and fit most popular brands of vehicle trays, this kit simplifies 12V tray vehicle rear lamp installation by including the resistors and plug already wired in combine with the applicable patch lead to complete the connection.

The two pre-wired load resistors prevent hyper-flash and dashboard error warnings that occur on modern 12V vehicles with CAN bus lamp monitoring when LED lamps replace incandescent globes. The DT04-6P plug connects directly to the patch lead for a secure, weather-sealed plug-and-play installation. IP67 rated, ECE approved, and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Lamp functions: Stop, tail, indicator, reverse
• Voltage: 12V only
• Lamp dimensions: 282mm x 95mm x 28mm
• Connector: DT04-6P male
• Load resistors: Pre-wired (2 x 12V)
• Loom length: Approx. 450mm
• Application: Ute tray suits patch lead system
• IP rating: IP67
• Compliance: ECE approved
• Warranty: 5 years
• Brand: LED Autolamps
• SKU: 280ARWM2LR12/450

Features & Benefits

• Purpose-built for ute tray patch lead system: Designed to integrate directly with the LED Autolamps patch lead system for plug-and-play tray vehicle rear lamp installation
• Pre-wired load resistors: Two load resistors prevent hyper-flash and indicator fault warnings on modern 12V vehicles with CAN bus or lamp failure monitoring
• DT04-6P male connector: Deutsch DT connector for secure, weather-sealed connection to the applicable patch lead
• 12V only: Specifically configured for 12V passenger vehicles, ute tray conversions, and light commercial applications
• Mini Jumbo 280 Series lamp: Proven 282mm x 95mm x 28mm four-function form factor
• ECE approved: All functions certified for legal road use
• IP67 weatherproof: Completely sealed against dust and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Designed for 12V ute tray and light commercial vehicle applications:

• Popular aftermarket ute tray bodies on 12V vehicles
• Light commercial trucks with tray-body rear lighting requirements
• Any 12V vehicle requiring a plug-and-play tray lamp solution with load resistors

Frequently Asked Questions

Why do I need load resistors in this kit?

Modern 12V vehicles with CAN bus systems or lamp failure monitoring circuits detect the low current draw of LED lamps as a globe failure, causing hyper-flash or dashboard error warnings. The pre-wired load resistors add back the correct electrical load to prevent these issues.

What patch lead do I need to complete the installation?

The required patch lead depends on your specific vehicle make and model. Contact your LED Autolamps retailer to confirm the correct patch lead for your 12V tray vehicle.

What is the difference between this kit and the 280ARWM2LR24/450?

Both are 280 Series Mini Jumbo tray lamp kits with load resistors and DT04-6P connectors. The 280ARWM2LR12/450 is 12V only while the 280ARWM2LR24/450 is 24V. Choose based on your vehicle's electrical system voltage.

Is this the same lamp as the 280ARWMB?

Both use the 280 Series Mini Jumbo lamp. The 280ARWMB is the lamp only (single bulk unit) while the 280ARWM2LR12/450 includes the pre-wired loom, load resistors, and DT04-6P connector for patch lead system integration.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
