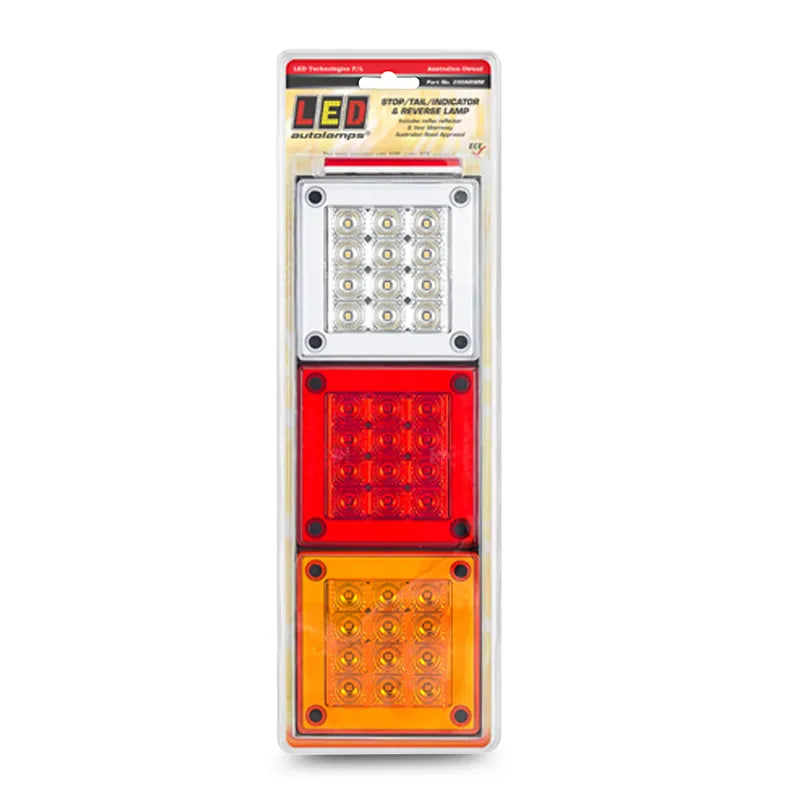

LED Autolamps 280ARWM 12/24V 280 Mini Jumbo Stop/Tail/Indicator/Reverse LED Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 280ARWM 12/24V 280 Mini Jumbo Stop/Tail/Indicator/Reverse LED Blister Pack

SKU: 280ARWM
Price
$129
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 280ARWM 12-24V Mini Jumbo Stop Tail Indicator and Reverse Combination Lamp 282mm x 95mm x 28mm 1.2m Cable Acrylic Lens ABS Housing ADR Approved CTA060088 IP67

The LED Autolamps 280ARWM is a 12-24V Mini Jumbo LED stop/tail/indicator/reverse combination lamp in a 282mm x 95mm x 28mm ABS housing with acrylic lens, 1.2m pre-wired cable. ADR approved (CTA060088), IP67 waterproof. Current draw at 13.8V: stop 0.15A, tail 0.02A, indicator 0.14A, reverse 0.17A. Five-year warranty. Sold individually.

Product overview

The 280ARWM extends the 280ARRM stop/tail/indicator combination lamp by adding a reverse function, covering four primary rear lighting functions in a single 282mm Mini Jumbo unit. Individual ADR compliance is confirmed for each function stop/tail ADR R1-S1-02, indicator ADR 2A-E9-01, and reverse ADR AR-E9-00 alongside the primary CTA060088 approval. The acrylic lens provides durable optical performance. The 1.2m pre-wired cable suits trailer and commercial vehicle installations with longer harness runs. 12-24V compatible. IP67 rated.

Features and benefits

Stop, tail, indicator, and reverse in one unit: Four-function Mini Jumbo combination lamp for complete rear lighting coverage.

1.2m pre-wired cable: Extended cable length for trailer and commercial vehicle installations with longer harness runs.

Acrylic lens: Durable lens material for outdoor transport environments.

ABS housing.

282mm x 95mm x 28mm Mini Jumbo format.

ADR approved (CTA060088) with individual function compliance: Stop/tail ADR R1-S1-02, indicator ADR 2A-E9-01, reverse ADR AR-E9-00.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 280ARWM
Brand LED Autolamps
Series 280 Mini Jumbo
Type Stop/tail/indicator/reverse combination lamp
Light Type LED
Housing Material ABS
Lens Material Acrylic
Operating Voltage 12V to 24V
Current Draw (Stop) 0.15A at 13.8V
Current Draw (Tail) 0.02A at 13.8V
Current Draw (Indicator) 0.14A at 13.8V
Current Draw (Reverse) 0.17A at 13.8V
Mount Type Surface mount
Connector Pre-wired, 1.2m cable
Dimensions 282mm x 95mm x 28mm
Waterproof Rating IP67
ADR Compliance CTA060088
ADR Stop/Tail ADR R1-S1-02
ADR Indicator ADR 2A-E9-01
ADR Reverse ADR AR-E9-00
Weight 0.6kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 280ARWM ADR approved?

Yes. The 280ARWM holds ADR approval CTA060088 with individual compliance references for stop/tail (ADR R1-S1-02), indicator (ADR 2A-E9-01), and reverse (ADR AR-E9-00), confirming compliance for road use in Australia across all four functions.

What is the difference between the 280ARWM and the 280ARRM?

The 280ARWM adds a reverse function to the stop/tail/indicator coverage of the 280ARRM. Both share the same 282mm x 95mm x 28mm dimensions, 1.2m cable, and ADR CTA060088 approval. Choose the 280ARWM where reverse lamp output is required from the same combination lamp unit.

What is the current draw of the 280ARWM?

At 13.8V: stop draws 0.15A, tail draws 0.02A, indicator draws 0.14A, and reverse draws 0.17A per lamp.

What voltage does the 280ARWM operate on?

The 280ARWM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.

Is the 280ARWM sold as a single unit or a pair?

Sold individually.
