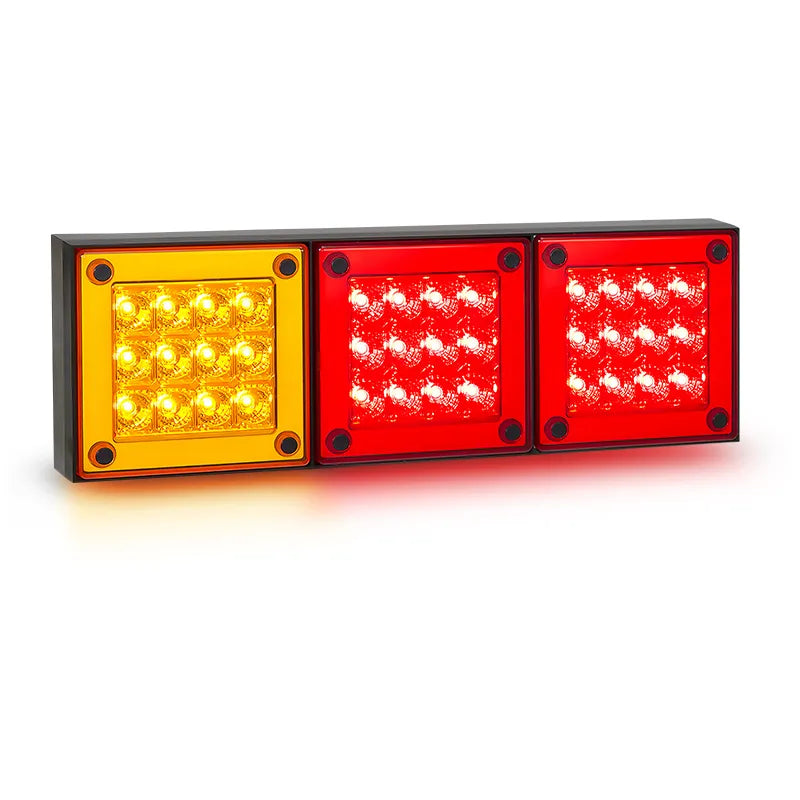

LED Autolamps 280ARRMB 280 Mini Jumbo Stop/Tail/Indicator LED 12/24V 40cm Cable

SKU: 280ARRMB
Price
$195
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Mini Jumbo Stop/Tail/Indicator 36 LEDs, Individually Replaceable Modules, ADR/ECE Approved, 12/24V.

Product Overview

The LED Autolamps 280ARRMB is the stop/tail/indicator version of the 280 Series Mini Jumbo rear combination lamp the three-function variant without reverse. With 36 LEDs total (24 for stop/tail and 12 for indicator), the 280ARRMB delivers bright, consistent output across all three functions in the proven 282mm x 95mm x 28mm Mini Jumbo form factor.

A key advantage of the 280 Series is the individually mountable module design. Each module can be individually surface mounted and used as a replacement lamp module for 280 Series Triple Combination Lamps. The modules also serve as replacement lenses for 280 and 420 Series Lamps, reducing maintenance costs by allowing individual module replacement rather than replacing the entire assembly.

Key Specifications

  • Functions: Stop, tail, indicator (no reverse)
  • LED count: 36 (24 stop/tail, 12 indicator)
  • Dimensions: 282mm x 95mm x 28mm
  • Individual module dimensions: 91mm x 91mm x 20mm
  • Centre-to-centre mounting: 116mm
  • Cable: 40cm (supplier stated see Red-Flags note)
  • Mount type: Surface mount stainless steel bolts, horizontal
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR and ECE approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 280ARRMB

Features & Benefits

  • Individually replaceable modules: Each module can be individually surface mounted or used as a replacement lamp module for 280 and 420 Series assemblies reducing maintenance cost when a single module fails
  • 36 LEDs: 24 LEDs for stop/tail and 12 LEDs for indicator for bright, consistent output
  • Three-function no reverse: Stop, tail, and indicator without reverse suited to applications where reverse is provided separately
  • ADR and ECE approved: Legal for all three functions on Australian road vehicles
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 280ARRMB
Brand LED Autolamps
Series 280 Series Mini Jumbo
Functions Stop, Tail, Indicator (no reverse)
LED Count 36 (24 stop/tail, 12 indicator)
Overall Dimensions 282mm x 95mm x 28mm
Module Dimensions 91mm x 91mm x 20mm
Centre-to-Centre 116mm
Cable Length 40cm (supplier stated verify with retailer)
Mount Type Horizontal surface mount stainless steel bolts
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ADR and ECE approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles also suits as replacement modules for:

  • LED Autolamps 280 Series Triple Combination Lamps
  • LED Autolamps 420 Series Lamps

Frequently Asked Questions

Does this lamp include a reverse function?

No the 280ARRMB is stop/tail/indicator only. For the version with reverse, refer to the 280ARWMB.

Can the individual lamp modules be replaced separately?

Yes each module is individually surface mountable and can be used as a replacement module for 280 Series Triple Combination Lamps.

What other lamp series does this module suit as a replacement?

The 280 Series modules can be used as replacement lenses for 280 and 420 Series Lamps.

How many LEDs does the 280ARRMB have?

36 LEDs total 24 for stop/tail and 12 for indicator.
