LED Autolamps 280ARRM 12/24V 280 Mini Jumbo Stop/Tail/Indicator Lamp Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

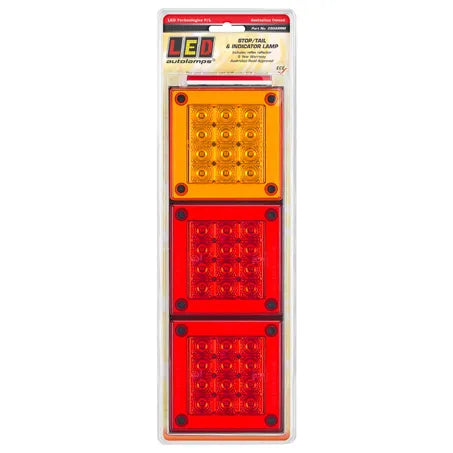

LED Autolamps 280ARRM 12/24V 280 Mini Jumbo Stop/Tail/Indicator Lamp Blister Pack

SKU: 280ARRM
Price
$127
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 280ARRM 12-24V Mini Jumbo Stop Tail and Indicator Combination Lamp 282mm x 95mm x 28mm 1.2m Cable 116mm Mounting Centres ADR Approved CTA060088 IP67

The LED Autolamps 280ARRM is a 12-24V Mini Jumbo LED stop/tail/indicator combination lamp in a 282mm x 95mm x 28mm housing with 1.2m pre-wired cable and 116mm mounting centres. ADR approved (CTA060088), ECE approved (stop/tail ECE R1-S1-02, indicator ECE 2A-E9-01), IP67 waterproof, surface mount. Current draw at 13.8V: stop 0.3A, tail 0.04A, indicator 0.14A. Five-year warranty. Sold individually.

Product overview

The 280ARRM is a 282mm Mini Jumbo combination lamp with a longer 1.2m pre-wired cable suited to trailer and commercial vehicle rear panel installations where a longer lead is required from the lamp to the wiring harness connection point. ADR compliance CTA060088 and individual ECE compliance references for stop/tail and indicator functions confirm road-legal use in Australia. 116mm mounting centres. 12-24V compatible. IP67 rated.

The confirmed current draw at 13.8V provides useful reference for circuit planning: stop 0.3A, tail 0.04A, and indicator 0.14A per lamp.

Features and benefits

Stop, tail, and indicator in one unit: Three-function Mini Jumbo combination lamp.

1.2m pre-wired cable: Extended cable length for trailer and commercial vehicle installations with longer harness runs.

282mm x 95mm x 28mm housing: Mini Jumbo format suited to trailer rear panel installations.

116mm mounting centres: Confirmed fixing point spacing for accurate panel preparation.

ADR approved (CTA060088) and ECE approved: Dual compliance confirmation for road use in Australia.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 280ARRM
Brand LED Autolamps
Series 280 Mini Jumbo
Type Stop/tail/indicator combination lamp
Light Type LED
Operating Voltage 12V to 24V
Current Draw (Stop) 0.3A at 13.8V
Current Draw (Tail) 0.04A at 13.8V
Current Draw (Indicator) 0.14A at 13.8V
Mount Type Surface mount
Connector Pre-wired, 1.2m cable
Mounting Centres 116mm
Dimensions 282mm x 95mm x 28mm
Waterproof Rating IP67
ADR Compliance CTA060088
ECE Stop/Tail ECE R1-S1-02
ECE Indicator ECE 2A-E9-01
Weight 0.6kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 280ARRM ADR and ECE approved?

Yes. The 280ARRM holds ADR approval CTA060088, with ECE compliance for stop/tail (ECE R1-S1-02) and indicator (ECE 2A-E9-01), confirming dual compliance for road use in Australia.

What is the cable length on the 280ARRM?

The 280ARRM is fitted with 1.2 metres of pre-wired cable for connection at the installation point.

What are the mounting centres on the 280ARRM?

The 280ARRM has 116mm mounting centres between fixing points. Confirm this suits your panel cutout before purchasing.

What is the current draw of the 280ARRM?

At 13.8V: stop draws 0.3A, tail draws 0.04A, and indicator draws 0.14A per lamp.

Is the 280ARRM sold as a single unit or a pair?

Sold individually.
