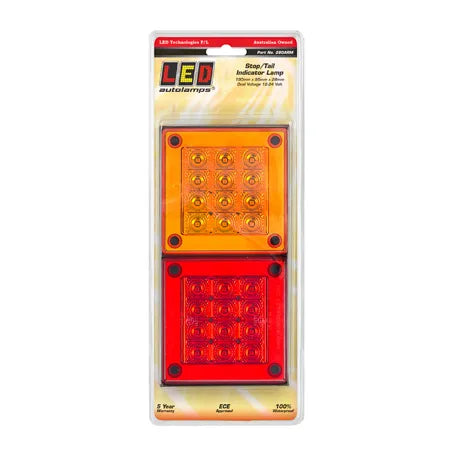

LED Autolamps 280ARM Multi Volt Stop/Tail/Indicator Lamp 190x95x28mm Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 280ARM Multi Volt Stop/Tail/Indicator Lamp 190x95x28mm Blister

SKU: 280ARM
Price
$139
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved Stop/Tail/Indicator Lamp with Individual Lens Replacements 190x95mm, IP67

Product Overview

The LED Autolamps 280ARM is a 12/24V rear combination lamp covering stop, tail, and indicator functions in a 190mm x 95mm x 28mm surface-mount unit a more compact width than the 280ARWM and 280ARRM. The individual lens replacement feature allows each lens section to be swapped independently without replacing the full assembly, reducing maintenance costs and downtime in the field.

ECE road approved and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • Individual lens replacements — each lens section can be replaced independently without replacing the full lamp assembly
  • High-brightness LEDs — strong, consistent stop, tail, and indicator output
  • Compact 190mm form factor — narrower than the 280mm Mini Jumbo series; suited to trailer and truck bodies where a shorter lamp is required
  • ECE road approved — meets international road approval standards for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 280ARM
Lamp Type Stop / Tail / Indicator
Voltage Range 12V / 24V
Dimensions 190mm x 95mm x 28mm
Lens Individual replacements
Mounting Surface mount
Protection Rating IP67
Compliance ECE
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring a compact rear combination lamp with serviceable lenses
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ECE-approved stop/tail/indicator lighting
  • LED Autolamps 280ARRM (same 280 series, wider 282mm format)
  • LED Autolamps 280AM amber replacement lamp unit (same 280 series)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 280ARM approved for road use in Australia?

Yes. The LED Autolamps 280ARM is ECE road approved, meeting international road approval standards accepted for legal on-road use in Australia.

What does individual lens replacement mean for maintenance?

Each lens section in the assembly can be replaced independently — so if one lens is cracked or damaged, only that section needs replacing rather than the entire lamp unit, saving cost and minimising downtime.

How does the 280ARM differ from the 280ARRM?

The 280ARM measures 190mm x 95mm, while the 280ARRM is the wider 282mm Mini Jumbo format. Both cover stop, tail, and indicator functions with ECE approval — choose based on the lamp width required for your application.

What is the IP rating on the 280ARM?

The 280ARM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 280ARM carry?

The 280ARM is backed by a 5-year warranty from LED Autolamps.
