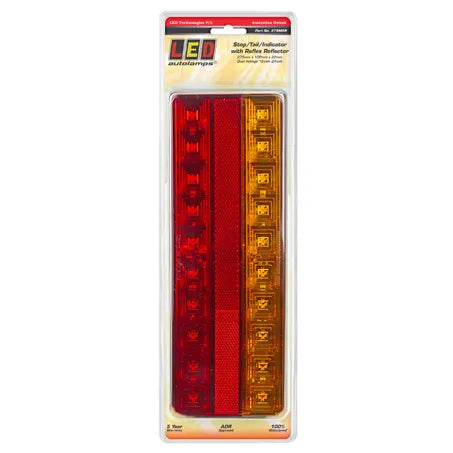

LED Autolamps 275MAR 12/24V LED Stop/Tail/Indicator/Reflector 28cm Cable Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 275MAR 12/24V LED Stop/Tail/Indicator/Reflector 28cm Cable Blister

SKU: 275MAR
Price
$99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Stop/Tail/Indicator/Reflector Lamp 275mm, PMMA Lens, ABS Base, IP67

Product Overview

The LED Autolamps 275MAR is a 12/24V rear combination lamp covering stop, tail, indicator, and integrated reflex reflector functions in a 275mm x 100mm x 22mm surface-mount unit. The PMMA (acrylic) lens provides good optical clarity and UV resistance, while the ABS base keeps the housing lightweight and impact-resistant. Supplied with a 28cm pre-wired cable and ADR road approved.

IP67 rated and backed by a 5-year warranty.

Features & Benefits

  • Stop, tail, indicator, and reflex reflector in one lamp — four functions in a single 275mm unit
  • Inbuilt reflex reflector — integrated passive reflective element for additional rear visibility and compliance
  • PMMA lens — UV-resistant acrylic optical material for good clarity and long-term durability
  • ABS base — lightweight, impact-resistant thermoplastic housing
  • 28cm pre-wired cable — ready to connect straight out of the blister pack
  • ADR road approved — meets Australian Design Rules for legal on-road use across all functions
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 275MAR
Lamp Type Stop / Tail / Indicator / Reflector
Voltage Range 12V / 24V
Dimensions 275mm x 100mm x 22mm
Cable Length 280mm
Lens Material PMMA (acrylic)
Base Material ABS
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Compliance ADR
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring a wide-format rear combination lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved rear combination lighting
  • LED Autolamps 275ARWM (same 275 series form factor, adds reverse function)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 275MAR approved for road use in Australia?

Yes. The LED Autolamps 275MAR is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across stop, tail, indicator, and reflector functions.

What is PMMA and why is it used for the lens?

PMMA (polymethyl methacrylate), commonly known as acrylic, offers good optical clarity, UV resistance, and impact resistance — a practical choice for outdoor trailer lamp lenses that need to withstand sun exposure and road debris over time.

How does the 275MAR differ from the 275ARWM?

The 275ARWM includes a reverse function in addition to stop, tail, indicator, and reflector. The 275MAR covers stop, tail, indicator, and reflector only. Both share the same 275mm x 100mm x 22mm form factor.

What is the IP rating on the 275MAR?

The 275MAR is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 275MAR carry?

The 275MAR is backed by a 5-year warranty from LED Autolamps.
