LED Autolamps 275GARWMB Multi Volt Rear Combination LED Lamp Grey Housing Base
Click to open expanded view
LED AUTOLAMPS logo

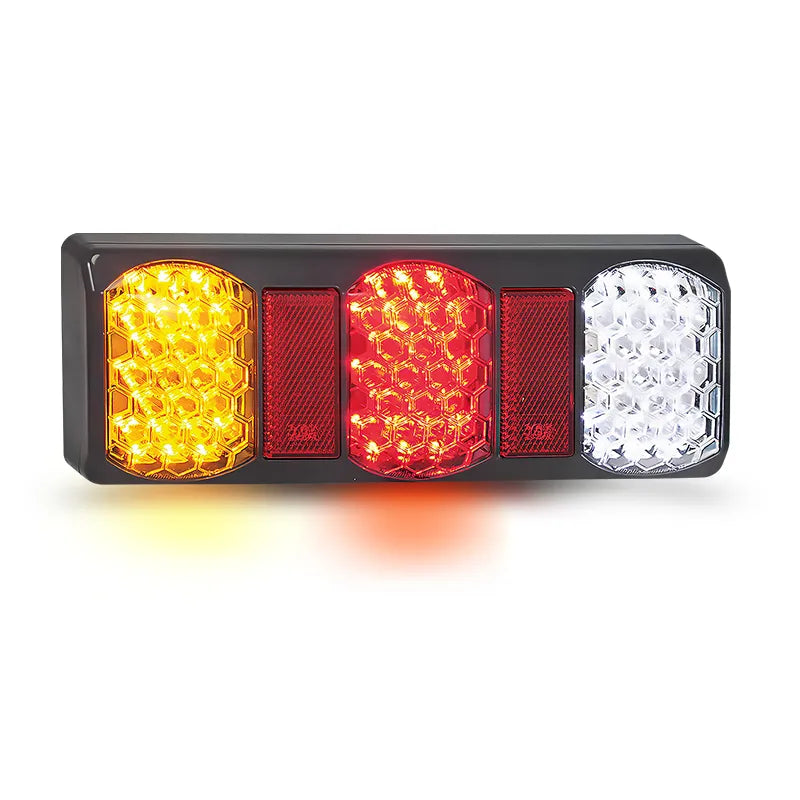

LED Autolamps 275GARWMB Multi Volt Rear Combination LED Lamp Grey Housing Base

SKU: 275GARWMB
Price
$240
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

275 Triple Series Grey Housing Stop/Tail/Indicator/Reverse 30 LEDs, Inbuilt Reflectors, ADR Approved, 12/24V.

Product Overview

The LED Autolamps 275GARWMB is the grey housing stop/tail/indicator/reverse version of the 275 Triple Series rear combination lamp the bulk single-unit supply. The 275GARWM is a genuine LED Autolamps combination lamp delivering stop, tail, indicator, and reverse functions with high brightness LEDs, ADR approval, IP67 waterproofing, 12/24V compatibility, and inbuilt reflectors for maximum visibility.

The 275 Series features 30 high-brightness LEDs with current draw across functions of: Stop 0.21A, Tail 0.34A, Indicator 0.12A, Reverse 0.23A all at 13.8V. The grey housing base provides a neutral, low-profile appearance suited to applications where a non-black, non-chrome housing finish is preferred. The "B" suffix denotes bulk single-unit supply without retail blister packaging. Measuring 275mm x 100mm x 33mm, mounts horizontally with bolts through a 10mm hole. Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Functions: Stop, tail, indicator, reverse
  • LED count: 30
  • Housing: Grey
  • Dimensions: 275mm x 100mm x 33mm
  • Inbuilt reflectors: Yes
  • Mount type: Horizontal surface mount bolts through 10mm hole
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Current draw: Stop 0.21A / Tail 0.34A / Indicator 0.12A / Reverse 0.23A @ 13.8V
  • Compliance: ADR approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 275GARWMB

Features & Benefits

  • Grey housing: Neutral grey base suited to applications where black or chrome housing is not preferred
  • Four-function combination: Stop, tail, indicator, and reverse in a single 275mm unit
  • 30 high-brightness LEDs: High LED count for bright, consistent output across all four functions
  • Inbuilt reflectors: In-built reflectors add an extra layer of safety, ensuring maximum visibility day or night
  • ADR approved: Legal for all four functions on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 275GARWMB
Brand LED Autolamps
Series 275 Triple Series
Functions Stop, Tail, Indicator, Reverse
LED Count 30
Housing Grey
Dimensions 275mm x 100mm x 33mm
Inbuilt Reflectors Yes
Mount Type Horizontal surface mount bolts, 10mm hole
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Current Draw Stop 0.21A @ 13.8V
Current Draw Tail 0.34A @ 13.8V
Current Draw Indicator 0.12A @ 13.8V
Current Draw Reverse 0.23A @ 13.8V
Compliance ADR approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles:

  • Tray vehicles and ute conversions
  • Caravans and camper trailers
  • Commercial trucks and trailers
  • Agricultural applications

Frequently Asked Questions

What is the difference between the 275GARWMB and the 275ARWM?

Both are 275 Triple Series stop/tail/indicator/reverse lamps. The 275GARWMB has a grey housing and is supplied as a single bulk unit. The 275ARWM is the standard housing version in single blister packaging.

How many LEDs does the 275GARWMB have?

30 high-brightness LEDs distributed across the four functions.

What current does this lamp draw?

Stop 0.21A, Tail 0.34A, Indicator 0.12A, Reverse 0.23A all at 13.8V (12V system).

How is this lamp mounted?

Horizontally mount onto flat surface using bolts in back of lamp, run wire and plug through 10mm hole. Indicator faces up. Refer to ADR 13/00 for mounting requirements.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
