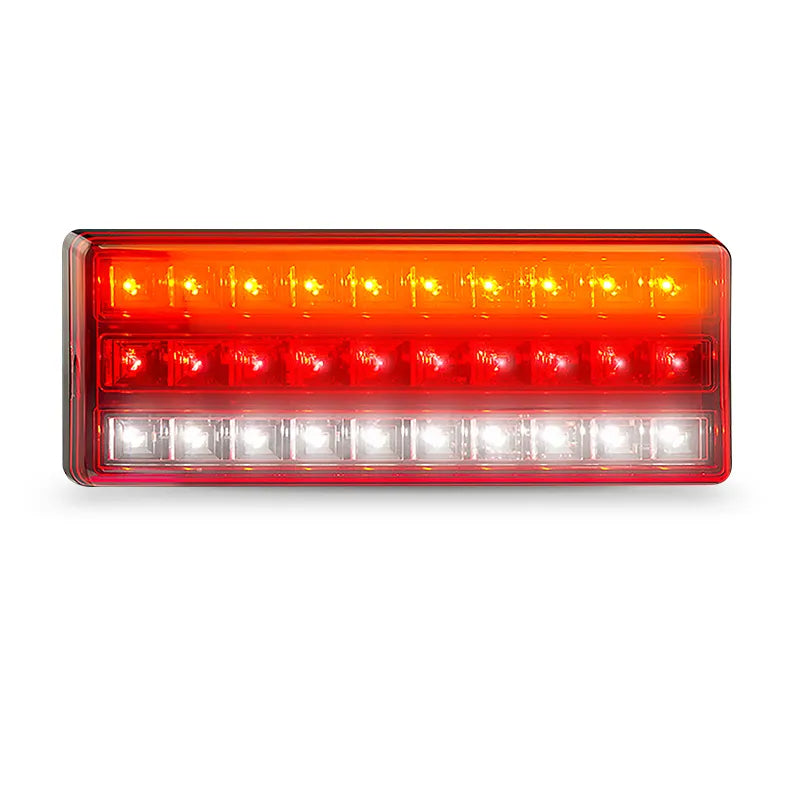

LED Autolamps 275ARWMB 275 Series Rear Combination Lamp
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 275ARWMB 275 Series Rear Combination Lamp

SKU: 275ARWMB
Price
$130
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

275 Series Stop/Tail/Indicator/Reverse 30 LEDs, ECE/ADR Approved, 12/24V, Single Bulk Unit.

Product Overview

The LED Autolamps 275ARWMB is the bulk single-unit version of the 275 Series stop/tail/indicator/reverse rear combination lamp one of LED Autolamps' most widely specified combination lamps across Australian trailer, caravan, and commercial vehicle applications. Measuring 275mm x 100mm x 22mm, the standard 275 Series is 11mm slimmer than the 275 Triple Series (33mm deep), making it a lower-profile alternative for installations where depth is a consideration.

The 275ARWM features 30 high-brightness LEDs with current draw of Stop 0.21A, Tail 0.34A, Indicator 0.12A, Reverse 0.23A at 13.8V and 0.1A, 0.02A, 0.06A, 0.1A respectively at 28V. ECE/ADR approved, IP67 rated, and backed by LED Autolamps' 5-year warranty. Indicator at top when mounting horizontally. Supplied as a single bulk unit without retail blister packaging.

Key Specifications

  • Functions: Stop, tail, indicator, reverse
  • LED count: 30
  • Dimensions: 275mm x 100mm x 22mm
  • Mount type: Horizontal surface mount bolts through hole in fixing surface, indicator at top
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Current draw: Stop 0.21A / Tail 0.34A / Indicator 0.12A / Reverse 0.23A @ 13.8V
  • Compliance: ECE/ADR approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 275ARWMB

Features & Benefits

  • 30 high-brightness LEDs: High LED count for bright, consistent output across all four functions
  • 22mm low-profile depth: Slimmer than the 275 Triple Series (33mm) for installations where depth clearance is a consideration
  • Four-function combination: Stop, tail, indicator, and reverse in a single 275mm unit
  • ECE/ADR approved: Legal for all four functions on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 275ARWMB
Brand LED Autolamps
Series 275 Series
Functions Stop, Tail, Indicator, Reverse
LED Count 30
Dimensions 275mm x 100mm x 22mm
Mount Type Horizontal surface mount bolts, indicator at top
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Current Draw Stop 0.21A @ 13.8V / 0.1A @ 28V
Current Draw Tail 0.34A @ 13.8V / 0.02A @ 28V
Current Draw Indicator 0.12A @ 13.8V / 0.06A @ 28V
Current Draw Reverse 0.23A @ 13.8V / 0.1A @ 28V
Compliance ECE/ADR approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles:

  • Tray vehicles and ute conversions
  • Caravans and camper trailers
  • Commercial trucks and trailers

Frequently Asked Questions

What is the difference between the 275ARWMB and the 275GARWMB?

The 275ARWMB is the standard 275 Series (22mm deep) while the 275GARWMB is the 275 Triple Series (33mm deep) with a grey housing. Both are stop/tail/indicator/reverse bulk single units.

How many LEDs does the 275ARWMB have?

30 high-brightness LEDs distributed across the four functions.

Does the indicator face up or down when mounting?

Indicator at top when mounting horizontally as specified in the LED Autolamps 275 Series installation instructions.

What current does this lamp draw?

Stop 0.21A, Tail 0.34A, Indicator 0.12A, Reverse 0.23A at 13.8V.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
