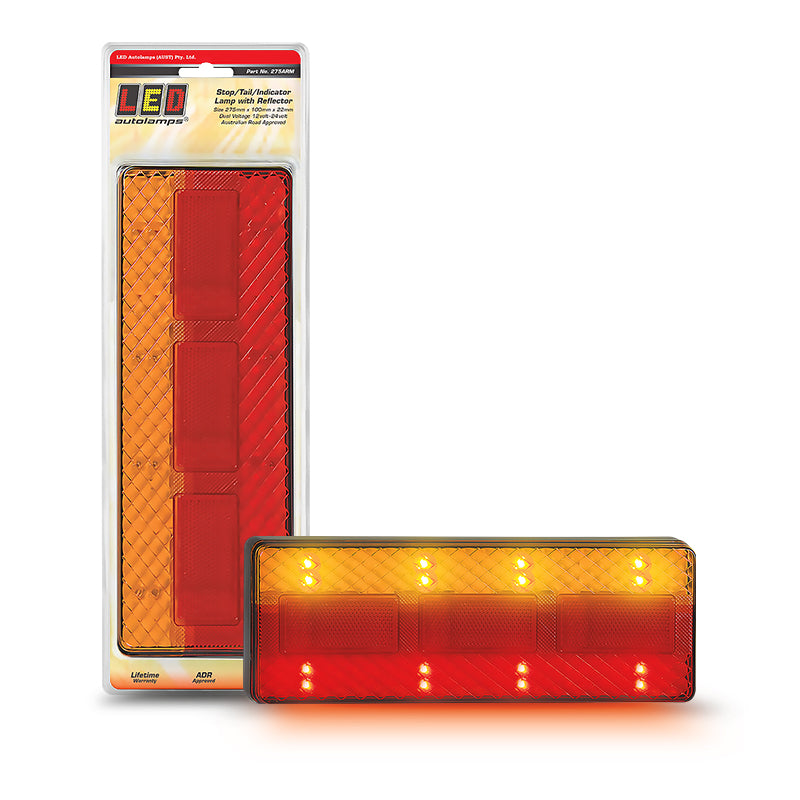

LED Autolamps 275ARW 12V Stop/Tail/Indicator/Reverse Light 275x100mm Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 275ARW 12V Stop/Tail/Indicator/Reverse Light 275x100mm Blister

SKU: 275ARW
Price
$127
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V Stop/Tail/Indicator/Reverse Combination Lamp 30 LEDs, ECE/ADR Approved, IP67, Single Blister.

Product Overview

The LED Autolamps 275ARW is the 12V only version of the 275 Series stop/tail/indicator/reverse rear combination lamp the single blister version for 12V passenger vehicles, trailers, and caravans. Featuring 30 high-brightness LEDs with current draw of Stop 0.21A, Tail 0.34A, Indicator 0.12A, Reverse 0.23A at 13.8V, the 275ARW shares the same proven 275mm x 100mm x 22mm form factor, ECE/ADR approval, and IP67 rating as the 12/24V multivolt 275ARWM but is specifically configured for 12V systems only.

Mount horizontally with the indicator at the top, using bolts in the back of the lamp, run wire through hole in fixing surface. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.

Key Specifications

  • Functions: Stop, tail, indicator, reverse
  • LED count: 30
  • Dimensions: 275mm x 100mm x 22mm
  • Mount type: Horizontal surface mount bolts, indicator at top
  • IP rating: IP67
  • Input voltage: 12V only
  • Current draw: Stop 0.21A / Tail 0.34A / Indicator 0.12A / Reverse 0.23A @ 13.8V
  • Compliance: ECE/ADR approved
  • Warranty: 5 years
  • Pack quantity: Single unit blister pack
  • Brand: LED Autolamps
  • SKU: 275ARW

Features & Benefits

  • 12V only: Specifically configured for 12V passenger vehicle, caravan, and trailer applications
  • 30 high-brightness LEDs: High LED count for bright, consistent output across all four functions
  • Four-function combination: Stop, tail, indicator, and reverse in a single 275mm unit
  • ECE/ADR approved: Legal for all four functions on Australian road vehicles and trailers
  • 22mm slim profile: Low-profile design for neat installation on trailer rear panels
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 275ARW
Brand LED Autolamps
Series 275 Series
Functions Stop, Tail, Indicator, Reverse
LED Count 30
Dimensions 275mm x 100mm x 22mm
Mount Type Horizontal surface mount bolts, indicator at top
IP Rating IP67
Input Voltage 12V only
Current Draw Stop 0.21A @ 13.8V
Current Draw Tail 0.34A @ 13.8V
Current Draw Indicator 0.12A @ 13.8V
Current Draw Reverse 0.23A @ 13.8V
Compliance ECE/ADR approved
Warranty 5 Years
Pack Quantity Single unit blister pack

Compatible With

Suits 12V trailers, caravans, and vehicles:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light commercial vehicles and 4WDs

Frequently Asked Questions

Is this lamp 12V or 24V?

The 275ARW is 12V only. For the 12/24V multivolt version, refer to the 275ARWM (single blister) or 275ARWMB (single bulk).

How many LEDs does the 275ARW have?

30 high-brightness LEDs across all four functions.

What current does this lamp draw?

Stop 0.21A, Tail 0.34A, Indicator 0.12A, Reverse 0.23A all at 13.8V.

Does the indicator face up or down when mounting?

Indicator at top when mounting horizontally as specified in LED Autolamps 275 Series installation instructions.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure.
