Product features

275 G2 Series Stop/Tail/Indicator with Inbuilt Reflector Diamond Lens, Black PCB, Lifetime Warranty, 12/24V.

Product Overview

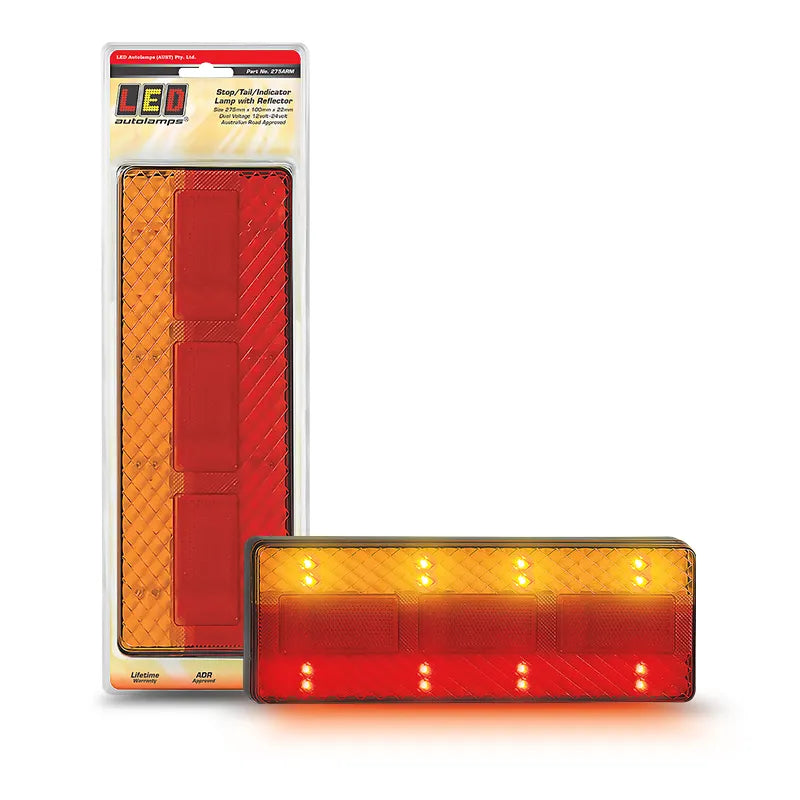

The LED Autolamps 275ARM is a premium rear combination lamp from the 275 G2 Series one of the most highly specified combination lamps in the LED Autolamps range. Featuring a distinctive diamond lens pattern, black PCB, resin sealed circuitry, inbuilt reflex reflector, and LED Autolamps' industry-leading lifetime warranty, the 275ARM delivers stop, tail, and indicator functions in the proven 275mm x 100mm x 22mm form factor.

The 275ARM provides three functions stop, tail, and indicator with an inbuilt reflex reflector without a reverse lamp. For the version with reverse, refer to the 275ARWM (standard series) or 275ARWMB. ADR approved (CRN 38657/38658), IP67 rated, 12V and 24V compatible, stainless steel bolt mounting, and a 28cm pre-wired cable. Compatible with the MFBKT multi-fit bracket (sold separately). Supplied as a single unit in blister packaging.

Key Specifications

  • Functions: Stop, tail, indicator, inbuilt reflex reflector (no reverse)
  • Lens: Diamond lens pattern
  • PCB: Black
  • Dimensions: 275mm x 100mm x 22mm
  • Cable: 28cm
  • Mount type: Horizontal surface mount stainless steel bolts, indicator at top
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • ADR compliance: CRN 38657/38658
  • Warranty: Lifetime
  • Pack quantity: Single unit blister pack
  • Brand: LED Autolamps
  • SKU: 275ARM

Features & Benefits

  • Lifetime warranty: LED Autolamps' premium lifetime warranty significantly exceeding the standard 5-year warranty on most other combination lamps in the range
  • Diamond lens pattern: Premium G2 Series optical design for distinctive, high-visibility lamp output
  • Black PCB: Premium internal PCB construction with resin sealed circuitry for superior durability and moisture protection
  • Inbuilt reflex reflector: Combined active LED output and passive reflective compliance in a single unit
  • Stop, tail, and indicator: Three-function combination without reverse suited to applications where reverse is provided separately
  • Compatible with MFBKT: Works with the LED Autolamps multi-fit bracket for tray vehicle applications
  • Stainless steel fittings: Corrosion-resistant mounting hardware
  • ADR approved CRN 38657/38658: Dual ADR compliance for broad legal coverage
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks

Technical Specs

Specification Detail
SKU 275ARM
Brand LED Autolamps
Series 275 G2 Series
Functions Stop, Tail, Indicator, Inbuilt Reflex Reflector
Lens Diamond Lens Pattern
PCB Black
Dimensions 275mm x 100mm x 22mm
Cable Length 28cm
Mount Type Horizontal surface mount stainless steel bolts, indicator at top
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance CRN 38657/38658
Warranty Lifetime
Pack Quantity Single unit blister pack

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring premium ADR-compliant combination rear lighting:

  • Tray vehicles and ute conversions
  • Caravans and camper trailers
  • Commercial trucks and trailers

Frequently Asked Questions

Does the 275ARM include a reverse function?

No the 275ARM provides stop, tail, indicator, and inbuilt reflex reflector functions only. For the version with reverse, refer to the 275ARWM or 275ARWMB.

What is the warranty on the 275ARM?

The 275ARM carries LED Autolamps' lifetime warranty significantly exceeding the standard 5-year warranty on most other combination lamps in the range.

What makes this a G2 Series lamp?

The 275 G2 Series features a premium diamond lens pattern, black PCB with resin sealed circuitry, and lifetime warranty differentiating it from the standard 275 Series with its conventional lens design and 5-year warranty.

What are the ADR compliance codes for this lamp?

The 275ARM is ADR approved under CRN 38657 and CRN 38658.
