12V Slimline Recessed Indicator Lamp Amber Lens, 3mm Depth, ECE Approved, IP67.

Product Overview

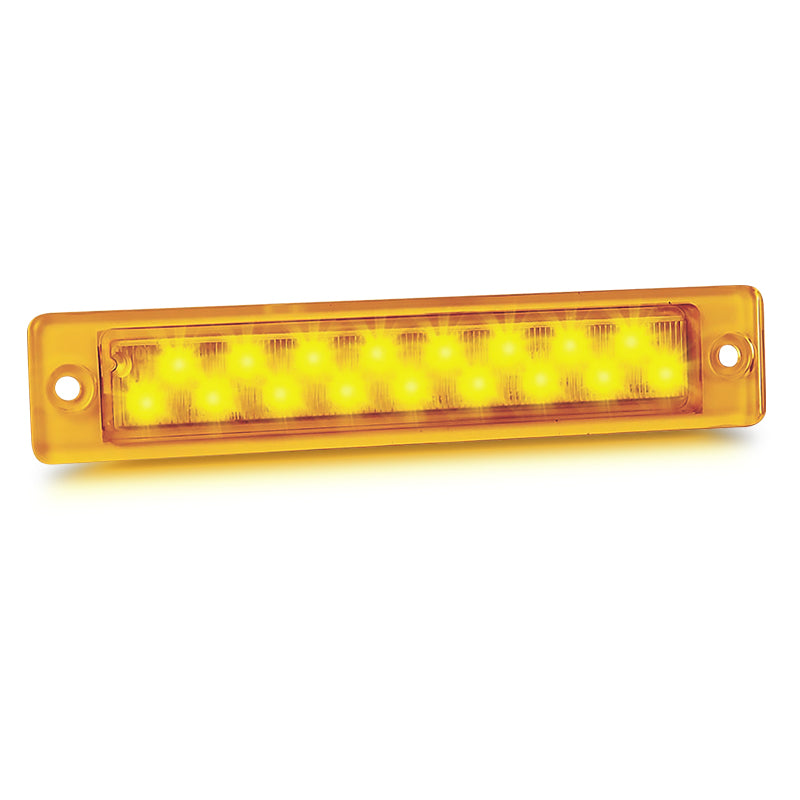

The LED Autolamps 25A12 is a 12V amber indicator lamp from the 25 Series the amber lens indicator completing the 25 Series range alongside the red 25R12 (stop/tail) and clear 25W12 (reverse). At just 3mm deep and 130mm x 25mm, the 25A12 provides flush recessed amber indicator output in one of the most compact and low-profile lamp formats available.

ECE approved under E9 01 2a 6021, IP67 rated, and drawing 0.2A at 12V. Mount horizontally onto a flat surface, push the lamp into a 106mm x 19mm cutout in the mounting surface, and fix with screws supplied at both ends. 12V only. Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: Amber indicator
  • Lens: Amber
  • Current draw: 0.2A @ 12V
  • Dimensions: 130mm x 25mm x 3mm
  • Cutout required: 106mm x 19mm
  • Mount type: Recessed push into cutout, screw fix at both ends
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: ECE E9 01 2a 6021
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 25A12

Features & Benefits

  • Amber indicator: ECE-approved amber indicator output in the ultra-slim 25 Series recessed strip format
  • Ultra-slim 3mm depth: At just 3mm, the 25A12 fits flush into installations with minimal depth clearance behind the panel
  • Recessed mount: Pushes into 106mm x 19mm cutout and fixes with screws at both ends for a clean, flush appearance
  • ECE approved E9 01 2a 6021: Certified for indicator use on Australian and international road vehicles and trailers
  • 0.2A current draw: Low electrical load on the indicator circuit at 12V
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V only: Direct 12V compatibility for trailers, caravans, and light commercial vehicles
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 25A12
Brand LED Autolamps
Series 25 Series
Function Amber Indicator
Lens Amber
Current Draw 0.2A @ 12V
Dimensions 130mm x 25mm x 3mm
Cutout Required 106mm x 19mm
Mount Type Recessed push into cutout, screw fix at both ends
IP Rating IP67
Input Voltage 12V only
ECE Compliance E9 01 2a 6021
Warranty 5 Years

Compatible With

Suits 12V trailers, caravans, and vehicles requiring an ultra-slim recessed amber indicator:

  • Caravans and motorhomes with limited depth clearance at the rear panel
  • Trailer rear panels where flush, low-profile indicator output is required
  • Applications using the 25 Series form factor across stop/tail, indicator, and reverse functions

Frequently Asked Questions

What cutout size does this lamp require?

The 25A12 fits into a 106mm x 19mm cutout consistent with all 25 Series lamps.

Is this lamp ECE approved?

Yes the 25A12 is ECE approved under E9 01 2a 6021 for indicator use on road vehicles and trailers.

How does the 25A12 differ from the 25R12 and 25W12?

All three are from the 25 Series in the same 130mm x 25mm x 3mm recessed format. The 25A12 is an amber indicator, the 25R12 is a red stop/tail lamp, and the 25W12 is a clear reverse lamp. Using all three together provides a complete recessed lighting solution in the 25 Series format.

What is the current draw of this lamp?

0.2A at 12V a low electrical load suited to standard 12V indicator circuits.
