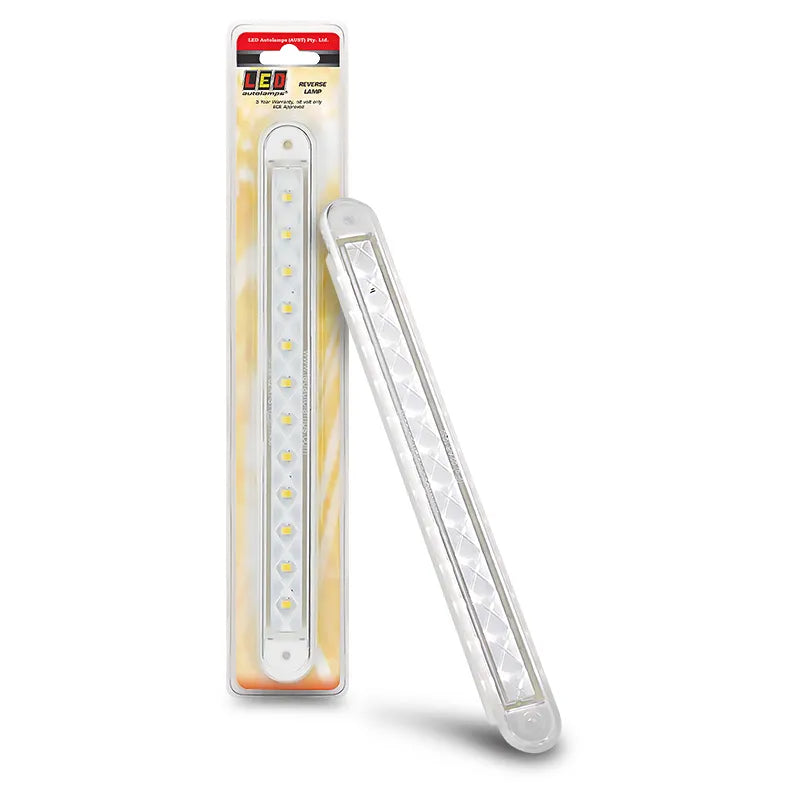

LED Autolamps 235W24E Reverse Light 12 LED 24V 237X25X18Mm Recessed Mount
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 235W24E Reverse Light 12 LED 24V 237X25X18Mm Recessed Mount

SKU: 235W24E
Price
$93
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

24V Slimline Recessed Reverse Light 235 Series, Clear Lens, 12 LEDs, ADR/ECE Approved, IP67.

Product Overview

The LED Autolamps 235W24E is a 24V slimline recessed reverse light from the versatile 235 Series one of the widest single-function slimline lamp series in the LED Autolamps range. The 235W24E is 24V only, with a clear lens and white LEDs, slimline low-profile recessed design, screw-secured mounting, ADR approved, and a 5-year warranty.

The 235W24E comes with a 40cm cable and measures 237mm x 25mm x 3mm (lamp module depth) the 18mm figure in the product title refers to the overall installed depth including the mounting grommet. Recessed mount with surface mount brackets also available. Fit by mounting onto a flat surface, pushing lamp and grommet into a 203mm x 19mm cutout, running wires through the back, and fixing with screws. Refer to ADR 13/00 for mounting instructions.

Key Specifications

  • Function: Reverse (white LED)
  • LED count: 12
  • Lens: Clear
  • Dimensions: 237mm x 25mm x 3mm (lamp module)
  • Installed depth with grommet: Approx. 18mm
  • Cutout required: 203mm x 19mm
  • Cable: 40cm
  • Mount type: Recessed push into cutout, screw fix. Surface mount brackets available separately
  • IP rating: IP67
  • Input voltage: 24V only
  • Compliance: ADR/ECE approved
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 235W24E

Features & Benefits

  • 24V only: Designed specifically for 24V truck, bus, and commercial trailer applications
  • Slimline recessed design: At just 3mm deep (lamp module), the 235W24E sits flush within the mounting surface for a clean, professional appearance
  • 12 white LEDs: Clear lens with 12 internal white LED squares for bright, wide reverse lamp output
  • ADR/ECE approved: Certified for reverse lamp use on Australian and international road vehicles
  • Surface mount brackets available: Optional surface mount brackets allow the 235W24E to be mounted without a cutout (sold separately)
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 40cm cable: Sufficient cable length for most installation configurations
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 235W24E
Brand LED Autolamps
Series 235 Series
Function Reverse (white LED)
LED Count 12
Lens Clear
Lamp Module Dimensions 237mm x 25mm x 3mm
Installed Depth (with grommet) Approx. 18mm
Cutout Required 203mm x 19mm
Cable Length 40cm
Mount Type Recessed (surface mount brackets available)
IP Rating IP67
Input Voltage 24V only
Compliance ADR/ECE approved
Warranty 5 Years

Compatible With

Suits all 24V trucks, trailers, and commercial vehicles requiring a slimline recessed reverse lamp:

  • 24V rigid truck and semi-trailer rear panels
  • Bus and coach rear lighting systems
  • Commercial trailer builders using the 235 Series modular format

Frequently Asked Questions

Is this lamp 12V or 24V?

The 235W24E is 24V only. The supplier features "12 Volt or 24 Volt" is a general 235 Series range statement. For the 12V equivalent, refer to the 235W12E.

What cutout size does this lamp require?

The 235W24E requires a 203mm x 19mm cutout in the mounting surface for recessed installation.

Can this lamp be surface mounted instead of recessed?

Yes surface mount brackets are available separately for applications where a recessed cutout is not possible or practical.

What are the actual lamp dimensions?

The lamp module measures 237mm x 25mm x 3mm. The 18mm figure in the product title refers to the overall installed depth including the grommet.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 24V compatibility before purchasing. Contact the seller if you're unsure.
