LED Autolamps 235CR12 12V Stop/Tail Strip Lamp Clear Lens No Bracket
Click to open expanded view
LED AUTOLAMPS logo

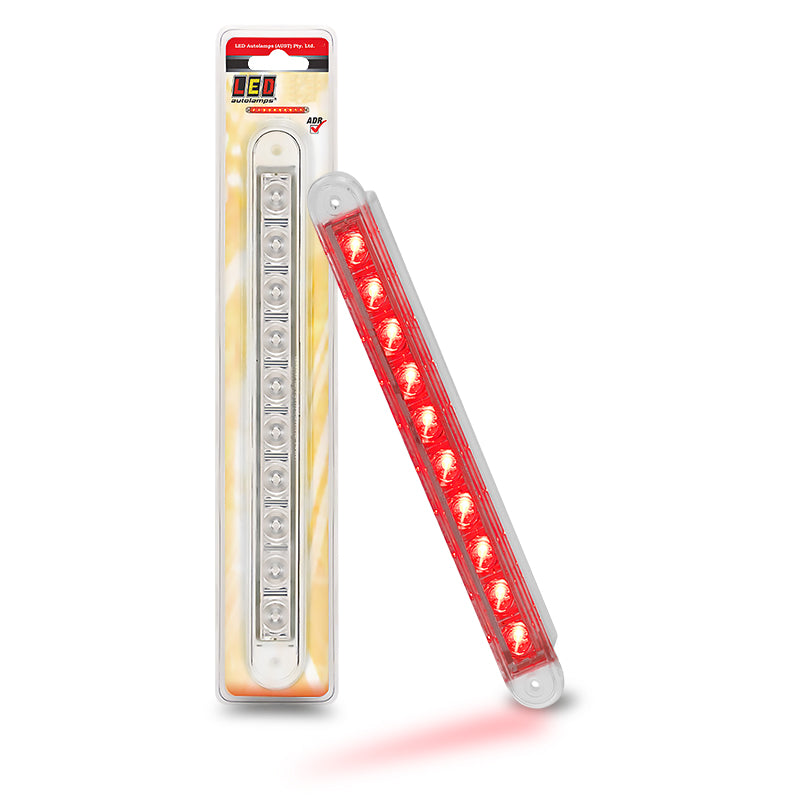

LED Autolamps 235CR12 12V Stop/Tail Strip Lamp Clear Lens No Bracket

SKU: 235CR12
Price
$65
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V Slimline Recessed Stop/Tail Lamp Clear Lens, ADR/ECE Approved, IP67, 237mm.

Product Overview

The LED Autolamps 235CR12 is a 12V stop/tail lamp from the 235 Series the clear lens variant of the 235 Series stop/tail in 12V. The "C" in the SKU denotes clear lens, "R" denotes stop/tail (red function), and "12" confirms 12V. The clear lens version uses internal red LEDs to produce stop and tail output, providing a modern clean lens appearance compared to the traditional red tinted lens of the 235R12.

Measuring 237mm x 25mm x 3mm, the 235CR12 recesses into a 203mm x 19mm cutout for a flush installation on truck and trailer rear panels. ADR/ECE approved, IP67 rated, and supplied with a 40cm cable. Surface mount brackets available separately. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

Key Specifications

  • Function: Stop and tail
  • Lens: Clear (internal red LEDs)
  • Dimensions: 237mm x 25mm x 3mm (lamp module)
  • Cutout required: 203mm x 19mm
  • Cable: 40cm
  • Mount type: Recessed push into cutout with grommet, screw fix. Surface mount brackets available separately
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: ADR/ECE approved
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 235CR12

Features & Benefits

  • Clear lens with internal red LEDs: Modern clean lens design provides a sleek appearance while delivering compliant red stop and tail output avoids UV fading associated with tinted lenses
  • 12V only: Designed for 12V trailer, caravan, and light commercial vehicle applications
  • Slimline recessed design: 3mm lamp module depth for flush, professional installation
  • ADR/ECE approved: Legal for stop and tail use on Australian road vehicles and trailers
  • Surface mount brackets available: Optional brackets for non-recessed applications
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 40cm cable: Pre-wired for straightforward installation
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 235CR12
Brand LED Autolamps
Series 235 Series
Function Stop and Tail
Lens Clear (internal red LEDs)
Lamp Module Dimensions 237mm x 25mm x 3mm
Cutout Required 203mm x 19mm
Cable Length 40cm
Mount Type Recessed (surface mount brackets available)
IP Rating IP67
Input Voltage 12V only
Compliance ADR/ECE approved
Warranty 5 Years

Compatible With

Suits 12V trailers, caravans, and vehicles requiring slimline recessed stop/tail lighting:

  • 12V rigid trailer and caravan rear panels
  • Light commercial vehicle rear lighting
  • Tray vehicle and ute builds in the 235 Series format

Frequently Asked Questions

Is this lamp 12V or 24V?

The 235CR12 is 12V only confirmed by the "12" in the SKU. For the 24V clear lens stop/tail, refer to the 235RC24E.

What is the difference between the 235CR12 and the 235R12?

Both are 12V stop/tail lamps in the 235 Series. The 235CR12 has a clear lens with internal red LEDs while the 235R12 has a traditional red tinted lens. The clear lens provides a modern clean appearance.

What cutout size does this lamp require?

The 235CR12 requires a 203mm x 19mm cutout for recessed installation.

Can this lamp be surface mounted?

Yes surface mount brackets are available separately for applications where a recessed cutout is not practical.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure.
