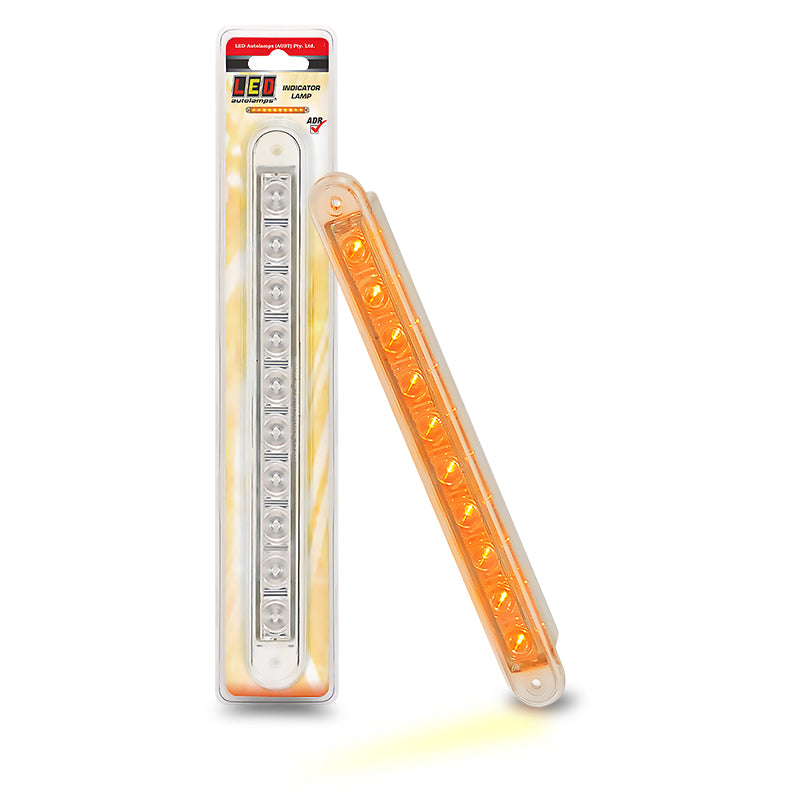

LED Autolamps 235CAT1 indicator strip in its pack, with a second strip shown lit amber
LED Autolamps 235CAT1 indicator strip in its pack, with a second strip shown lit amber
LED Autolamps 235CAT1 Clear Lens Front Indicator Strip Lamp 12V
LED Autolamps 235CAT1 Clear Lens Front Indicator Strip Lamp 12V
LED Autolamps 235CAT1 Clear Lens Front Indicator Strip Lamp 12V
LED Autolamps 235CAT1 Clear Lens Front Indicator Strip Lamp 12V
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 235CAT1 Clear Lens Front Indicator Strip Lamp 12V

SKU: 235CAT1
Price
$51.95
Recommended retail price
$66.00
Difference from recommended retail price
$14 below RRP
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
LED Autolamps 235CAT1 indicator strip in its pack, with a second strip shown lit amber

LED Autolamps 235CAT1 Clear Lens Front Indicator Strip Lamp 12V

$51.95
Recommended retail price
$66.00
Difference from recommended retail price
$14 below RRP

Product features

The LED Autolamps 235CAT1 is a 12V slimline front direction indicator that recesses into a 203 x 19mm cutout, with a clear lens, 10 LEDs and ADR Category 1 approval.

Bull bars, tray fronts and trailer drawbars rarely have room for a bulky indicator. At 3mm proud of the panel, this strip sits nearly flush and is hard to knock off on the track.

Install notes

Mount it horizontally on a flat surface. Push the lamp and grommet into the cutout, run the wires through the back and fix with screws. Refer to ADR 13/00 for placement. For panels where cutting is not an option, LED Autolamps offers surface mount brackets in chrome (235B1C) and black (235B1B), sold separately.

It is 12 volt only, so it does not suit 24V trucks.

Specifications

Function Front direction indicator, Category 1
Size 237 x 25 x 3mm
Cutout 203 x 19mm
LED quantity 10
Lens Hardened acrylic, clear
Voltage 12V only
Current draw 0.19A at 13.8V
Cable 40cm
Rating IP67
Approvals ADR 6/00 Cat 1, CRN 44226

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Will it run on 24 volts?

No. LED Autolamps rates the 235CAT1 for 12 volt only.

Can it be surface mounted?

Yes, with the separate 235B1C chrome or 235B1B black bracket.

Which way does it mount?

Horizontally, on a flat surface, pushed into a 203 x 19mm cutout with its grommet and fixed with screws.

Is the 235CAT1 waterproof?

It is rated IP67, which means dust tight and protected against temporary immersion in water.

Is the 235CAT1 road legal in Australia?

It is listed as approvals: ADR 6/00 Cat 1, CRN 44226. Fit it in the position ADR 13/00 calls for that lamp function.
