LED Autolamps 235CA12 LED Recessed Amber 235Mm
Click to open expanded view
LED AUTOLAMPS logo

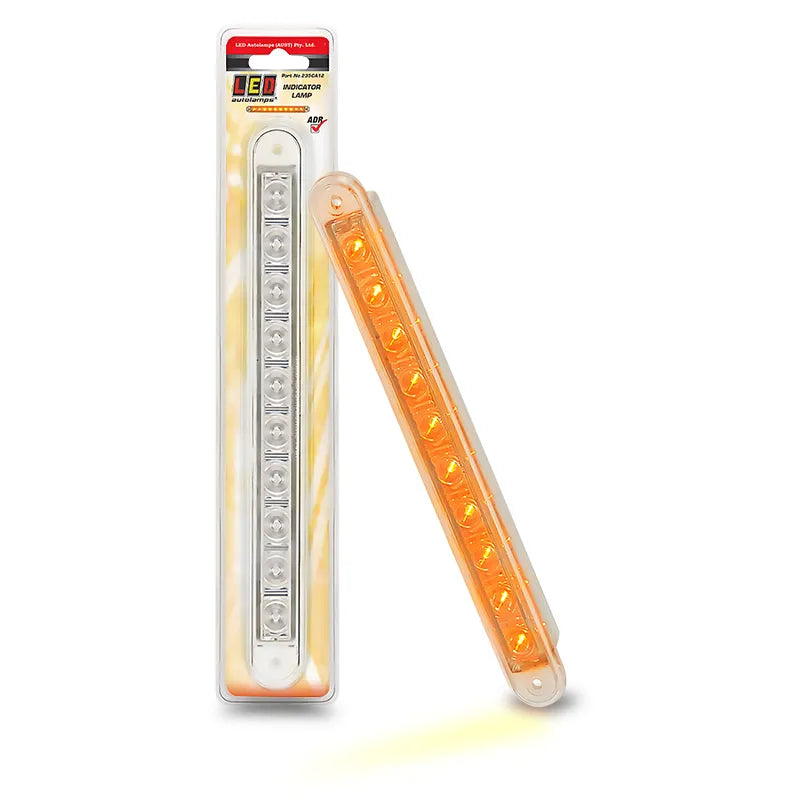

LED Autolamps 235CA12 LED Recessed Amber 235Mm

SKU: 235CA12
Price
$68
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V Recessed Amber Indicator Strip Lamp Clear Lens, 0.14A, ADR Approved, IP67, 237mm.

Product Overview

The LED Autolamps 235CA12 is a 12V amber indicator lamp from the 235 Series the clear lens amber indicator variant for 12V rear indicator applications. The "CA" in the SKU denotes Clear lens with Amber LEDs and "12" confirms 12V. Drawing just 0.14A at 13.8V, the 235CA12 provides a slimline, flush-mount amber indicator solution in the proven 237mm x 25mm x 3mm 235 Series recessed format.

Recesses into a 203mm x 19mm cutout for a clean, professional installation. ADR approved, IP67 rated, and supplied with a 40cm pre-wired cable. Surface mount brackets are available separately for non-recessed applications. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

Key Specifications

  • Function: Amber indicator
  • Lens: Clear with internal amber LEDs
  • Current draw: 0.14A @ 13.8V
  • Dimensions: 237mm x 25mm x 3mm
  • Cutout required: 203mm x 19mm
  • Cable: 40cm
  • Mount type: Recessed flush mount. Surface mount brackets available separately
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: ADR approved
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 235CA12

Features & Benefits

  • Clear lens with amber LEDs: Modern clean lens appearance with internal amber LEDs maintains colour accuracy over time without UV fading from tinted lenses
  • 0.14A current draw: Low electrical load at 12V for efficient indicator circuit operation
  • Slimline recessed 3mm depth: Flush installation for a professional appearance within the mounting surface
  • ADR approved: Legal for amber indicator use on Australian road vehicles and trailers
  • 12V only: Direct 12V compatibility for trailers, caravans, and light commercial vehicles
  • Surface mount brackets available: Optional brackets for applications where recessed installation is not practical
  • 40cm cable: Pre-wired for standard installation configurations
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 235CA12
Brand LED Autolamps
Series 235 Series
Function Amber Indicator
Lens Clear internal amber LEDs
Current Draw 0.14A @ 13.8V
Dimensions 237mm x 25mm x 3mm
Cutout Required 203mm x 19mm
Cable Length 40cm
Mount Type Recessed flush (surface mount brackets available)
IP Rating IP67
Input Voltage 12V only
Compliance ADR approved
Warranty 5 Years

Compatible With

Suits 12V trailers, caravans, and vehicles requiring slimline recessed amber indicator lighting:

  • 12V trailer rear panels
  • Caravans and camper trailers
  • Light commercial vehicle rear lighting
  • Tray vehicle and ute builds in the 235 Series format

Frequently Asked Questions

What is the current draw of this lamp?

The 235CA12 draws 0.14A at 13.8V a low electrical load suited to standard 12V indicator circuits.

Is this lamp 12V or 24V?

The 235CA12 is 12V only confirmed by the "12" in the SKU and supplier specs. For a 24V amber indicator in the 235 Series, refer to the 235CA24.

What cutout size does this lamp require?

The 235CA12 requires a 203mm x 19mm cutout for recessed installation.

Can this lamp be surface mounted?

Yes surface mount brackets are available separately for applications where a recessed cutout is not practical.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure.
