Product features

12V Recessed Stop/Tail/Indicator Combination Strip Lamp Clear Lens, Red & Amber LEDs, ADR/ECE, IP67.

Product Overview

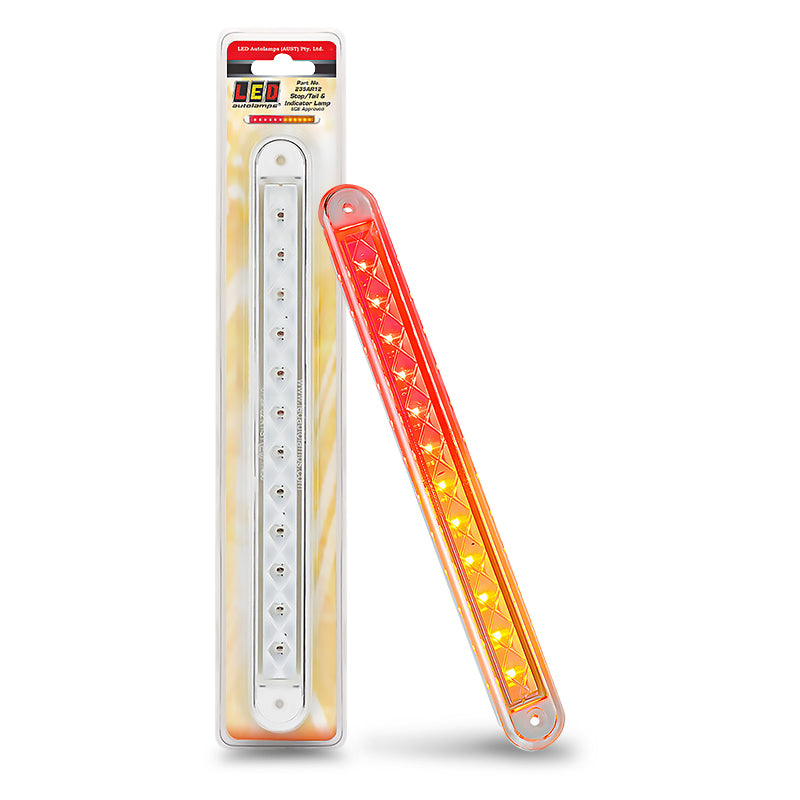

The LED Autolamps 235AR12 is a 12V stop/tail/indicator combination lamp from the 235 Series three functions in a single slimline recessed strip. The 235AR12 provides stop, tail, and indicator output through a clear lens with internal red and amber LEDs, flush mount, ADR approved. Supplying three rear lamp functions in one 237mm x 25mm x 3mm module significantly simplifies trailer and vehicle rear panel wiring by eliminating the need for separate stop/tail and indicator lamps.

The 235AR12 has a 40cm cable, 203mm x 19mm cutout for recessed mounting, IP67 rating, and 5-year warranty. Sold individually in a blister retail pack. Supplied with a white rubber grommet. Surface mount brackets available separately for non-recessed applications.

Key Specifications

  • Functions: Stop, tail, indicator
  • Lens: Clear with internal red and amber LEDs
  • Dimensions: 237mm x 25mm x 3mm
  • Grommet: White rubber (included)
  • Cutout required: 203mm x 19mm
  • Cable: 40cm
  • Mount type: Recessed push into cutout, screw fix. Surface mount brackets available separately
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: ADR/ECE approved
  • Warranty: 5 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 235AR12

Features & Benefits

  • Three functions in one lamp: Stop, tail, and indicator in a single 235 Series strip eliminates the need for separate stop/tail and indicator modules
  • Clear lens with red and amber LEDs: Modern clear lens appearance with internal red LEDs for stop/tail and amber LEDs for indicator no UV lens fading
  • White rubber grommet included: Supplied with white rubber grommet for recessed installation
  • Slimline recessed 3mm depth: Flush installation for a professional appearance
  • ADR/ECE approved: Certified for stop, tail, and indicator use on Australian road vehicles
  • 12V only: Direct 12V compatibility for trailers, caravans, and light commercial vehicles
  • 40cm cable: Pre-wired for standard installation configurations
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 235AR12
Brand LED Autolamps
Series 235 Series
Functions Stop, Tail, Indicator
Lens Clear internal red and amber LEDs
Dimensions 237mm x 25mm x 3mm
Grommet White rubber (included)
Cutout Required 203mm x 19mm
Cable Length 40cm
Mount Type Recessed (surface mount brackets available)
IP Rating IP67
Input Voltage 12V only
Compliance ADR/ECE approved
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Suits 12V trailers, caravans, and vehicles requiring recessed stop/tail/indicator combination lighting:

  • Box trailers and light trailers
  • Caravans and camper trailers
  • Tray vehicles and light commercial vehicles
  • Boat trailers

Frequently Asked Questions

What functions does the 235AR12 provide?

Stop, tail, and indicator three functions in one recessed 235 Series strip lamp.

Is this lamp 12V or 24V?

The 235AR12 is 12V only.

Does the 235AR12 include a reverse function?

No the 235AR12 provides stop, tail, and indicator only. For a reverse lamp to complete the rear lighting set, refer to the 235W12E.

What cutout size does this lamp require?

The 235AR12 requires a 203mm x 19mm cutout for recessed installation.
