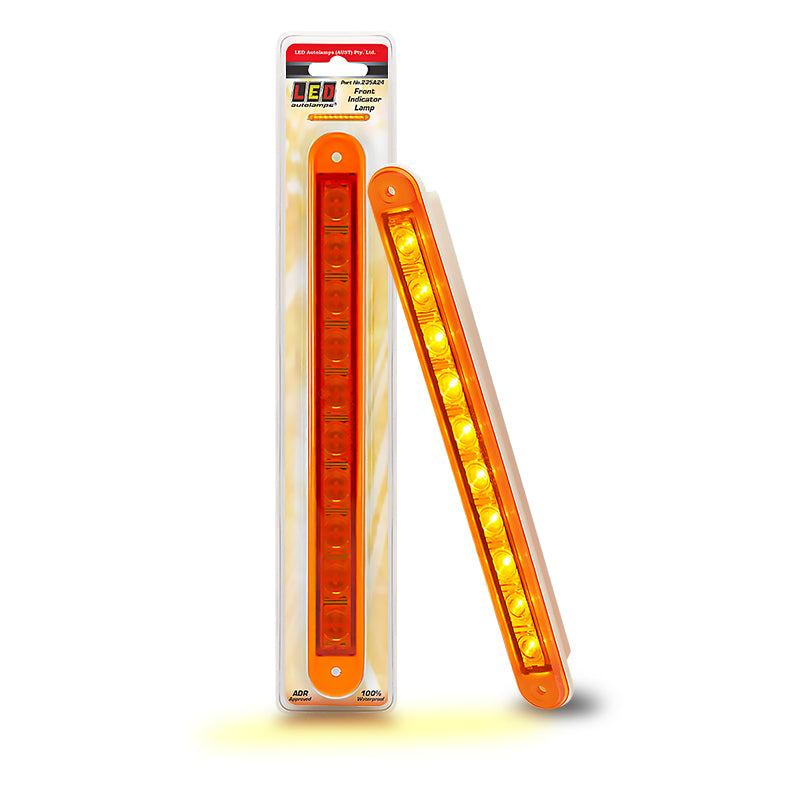

LED Autolamps 235A24 24V Indicator Strip 10 Square Recessed Mount 40cm Hardwired
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 235A24 24V Indicator Strip 10 Square Recessed Mount 40cm Hardwired

SKU: 235A24
Price
$65
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

24V Recessed Amber Indicator Strip Lamp 10 LEDs, ADR Approved, IP67, 237mm.

Product Overview

The LED Autolamps 235A24 is a 24V amber indicator lamp from the 235 Series the 24V version of the 235 Series amber rear indicator, sharing the same 237mm x 25mm x 3mm form factor and 203mm x 19mm cutout as the 12V variants listed throughout this session. With 10 square LEDs and a 40cm hardwired cable, the 235A24 suits 24V trucks, buses, and commercial trailers requiring a slimline recessed amber rear indicator.

ADR approved (CRN 39092 per the OzLED 235 Series 24V indicator listing), IP67 rated, and backed by LED Autolamps' 5-year warranty. Surface mount brackets available separately. Supplied as a single unit.

Key Specifications

  • Function: Amber rear indicator
  • LED count: 10 square LEDs
  • Colour: Amber
  • Dimensions: 237mm x 25mm x 3mm
  • Cutout required: 203mm x 19mm
  • Cable: 40cm hardwired
  • Mount type: Recessed flush mount. Surface mount brackets available separately
  • IP rating: IP67
  • Input voltage: 24V only
  • Compliance: ADR approved CRN 39092
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 235A24

Features & Benefits

  • 24V only: Designed for 24V truck, bus, and commercial trailer applications
  • 10 square LEDs: Amber LED array for bright, consistent rear indicator output
  • Slimline recessed 3mm depth: Flush installation for a professional appearance
  • ADR approved CRN 39092: Certified for amber indicator use on Australian road vehicles
  • Surface mount brackets available: Optional brackets for non-recessed applications
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 40cm hardwired cable: Pre-wired for standard installation configurations
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 235A24
Brand LED Autolamps
Series 235 Series
Function Amber Rear Indicator
LED Count 10 square LEDs
LED Colour Amber
Dimensions 237mm x 25mm x 3mm
Cutout Required 203mm x 19mm
Cable Length 40cm hardwired
Mount Type Recessed flush (surface mount brackets available)
IP Rating IP67
Input Voltage 24V only
ADR Compliance CRN 39092
Warranty 5 Years

Compatible With

Suits 24V trucks, trailers, and commercial vehicles requiring slimline recessed amber indicator lighting:

  • 24V rigid truck and semi-trailer rear panels
  • Bus and coach rear lighting systems
  • Commercial trailer builders using the 235 Series recessed format

Frequently Asked Questions

Is this lamp 12V or 24V?

The 235A24 is 24V only confirmed by the supplier features and the "24" in the SKU. For the 12V equivalent, refer to the 235CA12 (clear lens) or 235A12 (amber lens).

What is the ADR compliance code for this lamp?

CRN 39092 confirmed from the OzLED 235 Series 24V indicator listing as consistent with this SKU.

What cutout size does this lamp require?

The 235A24 requires a 203mm x 19mm cutout for recessed installation.

How many LEDs does this lamp have?

10 square LEDs confirmed from the supplier title and specifications.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 24V compatibility before purchasing. Contact the seller if you're unsure.
