LED Autolamps 23450BLKB Awning Lamp Black 12V 20Cm Cable
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 23450BLKB Awning Lamp Black 12V 20Cm Cable

SKU: 23450BLKB
Price
$86
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V 443mm Caravan Awning Lamp Black Housing, 36 LEDs, 3000K Warm White, 60° Spread, IP67.

Product Overview

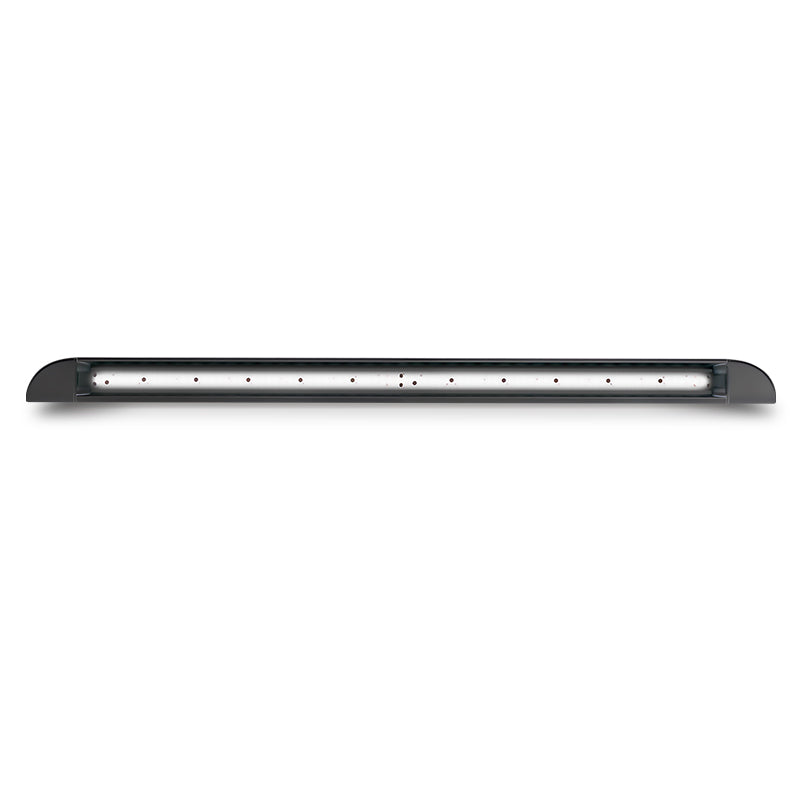

The LED Autolamps 23450BLKB is a 12V 443mm caravan awning lamp from the 23 Series the larger of the two available sizes, featuring 36 LEDs in a black aluminium housing with a 3000K warm white output and 60-degree light spread. The 23450BLKB measures 443mm x 23mm x 24mm and is finished in black. The lamp produces 240 effective lumens from 443mm of warm white LED output, supplied with a 20cm cable.

Installation: remove end caps and fit onto flat surface with screws supplied, then refit end caps. The 3000K warm white output is ideal for outdoor caravan awning and living area lighting where a softer, more ambient tone is preferred over cool white. A silicon polycarbonate lens over durable aluminium housing ensures IP67 weatherproofing for exterior use. Backed by LED Autolamps' 3-year warranty.

Key Specifications

  • LED count: 36
  • Lumen output: 240 effective lumens (443mm)
  • Colour temperature: 3000K warm white
  • Housing: Black aluminium
  • Dimensions: 443mm x 23mm x 24mm
  • Light spread: 60-degree
  • Cable: 20cm
  • Current draw: 0.38A @ 13.8V
  • Mount type: Surface mount remove end caps, screw fix, refit end caps
  • IP rating: IP67
  • Input voltage: 12V only
  • Warranty: 3 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 23450BLKB

Features & Benefits

  • 443mm length: The longer of the two 23 Series sizes, providing broad awning and outdoor area coverage the 260mm version is the 23260BLKB
  • 36 LEDs: High LED count for consistent, warm white illumination across the full 443mm lamp body
  • 3000K warm white: Warm, amber-toned light output ideal for outdoor living and awning lighting where a relaxed, ambient atmosphere is preferred
  • 60-degree light spread: Focused 60-degree angle concentrates light downward for effective awning and outdoor area illumination without excessive scatter
  • Black aluminium housing: Durable aluminium construction with a black finish suits modern caravans and motorhomes
  • Silicon polycarbonate lens: Clear silicon lens for long-term UV resistance and weather protection
  • IP67 weatherproof: Suitable for exterior awning use completely sealed against dust and temporary water immersion
  • 20cm cable: Short fly-lead for connection to the switched power supply; an inline switch or switched circuit is required
  • Surface mount with concealed screws: Remove end caps, screw fix, refit caps for a clean, professional finish
  • 3-year warranty: Backed by LED Autolamps' 3-year warranty

Technical Specs

Specification Detail
SKU 23450BLKB
Brand LED Autolamps
Series 23 Series
LED Count 36
Effective Lumens 240lm
Colour Temperature 3000K warm white
Housing Black aluminium
Dimensions 443mm x 23mm x 24mm
Light Spread 60-degree
Cable Length 20cm
Current Draw 0.38A @ 13.8V
Mount Type Surface mount remove end caps, screw fix, refit caps
IP Rating IP67
Input Voltage 12V only
Warranty 3 Years
Packaging Blister Pack single unit

Compatible With

Suits 12V caravans, motorhomes, and outdoor living applications:

  • Caravan and motorhome awning lighting
  • Outdoor living area and deck lighting
  • Marine cabin and exterior lighting
  • Camper trailer awning and annex lighting

Frequently Asked Questions

Is this lamp 12V or 24V?

The 23450BLKB is 12V only. For the 24V version, refer to the 23450BLK-24.

Does this lamp include a switch?

No the lamp is supplied with a 20cm fly-lead which needs connecting to a switched power supply. A switch or switched circuit must be provided separately.

What colour temperature is this lamp?

3000K warm white. This is a softer, more amber-toned light output that creates a relaxed, ambient atmosphere for outdoor and awning use.

What is the difference between the 23450BLKB and the 23260BLKB?

The 23450BLKB is the 443mm version with 36 LEDs, while the 23260BLKB is the shorter 260mm version with 18 LEDs. Both are black housing, 12V, 3000K warm white.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
