Product features

ADR Approved 12V Stop/Tail/Indicator/Reflector Lamp Fully Submersible, Plug-In Kit Compatible, 5-Year Warranty

Product Overview

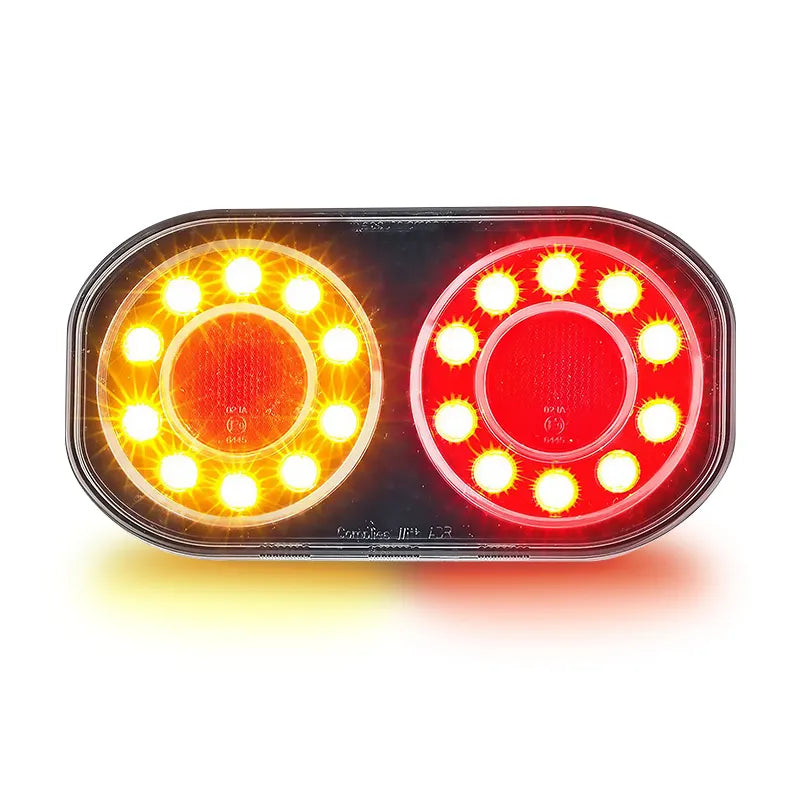

The LED Autolamps 209GAR4P is a 12V rear combination lamp covering stop, tail, indicator, and reflector functions in a single 210mm x 110mm x 28mm surface-mount unit. Specified as fully submersible, it goes beyond standard IP67 waterproofing suited to boat trailers, agricultural equipment, and applications where full water submersion is likely.

Compatible with LED Autolamps' plug-in cable kit system, with an 8-metre kit available for longer trailer installations. ADR approved and backed by a 5-year warranty.

Features & Benefits

  • Fully submersible — engineered for full water submersion beyond standard IP67; ideal for boat trailers, agricultural, and wash-down applications
  • Plug-in cable kit compatible — compatible with LED Autolamps' plug-in cable kit for faster, tool-free wiring connections
  • 8-metre cable kit available — long cable kit option available for larger trailers; confirm part number with F.A.E.
  • Stop, tail, indicator, and reflector in one lamp — four functions in a single compact unit, reducing wiring and installation complexity
  • ADR approved — meets Australian Design Rules for legal on-road use across all functions
  • IP67 rated — fully sealed against dust and water immersion
  • 12V only — designed for 12V trailer and vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 209GAR4P
Lamp Type Stop / Tail / Indicator / Reflector
Voltage 12V
Dimensions 210mm x 110mm x 28mm
Mounting Surface mount
Protection Rating IP67 (fully submersible)
Compliance ADR
Cable Kit Plug-in compatible; 8m kit available
Warranty 5 years

Compatible With / Goes Well With

  • Boat trailers, agricultural trailers, and equipment requiring fully submersible rear combination lighting
  • Trailers requiring longer cable runs — 8m kit available
  • LED Autolamps plug-in cable kit system (confirm compatible cable kit with F.A.E.)
  • LED Autolamps 207BARLP2 and 207BARL4P (similar submersible rear combination lamp family)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 209GAR4P approved for road use in Australia?

Yes. The LED Autolamps 209GAR4P is ADR approved, meeting Australian Design Rules requirements for legal on-road use across stop, tail, indicator, and reflector functions.

What does fully submersible mean beyond IP67?

IP67 covers water immersion up to 1 metre for 30 minutes. The 209GAR4P is specified as fully submersible, meaning it is engineered to withstand extended submersion — suitable for boat trailers and agricultural applications where full water exposure is common.

What is the 8-metre cable kit?

An optional 8-metre plug-in cable kit is available for trailer installations where standard cable lengths are insufficient. Contact F.A.E. to confirm the compatible cable kit part number.

Is the 209GAR4P compatible with 24V systems?

No. The 209GAR4P is a 12V-only lamp and is not rated for 24V applications.

What warranty does the 209GAR4P carry?

The 209GAR4P is backed by a 5-year warranty from LED Autolamps.
