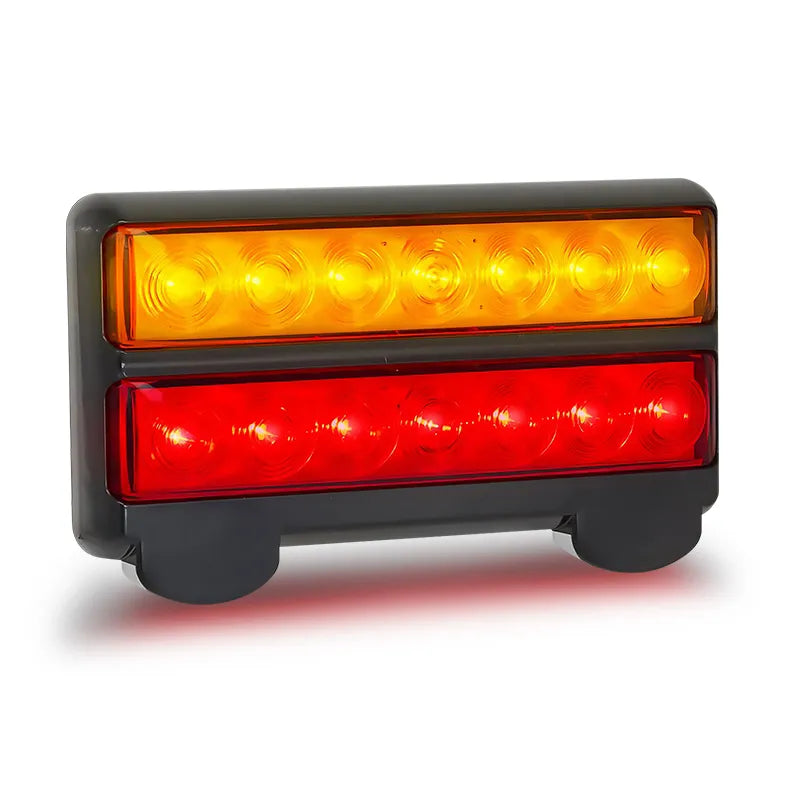

LED Autolamps 207BARL4P 12V Stop/Tail/Indicator Light Licence Plate 14 Square
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 207BARL4P 12V Stop/Tail/Indicator Light Licence Plate 14 Square

SKU: 207BARL4P
Price
$134
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 12V Stop/Tail/Indicator/Licence Plate Lamp 14 Square LEDs, Fully Submersible, IP67

Product Overview

The LED Autolamps 207BARL4P is a 12V rear combination lamp covering stop, tail, indicator, and licence plate functions in a single 200mm x 92mm x 28mm surface-mount unit. Fitted with 14 square LEDs and specified as fully submersible, it goes beyond standard IP67 waterproofing suited to trailer and vehicle applications where full water submersion is a real possibility.

The integrated licence plate lamp eliminates the need for a separate fitting. Compatible with LED Autolamps' plug-in cable kit system, and ADR road approved. Backed by a 5-year warranty.

Features & Benefits

  • Integrated licence plate lamp — eliminates the need for a separate licence plate light, reducing components and simplifying wiring
  • 14 square LEDs — distinctive square LED array delivering stop, tail, and indicator output across the 200mm lamp face
  • Fully submersible — exceeds standard IP67 requirements; engineered for applications where full water submersion may occur
  • Plug-in cable kit compatible — compatible with LED Autolamps' plug-in cable kit system for cleaner, faster installation
  • ADR road approved — meets Australian Design Rules for legal on-road use across all functions
  • IP67 rated — fully sealed against dust and water immersion
  • 12V only — designed for 12V trailer and vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 207BARL4P
Lamp Type Stop / Tail / Indicator / Licence Plate
LED Configuration 14 square LEDs
Voltage 12V
Dimensions 200mm x 92mm x 28mm
Mounting Surface mount
Protection Rating IP67 (fully submersible)
Compliance ADR
Warranty 5 years
Weight 0.4 kg

Compatible With / Goes Well With

  • Trailers and light vehicles requiring a wide-format 12V rear combination lamp with integrated licence plate
  • LED Autolamps plug-in cable kit system (confirm compatible cable kit with F.A.E.)
  • Trailer builds requiring ADR-approved stop/tail/indicator/licence plate lighting
  • LED Autolamps 149BARLP2 (same licence plate integration concept, different form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 207BARL4P approved for road use in Australia?

Yes. The LED Autolamps 207BARL4P is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.

What does fully submersible mean beyond IP67?

IP67 covers water immersion up to 1 metre for 30 minutes. The 207BARL4P is specified as fully submersible, indicating it is engineered to handle more demanding water exposure — suited to boat trailers, agricultural equipment, and other applications where submersion is likely.

What is the integrated licence plate lamp?

The 207BARL4P has a licence plate light built into the lamp housing, illuminating the rear number plate without requiring a separate lamp fitting or additional wiring.

What is the plug-in cable kit?

The 207BARL4P is compatible with LED Autolamps' plug-in cable kit system, which allows the lamp to connect to the trailer wiring without cutting or splicing. Contact F.A.E. to confirm the compatible cable kit part number.

Is the 207BARL4P compatible with 24V systems?

No. The 207BARL4P is a 12V-only lamp and is not rated for 24V applications.

Weight

0.4 kg
