LED Autolamps 207BAR4P 12V Stop/Tail/Indicator Lamp Connector Plug 14 Square LED

14-LED Stop/Tail/Indicator Lamp with Plug-In Cable Compatibility Fully Submersible, ADR Approved, Built for Trailers.

Product Overview

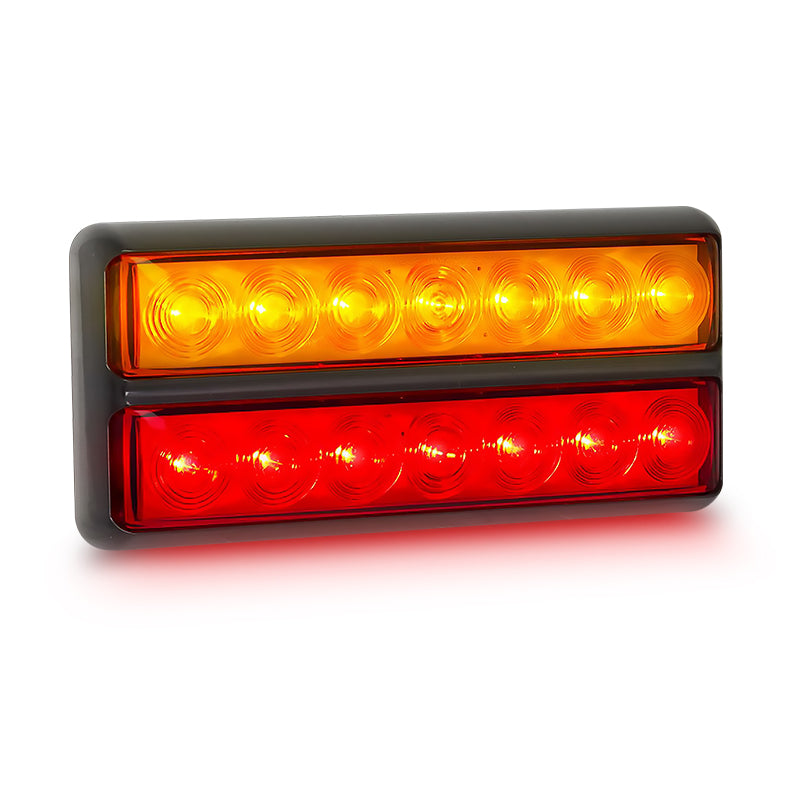

The LED Autolamps 207BAR4P is a 3-in-1 stop, tail, and indicator LED lamp featuring 14 square LEDs across a 200mm body. Designed for trailer applications, it is compatible with plug-in cable kits allowing tool-free lamp replacement on trailers wired with a matching plug-in harness, a significant practical advantage for fleet operators and hire trailer businesses where fast lamp turnaround matters.

Rated as fully submersible and carrying IP67 waterproof certification, the 207BAR4P is built for trailer applications where the lamp may be exposed to standing water, submersion during boat ramp use, or sustained wash-down. ADR road approved, 12V only, and backed by a 5-year warranty. The 14-square-LED array delivers high-output stop, tail, and indicator lighting in a compact 200mm × 92mm × 28mm profile suited to a wide range of trailer body positions.

Key Specifications

• Light functions: Stop / Tail / Indicator (3-in-1)
• LED count: 14 square LEDs
• Voltage: 12V only
• IP rating: IP67 — fully dust-tight; immersion-resistant to 1m depth for 30 minutes
• Fully submersible: Yes (supplier-stated)
• Compliance: ADR Road Approved
• Connector: Plug-in cable kit compatible
• Mount type: Not specified — confirm with LED Autolamps
• Dimensions: 200mm (L) × 92mm (W) × 28mm (D)
• Weight: 0.4 kg
• Warranty: 5 years
• Current draw: Not specified — confirm with LED Autolamps
• ADR compliance codes: Not specified — confirm with LED Autolamps

Features & Benefits

• Plug-In Cable Kit Compatible — Designed to connect directly to a matching plug-in trailer wiring harness, enabling tool-free lamp removal and replacement. On fleet trailers and hire equipment where lamps are replaced frequently, this can eliminate the need for an auto electrician for routine lamp change-outs — a meaningful operational advantage.
• 14 Square LED Array — Fourteen individually positioned square LEDs deliver high-output stop, tail, and indicator illumination with broad, even light distribution across the lens face. A high LED count for a lamp in this size class — contributing to strong indicator and stop light visibility at distance.
• Fully Submersible — The supplier explicitly rates this lamp as fully submersible, going beyond the standard IP67 waterproof claim. This makes the 207BAR4P suitable for boat trailer applications where the lamp assembly may be submerged during boat launching and retrieval at ramps.
• ADR Road Approved — Certified to Australian Design Rules for all three lighting functions, confirming full road-legal compliance for stop, tail, and indicator use on Australian registered trailers and vehicles.
• IP67 Waterproof — Completely sealed against dust and capable of withstanding water immersion to 1 metre for 30 minutes, with the supplier's additional "fully submersible" designation indicating confidence in performance beyond the standard IP67 test parameters.
• 12V Operation — Designed specifically for 12V electrical systems — covering standard passenger vehicles, utes, 4WDs, and light trailers operating on 12V.
• 5-Year Warranty — Backed by a 5-year manufacturer's warranty across all three lighting functions.

Technical Specs

Compatible With / Goes Well With

Suitable applications:

• Trailer stop, tail, and indicator lighting — 12V systems
• Boat trailers requiring submersible-rated rear lamps
• Light trailers, box trailers, and flatbed trailers
• Hire trailer fleet fitouts benefiting from plug-in lamp replacement
• Caravans and camper trailers on 12V systems
• Horse floats and stock trailers

Pairs well with:

• LED Autolamps plug-in trailer wiring harness kits (matching connector required — confirm compatibility with LED Autolamps)
• LED Autolamps 11WM-2 reverse lamp twin pack — for complete rear lighting compliance (reverse function not included in this lamp)
• LED Autolamps number plate lights and trailer wiring accessories

Weight

0.4 kg per unit.

Frequently Asked Questions

Is the LED Autolamps 207BAR4P suitable for boat trailer use where the lamp may be submerged?

Yes. The supplier rates the 207BAR4P as fully submersible and it carries IP67 certification. For deep-water or extended-duration submersion beyond IP67 parameters, confirm the specific rated submersion depth and duration with LED Autolamps before purchasing for a demanding boat ramp application.

What does "plug-in cable kit compatible" mean in practice?

It means the lamp is designed to connect to a matching plug-in trailer wiring harness — allowing the lamp to be removed and replaced without cutting wires or requiring an auto electrician. This is particularly useful for hire trailer operators and fleet managers who need to replace damaged lamps quickly in the field.

Does the 207BAR4P include a reverse light function?

No. The 207BAR4P provides stop, tail, and indicator functions only. A separate reverse lamp — such as the LED Autolamps 11WM-2 twin pack — must be fitted if reverse lighting is required.

Is this lamp suitable for 24V truck or commercial vehicle applications?

No. The 207BAR4P is rated for 12V electrical systems only. For 24V applications, refer to the LED Autolamps range for dual-voltage (12/24V) combination lamps.

How many LEDs does the 207BAR4P have and does it affect brightness?

The 207BAR4P features 14 square LEDs — a high count for a lamp in this class. A greater number of individual LEDs typically means broader light distribution across the lens face, improving indicator and stop light visibility from a wider range of viewing angles.
