LED Autolamps 201BSTIM 12/24V 16 LED Stop/Tail Indicator Black Bracket Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 201BSTIM 12/24V 16 LED Stop/Tail Indicator Black Bracket Blister

SKU: 201BSTIM
Price
$94
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 16 LED Stop/Tail/Indicator Lamp with Black Bracket and Clip-In Lens IP67

Product Overview

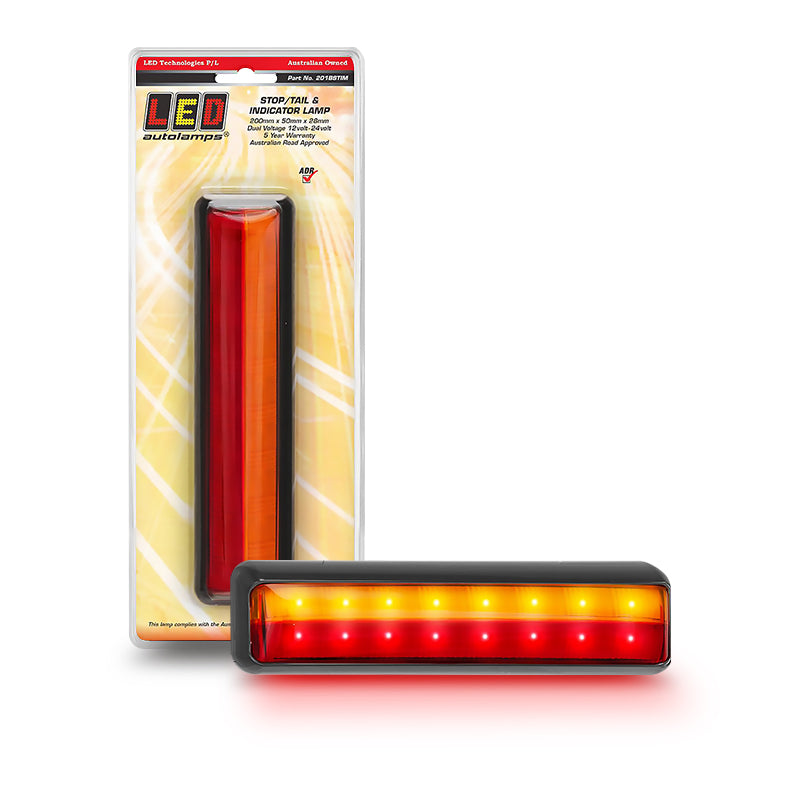

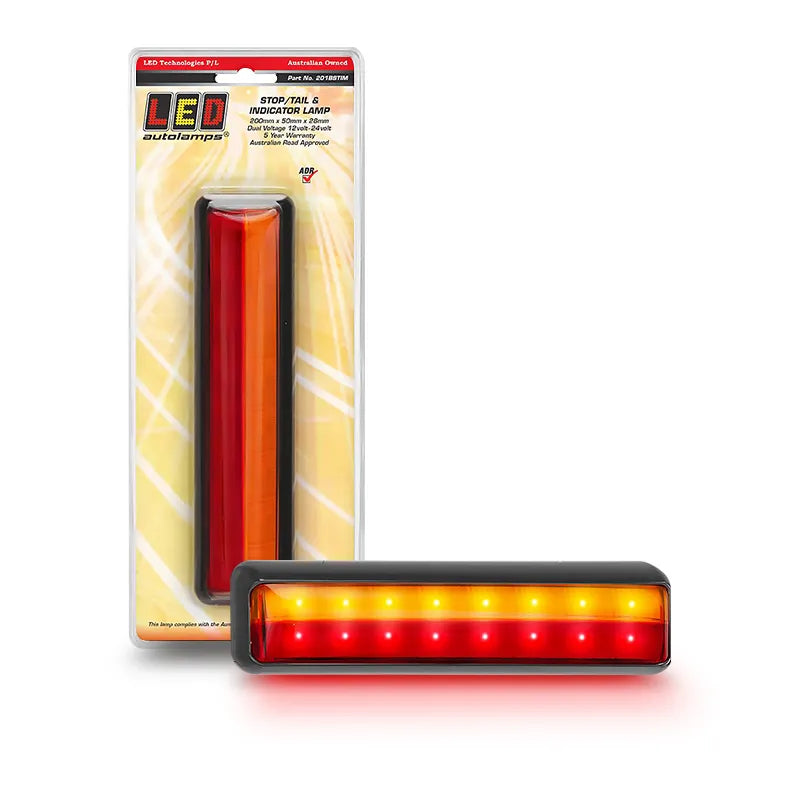

The LED Autolamps 201BSTIM is a 12/24V rectangular stop, tail, and indicator lamp fitted with 16 LEDs in the 200 series form factor, measuring 200mm x 50mm x 28mm with a black bracket. The clip-in replaceable lens allows for straightforward lens swaps without removing the full housing from its mounting.

ADR road approved and rated IP67, backed by a 1-year warranty.

Features & Benefits

  • 16 LEDs across three functions — delivers consistent stop, tail, and indicator output in the compact 200 series rectangular form factor
  • Clip-in replaceable lens — lens swaps independently from the housing without removing the lamp from the panel
  • Original rectangular 200 series design — the proven 200mm x 50mm form factor suits trailers, trucks, and tray body rear panels
  • Black bracket — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
  • ADR road approved — meets Australian Design Rules for legal on-road use across stop, tail, and indicator functions
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification

Technical Specs

Specification Detail
SKU 201BSTIM
Lamp Type Stop / Tail / Indicator
LED Quantity 16
Voltage Range 12V / 24V
Dimensions 200mm x 50mm x 28mm
Housing Colour Black
Lens Clip-in replaceable
Mounting Surface mount (bracket included)
Protection Rating IP67
Compliance ADR
Warranty 1 year
Weight 0.2 kg

Compatible With / Goes Well With

  • Trailers, tray bodies, trucks, and light commercial vehicles
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting
  • LED Autolamps 200BRM stop/tail lamp (same 200 series rectangular form factor)
  • LED Autolamps 200BAM indicator lamp (same 200 series rectangular form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 201BSTIM approved for road use in Australia?

Yes. The LED Autolamps 201BSTIM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across stop, tail, and indicator functions.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing, allowing it to be replaced without removing the full lamp bracket from the mounting panel — reducing maintenance time and cost in the field.

How does the 201BSTIM differ from the 200BARM combination lamp?

Both are 200 series rectangular rear combination lamps with black brackets. The 200BARM is 200mm x 92mm wide with 72 LEDs; the 201BSTIM is the standard 200mm x 50mm width with 16 LEDs — suited to applications where a narrower, more compact lamp is required.

What is the IP rating on the 201BSTIM?

The 201BSTIM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 201BSTIM carry?

The 201BSTIM is backed by a 1-year warranty from LED Autolamps — shorter than the 5-year warranty on the standard 200 series lamps; confirm warranty terms with F.A.E. before purchasing.

Weight

0.2 kg
