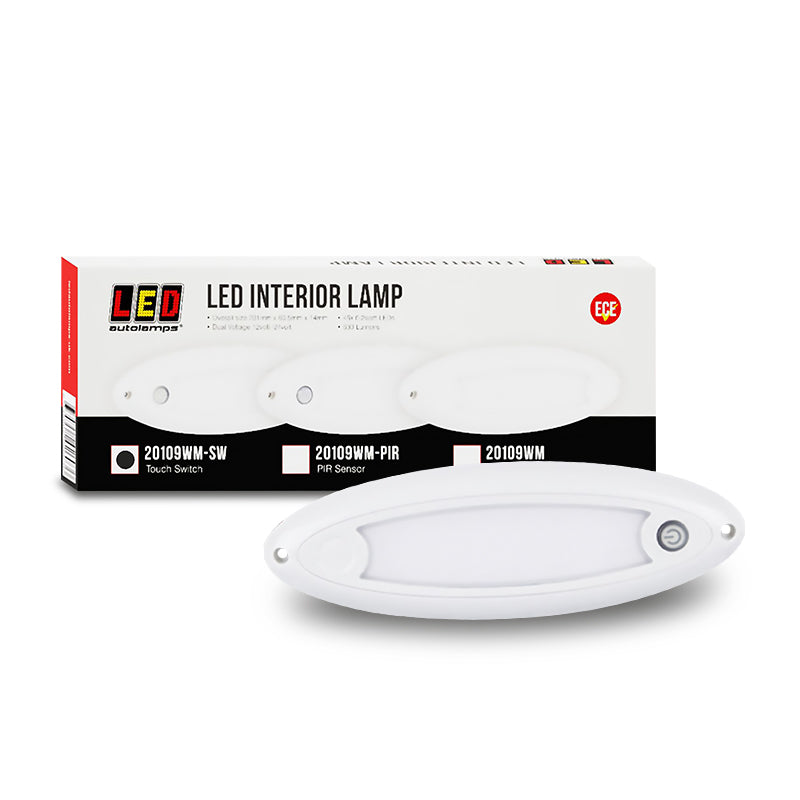

LED Autolamps 20109WM-SW Large Oval Interior/Exterior Lamp
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 20109WM-SW Large Oval Interior/Exterior Lamp

SKU: 20109WMSW
Price
$91
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

400lm Natural White Large Oval LED Lamp with Built-In Switch IP67, 115 Lux @ 1m, 10–30V

Product Overview

The LED Autolamps 20109WM-SW is the large oval switched variant in the 20109WM series a step up in output from the 16606WM-SW small oval, delivering 400 effective lumens at 4500K natural white with a measured output of 115 lux at 1 metre. The built-in switch provides direct on/off control at the fitting without a separate wiring switch.

Rated IP67 and operating across a wide 10–30V range, it suits truck cab interiors, caravan spaces, and commercial vehicle cabins where a higher-output switched interior lamp is required. Backed by a 2-year warranty.

Features & Benefits

  • Built-in switch — on/off control integrated directly into the lamp for convenient manual operation without a separate circuit switch
  • 400 effective lumens — higher output than the small oval 16606WM-SW; suited to larger interior spaces
  • 4500K natural white — balanced colour temperature delivers clear, comfortable illumination
  • 115 lux at 1 metre — verified illuminance figure for real-world brightness assessment at working distance
  • IP67 rated — fully sealed against dust and water immersion; suitable for both interior and exterior mounting
  • Low-profile large oval design — sits neatly on ceilings and panels without adding bulk
  • Wide voltage range 10–30V — compatible with 12V and 24V vehicle and equipment electrical systems
  • 2-year warranty — backed by LED Autolamps' warranty programme

Technical Specs

Specification Detail
SKU 20109WM-SW
Lamp Type Interior / Exterior
Colour Temperature 4500K Natural White
Effective Lumens 400 lm
Illuminance 115 lux @ 1m
Switch Built-in
Voltage Range 10V – 30V
Protection Rating IP67
Profile Low profile large oval
Warranty 2 years

Compatible With / Goes Well With

  • Truck cabs, caravan interiors, canopy interiors, and commercial vehicle cabins requiring higher-output lighting
  • Storage compartments and utility areas requiring direct switch control
  • 12V and 24V vehicle and equipment electrical systems
  • LED Autolamps 16606WM-SW small oval switch lamp (same switch concept, lower output)
  • LED Autolamps 13118WM-SW round switch lamp (same switch concept, larger round format)
  • LED Autolamps interior lighting accessories and wiring harnesses

Frequently Asked Questions

How does the 20109WM-SW compare to the 16606WM-SW?

The 20109WM-SW is a larger oval lamp producing 400lm at 115 lux @ 1m, while the 16606WM-SW is a smaller oval producing 240lm at 74 lux @ 1m. Both have built-in switches and the same 4500K output — choose based on the size of the space being lit.

Can the 20109WM-SW be used in exterior applications?

Yes. With an IP67 rating, the 20109WM-SW is fully sealed against dust and water immersion, making it suitable for both interior and exposed exterior mounting.

What colour temperature does the 20109WM-SW produce?

It produces 4500K natural white — a balanced tone between warm white and cool daylight suited to working and living spaces in vehicles and caravans.

What voltage range does the 20109WM-SW support?

It operates across 10V to 30V, making it compatible with 12V and 24V vehicle electrical systems across a broad input range.

What warranty does the 20109WM-SW carry?

The 20109WM-SW is backed by a 2-year warranty from LED Autolamps.
