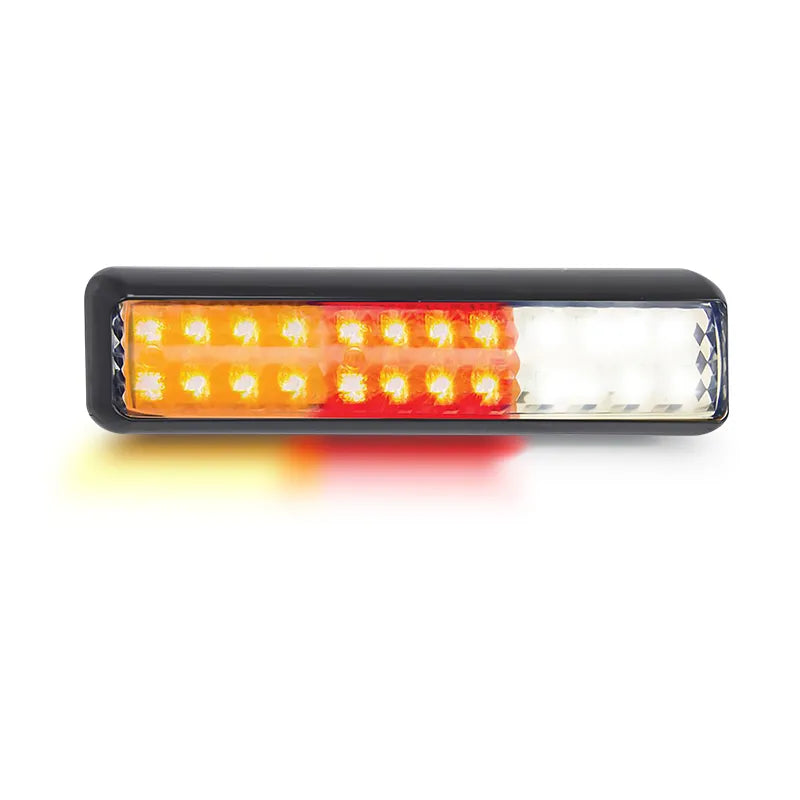

LED Autolamps 200BSTIRMB 12/24V LED Stop/Tail/Indicator/Reverse Black Bracket
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 200BSTIRMB 12/24V LED Stop/Tail/Indicator/Reverse Black Bracket

SKU: 200BSTIRMB
Price
$121
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Stop/Tail/Indicator/Reverse Lamp Black Bracket, 200x50mm, IP67, 12/24V

Product Overview

The LED Autolamps 200BSTIRMB is a 12/24V rear combination lamp covering stop, tail, indicator, and reverse functions in a single 200mm x 50mm x 28mm black bracket unit. Pre-wired with a 160mm centre-to-centre mount, it delivers all four rear lighting functions in the classic 200 series rectangular form factor reducing wiring complexity and fitting count on trailer and truck body builds.

ADR road approved and rated IP67, backed by a 1-year warranty.

Features & Benefits

  • Stop, tail, indicator, and reverse in one lamp — four functions in the compact 200 series rectangular form factor, reducing wiring and installation complexity
  • Black bracket — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
  • Original rectangular 200 series design — the proven 200mm x 50mm form factor suits trailers, trucks, and tray body rear panels
  • Pre-wired surface mount — 160mm centre-to-centre spacing; ready to connect and mount straight out of the pack
  • ADR road approved — meets Australian Design Rules for legal on-road use across all four functions
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification

Technical Specs

Specification Detail
SKU 200BSTIRMB
Lamp Type Stop / Tail / Indicator / Reverse
Voltage Range 12V / 24V
Dimensions 200mm x 50mm x 28mm
Mount Centre-to-Centre 160mm
Stop Current Draw 0.29A @ 13.8V
Tail Current Draw 0.09A @ 13.8V
Indicator Current Draw 0.19A @ 13.8V
Housing Colour Black
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Compliance ADR
Warranty 1 year
Weight 0.2 kg

Compatible With / Goes Well With

  • Trailers, tray bodies, trucks, and light commercial vehicles requiring a four-function rear combination lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved rear combination lighting
  • LED Autolamps 200BRM stop/tail lamp (same 200 series black rectangular form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 200BSTIRMB approved for road use in Australia?

Yes. The LED Autolamps 200BSTIRMB is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.

How does the 200BSTIRMB differ from having separate 200 series lamps?

The 200BSTIRMB combines stop, tail, indicator, and reverse into a single lamp, reducing the number of fittings and wiring connections required compared to fitting four separate 200 series lamps.

What is the current draw of the 200BSTIRMB?

Stop draws 0.29A, tail 0.09A, and indicator 0.19A at 13.8V. Reverse current draw was not specified in supplier data — confirm with LED Autolamps.

What is the IP rating on the 200BSTIRMB?

The 200BSTIRMB is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 200BSTIRMB carry?

The 200BSTIRMB is backed by a 1-year warranty from LED Autolamps — confirm warranty terms with F.A.E. before purchasing.

Weight

0.2 kg
