LED Autolamps 200BSTIM Stop/Tail Indicator Lamp Multi With Black Bracket
Click to open expanded view
LED AUTOLAMPS logo

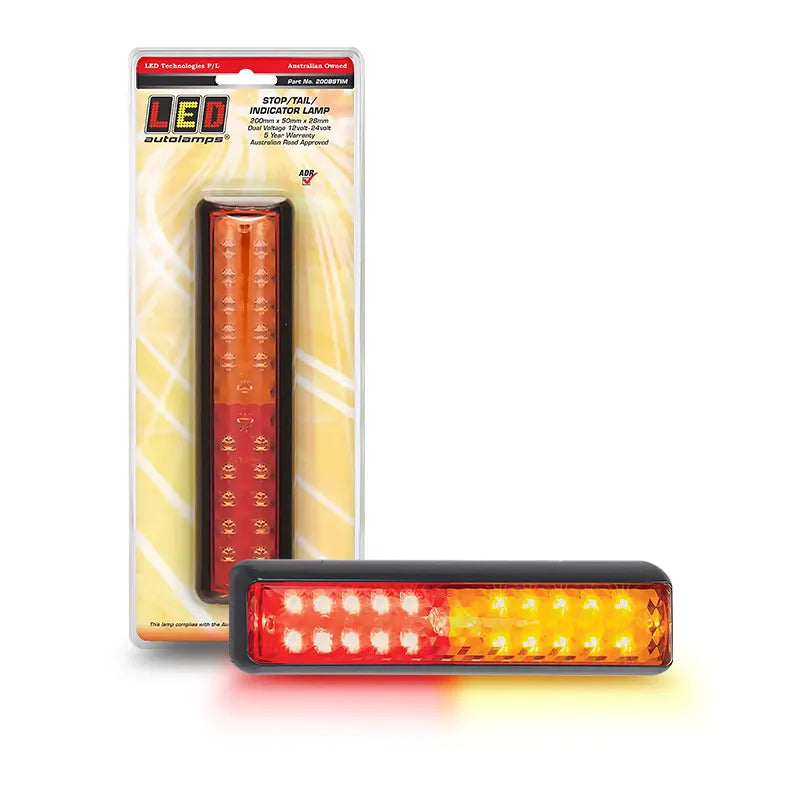

LED Autolamps 200BSTIM Stop/Tail Indicator Lamp Multi With Black Bracket

SKU: 200BSTIM
Price
$93
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Stop/Tail/Indicator Lamp with Black Bracket 200x50mm, IP67, 5-Year Warranty

Product Overview

The LED Autolamps 200BSTIM is a 12/24V rear combination lamp covering stop, tail, and indicator functions in the classic 200mm x 50mm x 28mm black bracket rectangular form factor. Pre-wired with a 160mm centre-to-centre mount, it carries individual ADR CRN certifications for all three functions making it the most thoroughly approved three-function 200 series lamp in this catalogue.

Drawing 0.29A on stop, 0.09A on tail, and 0.19A on indicator at 13.8V. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

  • Stop, tail, and indicator in one lamp — three rear lighting functions with individual ADR CRN certifications in the compact 200 series form factor
  • Individual ADR CRN approvals — stop CRN35786, tail CRN35785, indicator CRN35784 — the most complete compliance data in the 200 series range
  • Black bracket — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
  • Pre-wired surface mount — 160mm centre-to-centre spacing; ready to connect and mount straight out of the blister pack
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 200BSTIM
Lamp Type Stop / Tail / Indicator
Voltage Range 12V / 24V
Dimensions 200mm x 50mm x 28mm
Mount Centre-to-Centre 160mm
Stop Current Draw 0.29A @ 13.8V
Tail Current Draw 0.09A @ 13.8V
Indicator Current Draw 0.19A @ 13.8V
Housing Colour Black
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Stop Compliance ADR — CRN35786
Tail Compliance ADR — CRN35785
Indicator Compliance ADR — CRN35784
Packaging Blister pack
Warranty 5 years
Weight 0.16 kg

Compatible With / Goes Well With

  • Trailers, tray bodies, trucks, and light commercial vehicles requiring a three-function rear combination lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting with full CRN certification
  • LED Autolamps 200BWM reverse lamp (same 200 series black rectangular form factor)
  • LED Autolamps 200BSTIRMB (same functions plus reverse, 1-year warranty)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 200BSTIM approved for road use in Australia?

Yes. The 200BSTIM holds individual ADR CRN certifications for all three functions — stop (CRN35786), tail (CRN35785), and indicator (CRN35784) — meeting Australian Design Rules for legal on-road use.

How does the 200BSTIM differ from the 200BSTIRMB?

The 200BSTIM covers stop, tail, and indicator with a 5-year warranty and individual CRN numbers. The 200BSTIRMB adds reverse function but carries a 1-year warranty and no CRN references in available data. Choose the 200BSTIM where compliance documentation and long-term warranty are priorities.

What is the current draw of the 200BSTIM?

Stop draws 0.29A, tail 0.09A, and indicator 0.19A at 13.8V — consistent, efficient draw for multi-lamp trailer builds.

What is the IP rating on the 200BSTIM?

The 200BSTIM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 200BSTIM carry?

The 200BSTIM is backed by a 5-year warranty from LED Autolamps.

Weight

0.16 kg
