LED Autolamps 200BRM 12/24V Stop Tail Light With Black Bracket 200x50mm
Click to open expanded view
LED AUTOLAMPS logo

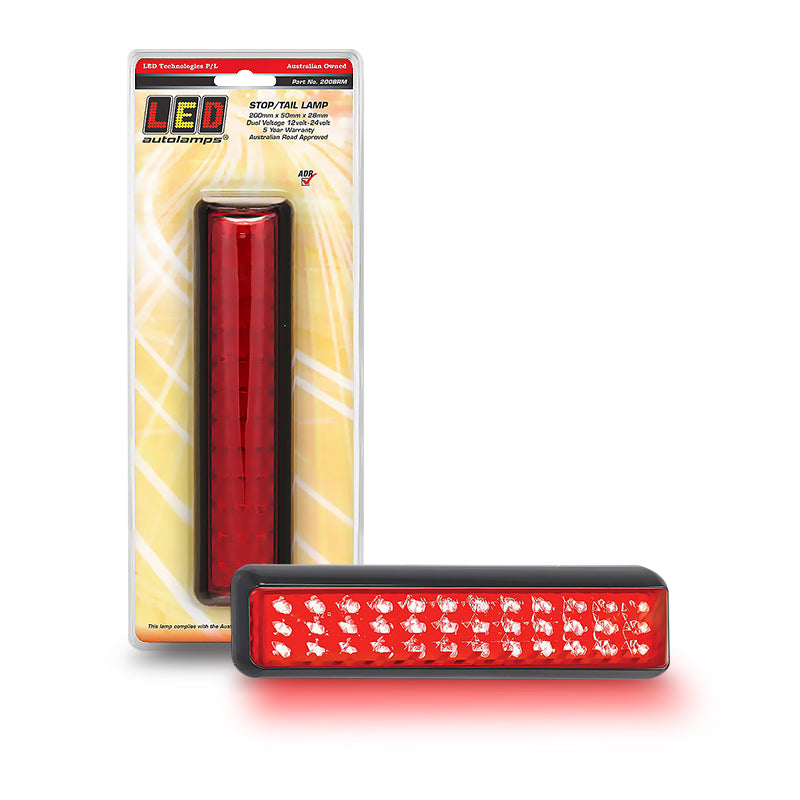

LED Autolamps 200BRM 12/24V Stop Tail Light With Black Bracket 200x50mm

SKU: 200BRM
Price
$81
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 49/00 Approved Rectangular Stop/Tail Lamp with Black Bracket and Clip-In Lens IP67

Product Overview

The LED Autolamps 200BRM is a 12/24V rectangular stop/tail lamp in the classic 200 series form factor, measuring 200mm x 50mm x 28mm with a black surface mount bracket. Pre-wired and ADR 49/00 compliant, it fits a wide range of trailers, trucks, and commercial vehicles with a 160mm centre-to-centre mount spacing.

The clip-in replaceable lens allows for quick, cost-effective lens swaps without replacing the full housing. Drawing 0.32A at 13.8V and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • Original rectangular 200 series design — the proven 200mm x 50mm form factor suits a wide range of trailer, truck, and tray body applications
  • Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
  • Black housing — suits a wide range of trailer and truck body finishes with a clean, professional look
  • ADR 49/00 compliant — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Pre-wired, surface mount — 160mm centre-to-centre spacing; ready to connect and mount straight out of the pack
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 200BRM
Lamp Type Stop / Tail
Voltage Range 12V – 24V
Dimensions 200mm x 50mm x 28mm
Mount Centre-to-Centre 160mm
Current Draw 0.32A @ 13.8V
Mounting Surface mount
Connector Pre-wired
Housing Colour Black
Lens Clip-in replaceable
Protection Rating IP67
Compliance ADR 49/00
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, tray bodies, trucks, and light commercial vehicles
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR 49/00 approved stop/tail lighting
  • LED Autolamps 200 series indicator and reverse lamps (same rectangular form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 200BRM approved for road use in Australia?

Yes. The 200BRM is ADR 49/00 compliant, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.

What is the centre-to-centre mounting distance on the 200BRM?

The 200BRM has a 160mm centre-to-centre mount spacing. Confirm this measurement against your panel or bracket before installation.

What is the IP rating on the 200BRM?

The 200BRM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 200BRM carry?

The 200BRM is backed by a 5-year warranty from LED Autolamps.
