LED Autolamps 175AW/2 Front Indicator/Position LED Light Clear Lens 12v Twin Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 175AW/2 Front Indicator/Position LED Light Clear Lens 12v Twin Blister Pack

SKU: 175AW2
Price
$133
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Bull Bar Front Indicator & Position Lamp Twin Pack 25 LEDs, ADR Approved, 12V, Clear Lens Black Base.

Product Overview

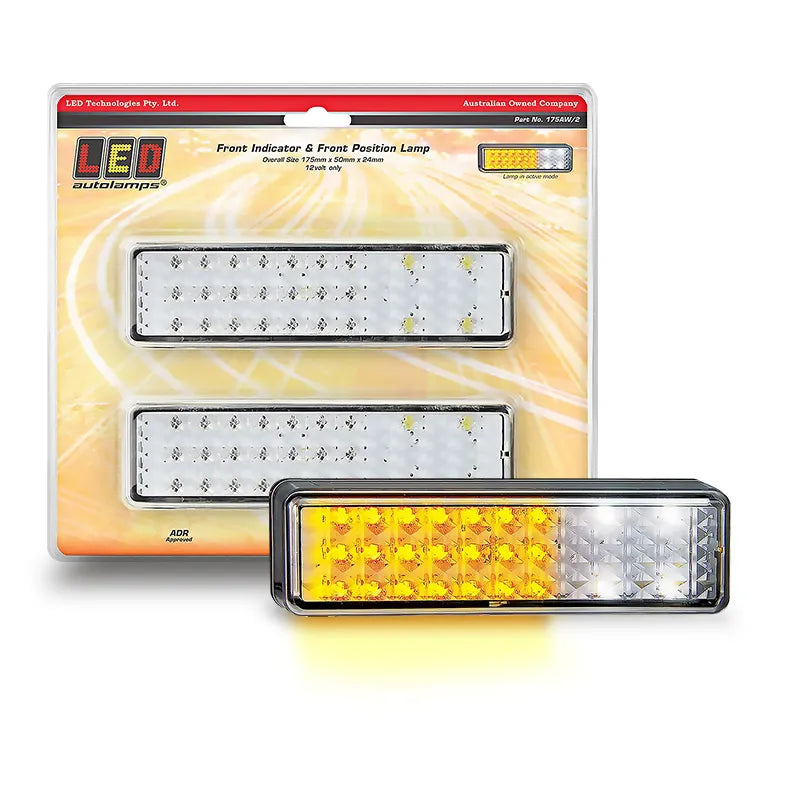

The LED Autolamps 175AW/2 is a twin blister pack of 175 Series front indicator and front position lamps designed for retrofit installation in most popular bull bars on 4WDs, utes, and SUVs. With a daytime running function and the ability to retrofit to existing 4x4 bull bars, the 175AW/2 is one of the most widely specified LED bull bar lamp upgrades available in Australia combining ADR-compliant front indicator (ADR 6/00) and front position (ADR 49/00) functions in a single slim unit.

Each lamp contains 25 LEDs, uses a hardened acrylic lens and ABS plastic base, and comes with a 40cm pre-wired cable. The clear lens and black base deliver a clean, modern appearance in the bull bar. Installation is simple mount the base plate, connect the wiring, and push the lamp into the bracket. With 158mm centre-to-centre bolt spacing, 0.32A current draw at 12V, IP67 waterproofing, and a 5-year warranty, the 175AW/2 is the go-to bull bar lamp replacement for Australian 4WD owners.

Key Specifications

  • Functions: Front indicator (ADR 6/00) and front position lamp (ADR 49/00)
  • LED count: 25 LEDs
  • Lens: Clear hardened acrylic
  • Base: Black ABS plastic
  • Dimensions: 175mm x 50mm x 24mm
  • Centre-to-centre mounting: 158mm
  • Cable: 40cm pre-wired
  • Mount type: Surface mount with base plate lamp clips into bracket
  • Current draw: 0.32A @ 13.8V
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: Indicator ADR 6/00, Park ADR 49/00
  • Warranty: 5 years
  • Weight: 0.2kg
  • Pack quantity: 2 lamps (twin blister)
  • Brand: LED Autolamps
  • SKU: 175AW/2

Features & Benefits

  • Designed for bull bars: Specifically designed to retrofit into most popular 4x4 bull bars, replacing ageing incandescent front indicator and position globes with modern LED technology
  • 25 LED output: 25 LEDs across the indicator and position functions deliver bright, consistent output with fast LED response time compared to incandescent alternatives
  • Dual ADR compliance: ADR 6/00 for the front indicator function and ADR 49/00 for the front position lamp both legally compliant for Australian road use
  • Clear lens with black base: Modern clear lens design with internal amber and white LEDs black base integrates cleanly with most bull bar finishes
  • 158mm centre-to-centre spacing: Suits most popular bull bar lamp aperture spacing confirm your bull bar before purchasing
  • Clip-in lamp design: The base mounts separately; the lamp clips into the base for clean installation and easy replacement
  • 40cm pre-wired cable: Sufficient cable length for most bull bar wiring routing
  • 0.32A current draw: Minimal load on the vehicle's 12V electrical system
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V only: Direct 12V compatibility for passenger vehicles and 4WDs
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU 175AW/2
Brand LED Autolamps
Series 175AW Series
Functions Front Indicator + Front Position Lamp
LED Count 25
Lens Clear hardened acrylic
Base Black ABS plastic
Dimensions 175mm x 50mm x 24mm
Centre-to-Centre Mounting 158mm
Cable Length 40cm
Mount Type Surface mount base plate + clip-in lamp
Current Draw 0.32A @ 13.8V
IP Rating IP67
Input Voltage 12V only
Compliance Indicator ADR 6/00
Compliance Park ADR 49/00
Warranty 5 Years
Weight 0.2kg
Pack Quantity 2 lamps (twin blister)

Compatible With

Designed for retrofit into most popular 4WD and ute bull bars including:

  • Bull bars with 158mm centre-to-centre lamp aperture spacing
  • Nissan Patrol bull bars
  • Most popular aftermarket steel and alloy bull bars

Frequently Asked Questions

Will this lamp fit my bull bar?

The 175AW/2 is designed for most popular bull bars with 158mm centre-to-centre lamp aperture spacing. It is particularly noted as a great upgrade for bull bars on Nissan Patrols. Confirm your specific bull bar's lamp spacing before purchasing.

How many lamps are in the twin blister pack?

Two lamps are included one for the left and one for the right side of the bull bar.

Is this lamp compatible with 24V vehicles?

No the 175AW/2 is 12V only. Confirm your vehicle operates on 12V before purchasing.

What ADR categories does this lamp comply with?

The 175AW/2 is ADR 6/00 approved for the front direction indicator function and ADR 49/00 approved for the front position lamp function.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm bull bar lamp aperture dimensions before purchasing. Contact the seller if you're unsure prior to purchase.
