LED Autolamps 16W12-2 12V Front End Outline Marker Super Small Design
Click to open expanded view
LED AUTOLAMPS logo

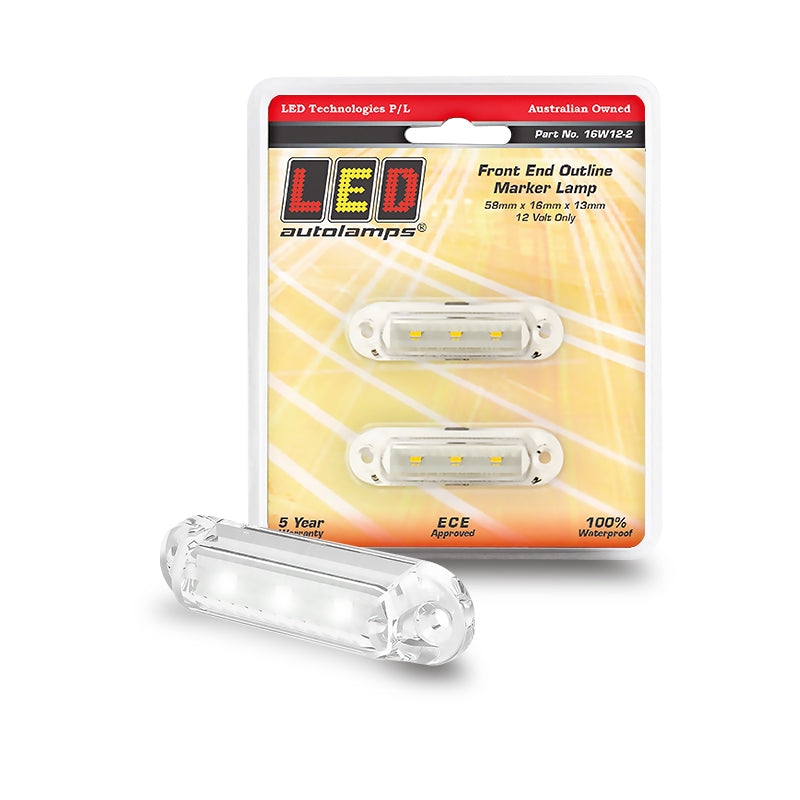

LED Autolamps 16W12-2 12V Front End Outline Marker Super Small Design

SKU: 16W122
Price
$44
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 16W12-2 12-24V Super Small Front End Outline Marker Lamp 58mm x 16mm x 13mm Screw Mount ECE Approved CTA060173 IP67

The LED Autolamps 16W12-2 is a 12-24V super small white LED front end outline marker lamp in a streamlined 58mm x 16mm x 13mm housing. ECE approved (CTA060173), IP67 waterproof, easy-fit screw mount. Five-year warranty. Sold individually.

Product overview

The 16W12-2 is the white front end outline marker in the LED Autolamps 16 series super small lamp range, sharing the same 58mm x 16mm x 13mm streamlined housing as the 16A12-2 amber side marker and 16R12-2 red rear position marker. ECE approval CTA060173 confirms road-legal use in Australia as a front end outline marker. 12-24V compatible. Easy-fit screw mount. IP67 rated.

Features and benefits

White LED front end outline marker output: ECE-compliant front end outlining for trailers, caravans, and commercial vehicles.

Super small form factor: 58mm x 16mm x 13mm compact, low-profile housing for discreet installations.

Streamlined design: Sleek appearance suited to trailer and vehicle front panel mounting.

Easy-fit screw mount: Simple installation without specialist tools.

ECE approved (CTA060173): Meets international road approval standards accepted for on-road use in Australia.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 16W12-2
Brand LED Autolamps
Type Front end outline marker lamp
Light Type LED
LED Colour White
Operating Voltage 12V to 24V
Mount Type Screw mount
Dimensions 58mm x 16mm x 13mm
Waterproof Rating IP67
ECE Compliance CTA060173
Weight 0.075kg
Manufactured In China (Taiwan)
Sold As Each
Warranty Five years

Frequently asked questions

Is the 16W12-2 ECE approved? Yes. The 16W12-2 holds ECE approval CTA060173, meeting international road approval standards accepted for on-road use in Australia as a front end outline marker lamp.

What voltage does the 16W12-2 operate on? The 16W12-2 operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.

How does the 16W12-2 fit within the 16 series range? The 16 series super small lamp range covers multiple positions and colours. The 16A12-2 is an amber side marker (ECE CTA060174), the 16R12-2 is a red rear position marker (ECE CTA060172), and the 16W12-2 is a white front end outline marker (ECE CTA060173). All share the same 58mm x 16mm x 13mm form factor.

What makes the 16W12-2 suitable for discreet installations? The 58mm x 16mm x 13mm housing is the smallest marker lamp in the LED Autolamps range, with a streamlined design that sits with minimal protrusion on trailer and vehicle front panels.

Is the 16W12-2 sold as a single unit or a pair? Sold individually.
