Product features

Ultra-Compact Rear Position Marker 58mm, IP67, Screw Mount, 12/24V, 5-Year Warranty

Product Overview

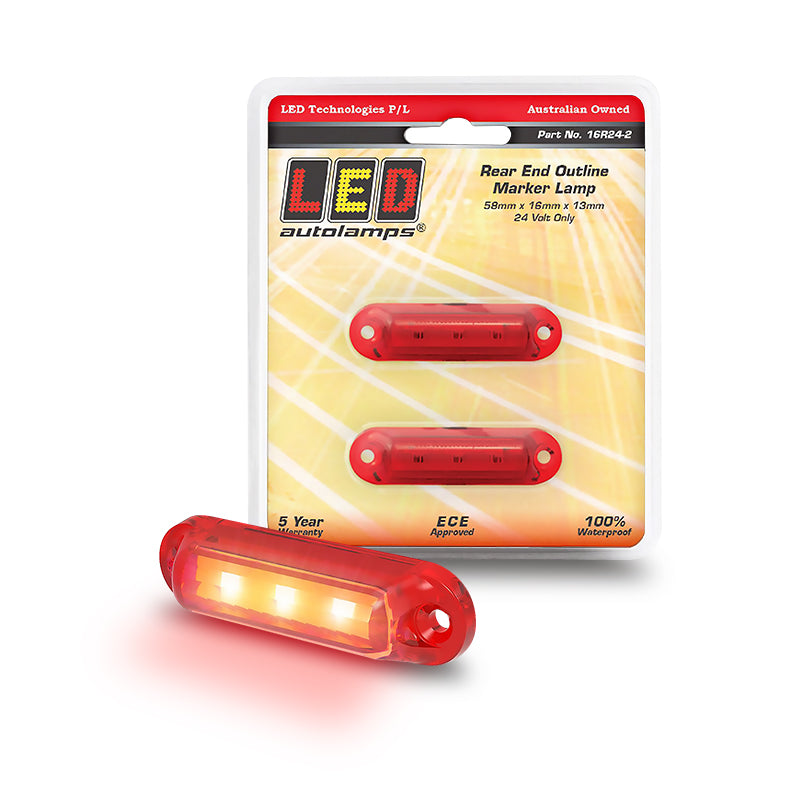

The LED Autolamps 16R24-2 is an ultra-compact rear position marker lamp in the same 58mm x 16mm x 13mm sleek streamlined form factor as the 16W series outline markers claimed as the smallest marker lamp in the LED Autolamps range. Designed for trailers, trucks, and commercial vehicles where a discreet, road-approved rear position marker is required in tight panel spaces.

Road approved and rated IP67, with a simple screw mount. Backed by a 5-year warranty.

Features & Benefits

  • Smallest marker lamp in the LED Autolamps range — at 58mm x 16mm x 13mm, it fits where standard markers won't
  • Rear position marker function — marks the rear position of the vehicle for visibility and compliance
  • Sleek streamlined design — low-profile rectangular form factor blends cleanly into vehicle body panels
  • Easy fit screw mount — straightforward single-screw installation on trailer and truck body panels
  • Road approved — meets road approval standards for legal on-road use as a rear position marker
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 16R24-2
Lamp Type Rear Position Marker
Voltage Range 12V / 24V
Dimensions 58mm x 16mm x 13mm
Mounting Screw mount
Protection Rating IP67
Compliance Road approved
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring ultra-compact rear position marker lamps
  • 12V and 24V vehicle electrical systems
  • Tight rear panel installations where standard marker lamps are too large
  • LED Autolamps 16W24-2 front end outline marker (same 16 series form factor)
  • LED Autolamps 16W12-2 front end outline marker (same 16 series form factor)
  • LED Autolamps wiring harnesses and lighting accessories

Frequently Asked Questions

Is the 16R24-2 approved for road use in Australia?

Yes. The 16R24-2 is road approved, meeting the standards required for legal on-road use as a rear position marker lamp.

What is the difference between a rear position marker and a stop/tail lamp?

A rear position marker is a passive lamp that stays illuminated to mark the vehicle's presence and rear extremity, while a stop/tail lamp changes brightness to indicate braking. The 16R24-2 serves the marker function only.

How compact is the 16R24-2?

At 58mm x 16mm x 13mm, it is claimed to be the smallest marker lamp in the LED Autolamps range — suited to rear panel installations where standard markers cannot fit.

What is the IP rating on the 16R24-2?

The 16R24-2 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed outdoor and transport applications.

What warranty does the 16R24-2 carry?

The 16R24-2 is backed by a 5-year warranty from LED Autolamps.
