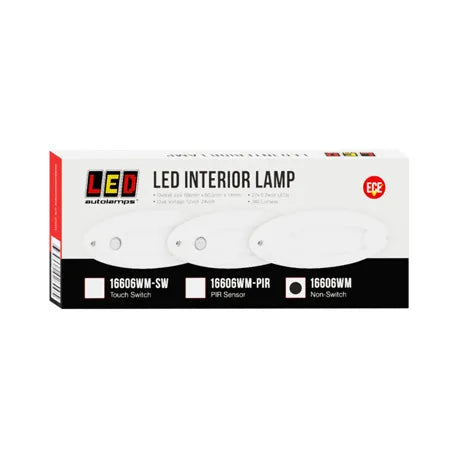

LED Autolamps 16606WM-PIR Oval LED Interior/Exterior Lamp 10-30V with White Housing & PIR Sensor
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 16606WM-PIR Oval LED Interior/Exterior Lamp 10-30V with White Housing & PIR Sensor

SKU: 16606WMPIR
Price
$103
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

240lm Natural White PIR Oval LED Lamp White Housing, IP67, Motion Activated, 10–30V

Product Overview

The LED Autolamps 16606WM-PIR is the PIR motion-sensor variant of the 16606WM series, combining the same 240 effective lumen output at 4500K natural white and 74 lux at 1 metre with automatic activation when motion is detected. The white housing gives it a clean, contemporary appearance suited to caravan interiors, cabin fittings, and light commercial vehicle applications.

Rated IP67 and operating across a wide 10–30V range, it's the motion-activated counterpart to the 16606WM-SW touch switch lamp ideal for storage compartments, toolboxes, and access areas where hands-free automatic lighting is more practical than a manual switch.

Features & Benefits

  • PIR motion sensor — automatically activates when motion is detected; ideal for storage areas, canopies, and access spaces requiring hands-free lighting
  • White housing — clean, modern finish suited to caravan interiors and light commercial vehicle cabin fittings
  • 240 effective lumens — functional light output suited to interior and confined exterior lighting applications
  • 4500K natural white — balanced natural white colour temperature delivers clear, comfortable illumination
  • 74 lux at 1 metre — verified illuminance figure for real-world brightness assessment at working distance
  • IP67 rated — fully sealed against dust and water immersion; suitable for both interior and exterior mounting
  • Low-profile oval design — compact form factor sits neatly on ceilings and panels
  • Wide voltage range 10–30V — compatible with 12V and 24V vehicle and equipment electrical systems

Technical Specs

Specification Detail
SKU 16606WM-PIR
Lamp Type Interior / Exterior with PIR Sensor
Housing Colour White
Colour Temperature 4500K Natural White
Effective Lumens 240 lm
Illuminance 74 lux @ 1m
Sensor PIR (Passive Infrared)
Voltage Range 10V – 30V
Protection Rating IP67
Profile Low profile oval

Compatible With / Goes Well With

  • Caravan interiors, truck cabs, canopy interiors, and light commercial vehicle cabins
  • Storage compartments and access areas requiring automatic motion-activated lighting
  • 12V and 24V vehicle and equipment electrical systems
  • LED Autolamps 16606WM-SW oval touch switch lamp (same series, manual switch)
  • LED Autolamps 13118WM-PIR round PIR lamp (same PIR concept, larger format)
  • LED Autolamps interior lighting accessories and wiring harnesses

Frequently Asked Questions

What does the PIR sensor do on the 16606WM-PIR?

The PIR (Passive Infrared) sensor detects motion and automatically switches the lamp on, then off again after a period of inactivity — providing hands-free lighting ideal for storage compartments, toolboxes, and rear access areas.

How does the 16606WM-PIR differ from the 16606WM-SW?

The PIR variant activates automatically via motion detection, while the SW variant uses a built-in touch switch for manual control. Both share the same 240lm, 4500K output and IP67 rating.

Why is the white housing significant?

The white housing gives the lamp a cleaner, more refined appearance compared to standard black housings — well suited to caravan interiors and light commercial vehicle cabin fittings where aesthetics matter alongside function.

What voltage range does the 16606WM-PIR support?

It operates across 10V to 30V, making it compatible with 12V and 24V vehicle electrical systems across a broad input range.

Does the 16606WM-PIR come with a warranty?

Warranty information was not confirmed in available supplier data for this SKU — contact F.A.E. or LED Autolamps to confirm before purchasing.
