LED Autolamps 151BAR2 12V LED Stop/Tail/Indicator Lamp With Reflex Reflector 2 Pack
Click to open expanded view
LED AUTOLAMPS logo

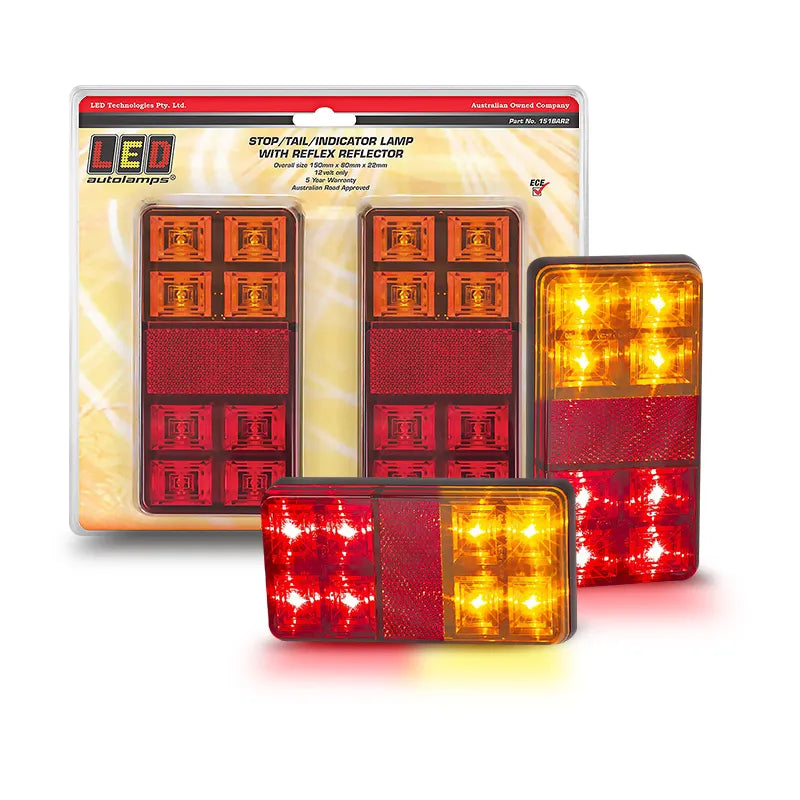

LED Autolamps 151BAR2 12V LED Stop/Tail/Indicator Lamp With Reflex Reflector 2 Pack

SKU: 151BAR2
Price
$92
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved 12V Stop/Tail/Indicator Lamp with Reflex Reflector Twin Pack, IP67

Product Overview

The LED Autolamps 151BAR2 is a 12V stop, tail, and indicator lamp with built-in reflex reflector, supplied as a 2-pack for a complete left and right rear installation. Measuring 150mm x 80mm x 22mm in a low-profile black housing, it delivers three rear lighting functions plus passive reflector compliance in a single surface-mount unit a cost-effective trailer lamp solution carrying full ECE and ADR CTA060147 approval.

Drawing 0.13A on stop, 0.04A on tail, and 0.12A on indicator at 13.8V. Rated IP67, backed by a 5-year warranty.

Features & Benefits

  • 2-pack — both lamps supplied for a complete left and right rear installation in a single purchase
  • Stop, tail, and indicator in one lamp — three functions plus built-in reflex reflector in a single compact unit
  • Built-in reflex reflector — integrated passive reflective element for additional rear visibility and compliance
  • Low-profile 22mm depth — slim form factor sits close to the panel surface for a clean finish on trailer bodies
  • ECE road approved — certified for stop/tail (ECE 02R1-S1), indicator (ECE 01 2A), and reflector (ECE 02 1A)
  • ADR CTA060147 — Australian manufacturer approval for road-legal use
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12V only — designed for 12V trailer and vehicle electrical systems
  • Low current draw — 0.13A stop / 0.04A tail / 0.12A indicator at 13.8V

Technical Specs

Specification Detail
SKU 151BAR2
Pack Contents 2 lamps
Lamp Type Stop / Tail / Indicator / Reflector
Voltage 12V
Dimensions 150mm x 80mm x 22mm
Stop Current Draw 0.13A @ 13.8V
Tail Current Draw 0.04A @ 13.8V
Indicator Current Draw 0.12A @ 13.8V
Housing Colour Black
Mounting Surface mount
Protection Rating IP67
Stop/Tail Compliance ECE 02R1-S1
Indicator Compliance ECE 01 2A
Reflector Compliance ECE 02 1A
Manufacturer Approval ADR — CTA060147
Packaging Blister pack
Weight 0.36 kg

Compatible With / Goes Well With

  • Trailers and light commercial vehicles requiring a cost-effective 12V rear combination lamp
  • Trailer builds requiring ECE and ADR-approved stop/tail/indicator lighting
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 151BAR2 approved for road use in Australia?

Yes. The 151BAR2 holds ECE certifications for stop/tail (ECE 02R1-S1), indicator (ECE 01 2A), and reflector (ECE 02 1A), plus ADR manufacturer approval CTA060147 — meeting requirements for legal on-road use in Australia.

What is included in the 151BAR2 2-pack?

The pack contains two lamps, providing a complete left and right rear installation in a single purchase.

What is the built-in reflex reflector?

The reflex reflector is a passive element integrated into the lamp housing, adding a compliant reflective surface for additional rear visibility without requiring a separate reflector unit.

What is the IP rating on the 151BAR2?

The 151BAR2 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

Is the 151BAR2 compatible with 24V systems?

No. The 151BAR2 is a 12V-only lamp and is not rated for 24V applications.

Weight

0.36 kg per lamp
