LED Autolamps 150BAR2 Stop/Tail/Indicator Light LED 12V
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 150BAR2 Stop/Tail/Indicator Light LED 12V

SKU: 150BAR2
Price
$95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 12V Stop/Tail/Indicator Lamp with Diamond Lens Lifetime Warranty, IP67

Product Overview

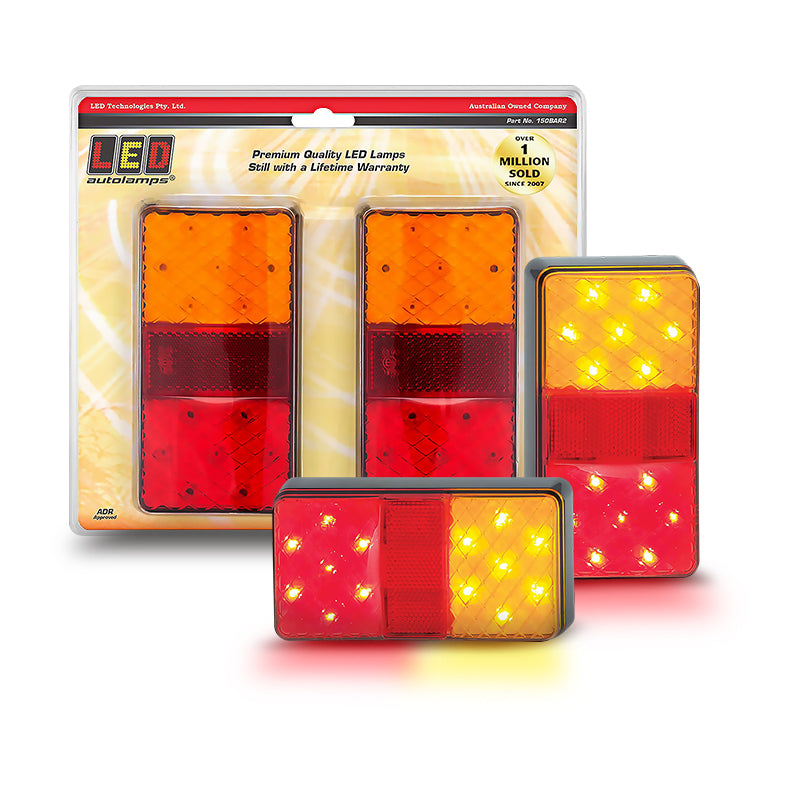

The LED Autolamps 150BAR2 is a 12V stop, tail, and indicator lamp with a distinctive diamond pattern lens, supplied as a 2-pack for a complete left and right rear installation. Measuring 150mm x 80mm x 24mm with a black housing, it carries individual ADR CRN certifications across stop/tail, indicator, and reflector functions and is backed by a lifetime warranty, making it a standout long-term investment for trailer and caravan builders.

Pre-wired with a 100mm centre-to-centre surface mount, drawing 0.13A stop, 0.04A tail, and 0.12A indicator at 12V. Rated IP67.

Features & Benefits

  • Lifetime warranty — the only LED Autolamps lamp in this session backed by a lifetime warranty; a strong indicator of build confidence and long-term reliability
  • Diamond pattern lens — distinctive lens design for a premium appearance on trailer and caravan rear panels
  • 2-pack — both lamps supplied for a complete left and right installation in a single purchase
  • Stop, tail, and indicator in one lamp — three functions with individual ADR CRN certifications in a single compact unit
  • ADR road approved — stop/tail CRN37381, indicator CRN37380, reflector CRN38102
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • Low-profile 24mm depth — slim form factor suits surface mounting on trailer and caravan bodies
  • Pre-wired surface mount — 100mm centre-to-centre spacing; ready to connect and mount straight out of the blister pack
  • 12V only — designed for 12V trailer and vehicle electrical systems

Technical Specs

Specification Detail
SKU 150BAR2
Pack Contents 2 lamps
Lamp Type Stop / Tail / Indicator
Voltage 12V
Dimensions 150mm x 80mm x 24mm
Mount Centre-to-Centre 100mm
Stop Current Draw 0.13A @ 12V
Tail Current Draw 0.04A @ 12V
Indicator Current Draw 0.12A @ 12V
Lens Diamond pattern
Housing Colour Black
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Stop/Tail Compliance ADR — CRN37381
Indicator Compliance ADR — CRN37380
Reflector Compliance ADR — CRN38102
Packaging Blister pack
Warranty Lifetime
Weight 0.5 kg

Compatible With / Goes Well With

  • Trailers and caravans requiring a 12V rear combination lamp with premium lens finish
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting with long-term warranty coverage
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 150BAR2 approved for road use in Australia?

Yes. The 150BAR2 holds individual ADR certifications — stop/tail (CRN37381), indicator (CRN37380), and reflector (CRN38102) — meeting Australian Design Rules for legal on-road use.

What does the lifetime warranty cover?

The 150BAR2 is backed by a lifetime warranty from LED Autolamps. Contact F.A.E. or LED Autolamps for full warranty terms and conditions before purchase.

What is the diamond pattern lens?

The diamond pattern lens is a distinctive textured design that gives the lamp a premium appearance and helps distribute light output across the lens face.

What is the IP rating on the 150BAR2?

The 150BAR2 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.

Is the 150BAR2 compatible with 24V systems?

No. The 150BAR2 is a 12V-only lamp and is not rated for 24V applications.

Weight

0.5 kg
