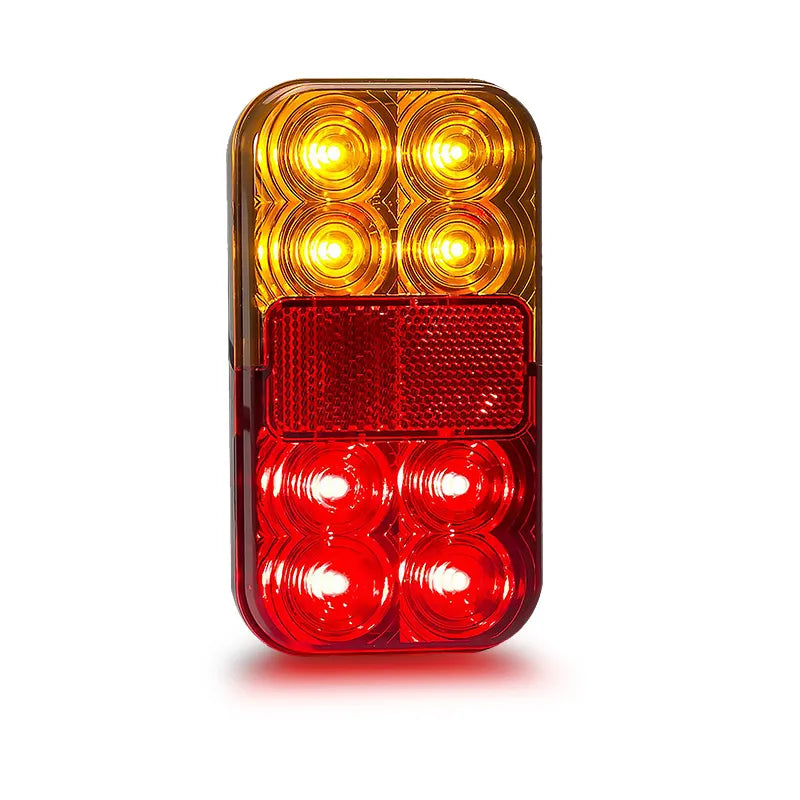

LED Autolamps 149BARM4P Stop Tail Indicator Lamp Reflector

SKU: 149BARM4P
Price
$68
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved Stop/Tail/Indicator/Reflector Lamp Horizontal/Vertical Mount, 4-Pin Harness Compatible

Product Overview

The LED Autolamps 149BARM4P is a rear combination lamp covering stop, tail, indicator, and reflector functions in a single 150mm x 80mm x 29mm unit. Mounting flexibility is a standout feature it can be installed in either horizontal or vertical orientation to suit a wide range of trailer and truck body panel layouts.

The 4P suffix indicates compatibility with LED Autolamps' 4-pin plug harness system on select cable configurations refer to the LED Autolamps cable systems range or contact F.A.E. to confirm harness compatibility for your application. ECE approved and rated IP67.

Features & Benefits

  • Horizontal and vertical mount options — flexible orientation suits a wide range of trailer and truck body panel layouts without additional hardware
  • Stop, tail, indicator, and reflector in one lamp — four functions in a single compact unit, reducing wiring complexity
  • 4-pin plug harness compatible — on select cable system configurations, the 149BARM4P plugs directly into LED Autolamps' 4-pin harness system; confirm compatible part numbers with F.A.E.
  • ECE approved — meets international road approval standards for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V — compatible with 12V and 24V vehicle electrical systems

Technical Specs

Specification Detail
SKU 149BARM4P
Lamp Type Stop / Tail / Indicator / Reflector
Voltage Range 12V / 24V
Dimensions 150mm x 80mm x 29mm
Mounting Horizontal or vertical surface mount
Connector 4-pin plug (harness compatible on select variants)
Protection Rating IP67
Compliance ECE

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring flexible-mount rear combination lamps
  • LED Autolamps 4-pin cable harness systems (confirm compatible part numbers with F.A.E.)
  • 12V and 24V vehicle electrical systems
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 149BARM4P approved for road use in Australia?

Yes. The 149BARM4P is ECE approved, meeting international road approval standards accepted for legal on-road use in Australia.

What mounting orientations are available for the 149BARM4P?

The 149BARM4P can be mounted in either horizontal or vertical orientation, giving installation flexibility to suit different trailer and truck body panel layouts.

What does the 4-pin harness compatibility mean?

On certain cable system configurations, the 149BARM4P is compatible with LED Autolamps' 4-pin plug harness system, allowing plug-and-play installation without cutting or splicing wires. Contact F.A.E. to confirm which cable system part numbers are compatible with your setup.

What is the IP rating on the 149BARM4P?

The 149BARM4P is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 149BARM4P carry?

Warranty information was not confirmed in available supplier data — contact F.A.E. or LED Autolamps to confirm before purchasing.
