LED Autolamps 149BARLP2/10 Stop Tail Indicator Licence Plate Lamp

Compact Combination Lamp with Integrated Licence Plate Light Stop, Tail, Indicator, Reflector. Twin Pack.

Product Overview

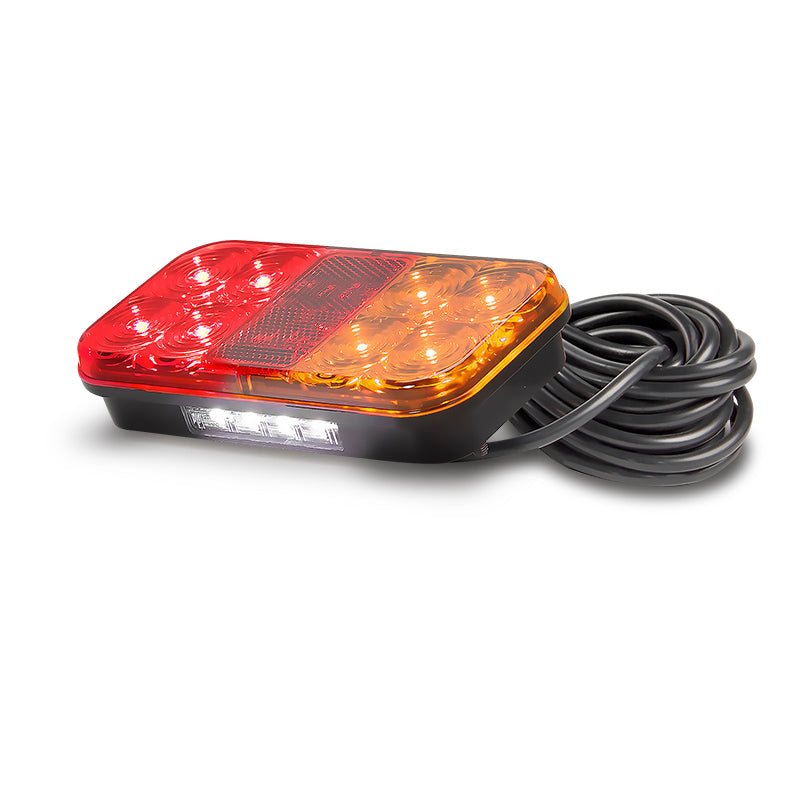

The LED Autolamps 149BARLP2 is a twin blister pack containing a matched pair of compact rear combination lamps one standard unit (149BAR) and one with an integrated horizontally-mounted licence plate lamp (149BARLP). Together they form a complete left-and-right rear lighting solution for small trailers, boat trailers, camper trailers, and light commercial applications, delivering stop, tail, indicator, reflex reflector, and licence plate illumination in a single compact footprint.

Measuring just 150mm x 80mm x 29mm, the 149 series is one of the most widely used compact combination lamp formats in Australia a proven performer across the trailer and caravan industry. The lamp body mounts vertically with the indicator function at the top, secured via rear bolts through a 10mm hole in the fixing surface. With 8 LEDs in the main lamp and 4 LEDs in the integrated licence plate section, IP67 waterproofing, ECE compliance, and ultra-low current draw across all functions, the 149BARLP2 is a compact, reliable, and legally compliant rear lighting solution for 12V vehicles and trailers. Backed by LED Autolamps' 5-year warranty.

Key Specifications

• Functions: Stop, tail, indicator, reflex reflector, licence plate lamp
• LED count: 8 in main lamp + 4 in licence plate lamp
• Licence plate lamp mount: Horizontal
• Dimensions: 150mm x 80mm x 29mm
• Mounting stud distance: 100mm
• Mount type: Vertical surface mount rear bolts through 10mm hole indicator at top
• Cable length: 40cm
• Wiring: Brown = tail/licence / Red = stop / Yellow = indicator / White = earth
• IP rating: IP67
• Input voltage: 12V only
• Current draw: Stop 0.07A / Tail + Number Plate 0.05A / Indicator 0.08A @ 13.8V
• Compliance: ECE approved
• Warranty: 5 years
• Pack quantity: 2 lamps (1x 149BAR + 1x 149BARLP) twin blister pack
• Brand: LED Autolamps
• SKU: 149BARLP2

Features & Benefits

• Five functions in one compact unit: Stop, tail, indicator, reflex reflector, and integrated licence plate lamp eliminate the need for separate lamp assemblies in tight rear panel spaces
• Horizontally mounted licence plate lamp: The integrated licence plate light on the 149BARLP unit mounts horizontally for correct ADR/ECE licence plate illumination positioning
• Ultra-low current draw: Stop 0.07A / Tail+Plate 0.05A / Indicator 0.08A extremely low electrical load across all functions, ideal for small trailer electrical systems
• Compact 150mm x 80mm x 29mm footprint: One of the most space-efficient combination lamp formats available, suitable for small trailers, boat trailers, and tight rear panel applications
• 8 LED + 4 LED construction: 8 LEDs in the main lamp body and 4 LEDs in the integrated licence plate section provide bright, effective output in a minimal package
• IP67 waterproof: Completely sealed against dust and temporary water immersion particularly suited to boat trailer applications where the lamp may be submerged during launch
• Twin pack left and right: One 149BAR (non-licence) and one 149BARLP (with licence) provided per pack for a complete matched rear pair
• Colour-coded wiring: Brown (tail/licence), Red (stop), Yellow (indicator), White (earth) for fast, error-free installation
• ECE approved: Compliant with ECE standards for road use on trailers and vehicles
• 5-year warranty: Backed by LED Autolamps' 5-year product warranty

Technical Specs

Compatible With

Universal suits all 12V trailers requiring compact ADR/ECE-compliant rear combination lighting including:

• Small box trailers and car trailers
• Boat trailers (IP67 submersion suitable for boat ramp use)
• Camper trailers and small caravans
• Light commercial trailers

Pairs well with:

• LED Autolamps 42WM white front position marker
• LED Autolamps 35CARM red/amber side marker
• LED Autolamps 7030R red self-adhesive reflectors
• Compatible LED Autolamps cable kits and plug-in harnesses (sold separately)

Frequently Asked Questions

What is included in the 149BARLP2 twin blister pack?

The pack contains two lamps one 149BAR (stop/tail/indicator/reflector without licence plate lamp) and one 149BARLP (stop/tail/indicator/reflector with integrated horizontal licence plate lamp). Together they form a matched left-and-right rear lighting solution.

Is this lamp suitable for boat trailer use?

Yes the IP67 rating means the lamp is fully protected against dust and temporary water immersion, making the 149BARLP2 well-suited to boat trailer applications where the lamp may be submerged during boat launching.

How is this lamp mounted?

Mount vertically onto a flat surface with the indicator function at the top. Secure using rear bolts through a 10mm hole in the fixing surface. The mounting stud distance is 100mm. Refer to ADR 13/00 for mounting requirements.

Is this lamp compatible with 24V vehicles?

No the 149BARLP2 is 12V only. Confirm your trailer or vehicle operates on a 12V system before purchasing.

What is the current draw across all functions?

Current draw is extremely low Stop: 0.07A, Tail + Number Plate: 0.05A, Indicator: 0.08A all at 13.8V. This makes the 149 series one of the most power-efficient combination lamp options available for small 12V trailer applications.
