LED Autolamps 149BARL4P 12V Stop/Tail/Indicator/Licence Plate Lamp With Reflector
Click to open expanded view
LED AUTOLAMPS logo

Out of stock

LED Autolamps 149BARL4P 12V Stop/Tail/Indicator/Licence Plate Lamp With Reflector

SKU: 149BARL4P
Regular price
$79
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved Stop/Tail/Indicator/Licence Plate Lamp Horizontal/Vertical Mount, 4-Pin Harness Compatible

Product Overview

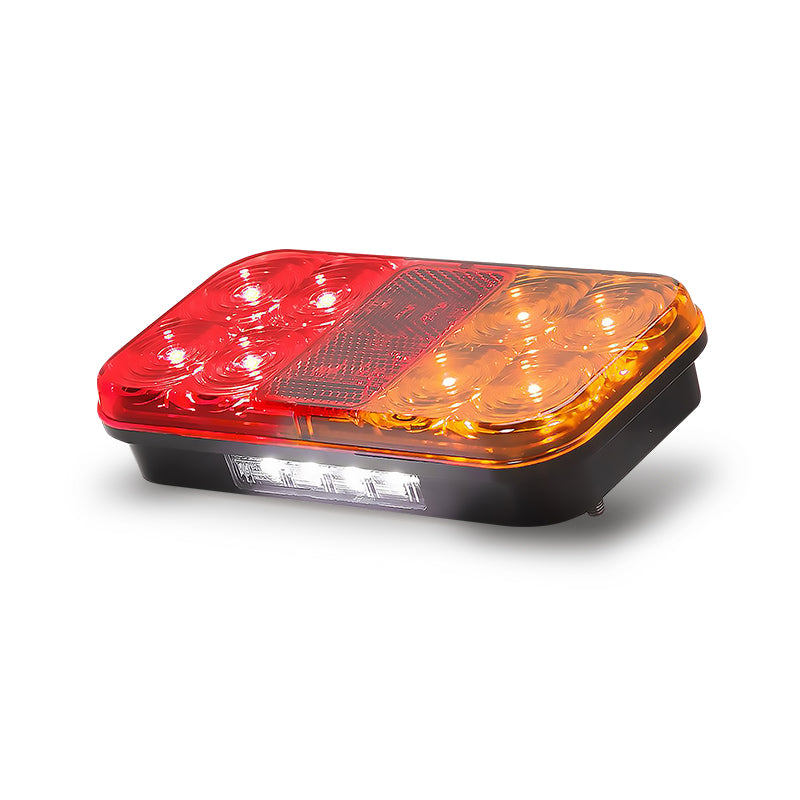

The LED Autolamps 149BARL4P is a rear combination lamp covering stop, tail, indicator, licence plate, and reflector functions in a single 150mm x 80mm x 29mm unit with the added versatility of horizontal and vertical mounting options. The integrated licence plate lamp eliminates the need for a separate fitting, simplifying wiring on trailers and light vehicles.

Compatible with LED Autolamps' 4-pin plug harness system on select cable configurations refer to the cable systems range or contact F.A.E. to confirm compatible part numbers. ECE approved, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

  • Integrated licence plate lamp — eliminates the need for a separate licence plate light, simplifying wiring and reducing components
  • Horizontal and vertical mount options — flexible orientation suits a wide range of trailer and truck body panel layouts
  • Stop, tail, indicator, licence plate, and reflector in one lamp — five functions in a single compact unit
  • 4-pin plug harness compatible — on select cable system configurations; confirm compatible part numbers with F.A.E.
  • ECE approved — meets international road approval standards for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V — compatible with 12V and 24V vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 149BARL4P
Lamp Type Stop / Tail / Indicator / Licence Plate / Reflector
Voltage Range 12V / 24V
Dimensions 150mm x 80mm x 29mm
Mounting Horizontal or vertical surface mount
Connector 4-pin plug (harness compatible on select variants)
Protection Rating IP67
Compliance ECE
Warranty 5 years

Compatible With / Goes Well With

  • Trailers and light vehicles requiring a combined stop/tail/indicator/licence plate solution with mounting flexibility
  • LED Autolamps 4-pin cable harness systems (confirm compatible part numbers with F.A.E.)
  • 12V and 24V vehicle electrical systems
  • LED Autolamps 149BARLP2 (same functions, 12V only, twin blister pack)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 149BARL4P approved for road use in Australia?

Yes. The 149BARL4P is ECE approved, meeting international road approval standards accepted for legal on-road use in Australia.

How does the 149BARL4P differ from the 149BARLP2?

The 149BARL4P offers horizontal and vertical mounting options, 4-pin harness compatibility, and 12/24V operation — while the 149BARLP2 is 12V only, surface mount only, and supplied as a twin blister pack. Both integrate a licence plate lamp and reflex reflector.

What does the 4-pin harness compatibility mean?

On certain cable system configurations, the 149BARL4P plugs directly into LED Autolamps' 4-pin harness system for a cleaner, tool-free installation. Contact F.A.E. to confirm which cable system part numbers are compatible.

What is the IP rating on the 149BARL4P?

The 149BARL4P is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and vehicle rear panel mounting.

What warranty does the 149BARL4P carry?

The 149BARL4P is backed by a 5-year warranty from LED Autolamps.
