LED Autolamps 149BAR4P 12V Stop/Tail/Indicator Lamp Reflector With 4 Pin Plug
Click to open expanded view
LED AUTOLAMPS logo

Out of stock

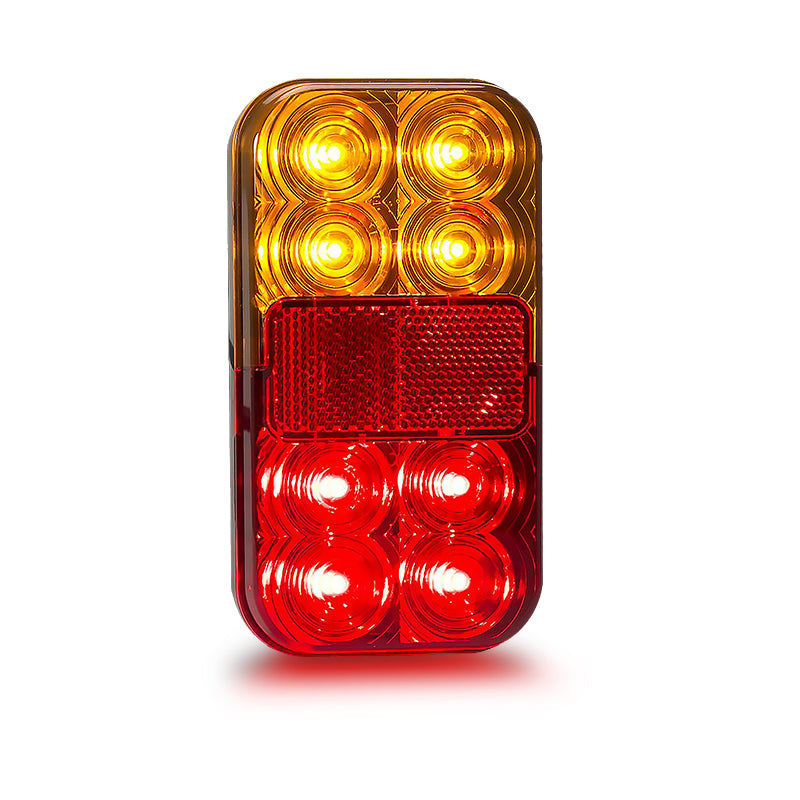

LED Autolamps 149BAR4P 12V Stop/Tail/Indicator Lamp Reflector With 4 Pin Plug

SKU: 149BAR4P
Regular price
$56
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved Stop/Tail/Indicator/Reflector Lamp with 4-Pin Plug Horizontal/Vertical Mount, IP67

Product Overview

The LED Autolamps 149BAR4P is a rear combination lamp covering stop, tail, indicator, and reflector functions in a single 150mm x 80mm x 29mm unit without the integrated licence plate lamp found in the 149BARL4P. Mounting flexibility is retained with both horizontal and vertical orientation options, and the 4-pin plug provides harness compatibility on select LED Autolamps cable system configurations.

ECE approved, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

  • Stop, tail, indicator, and reflector in one lamp — four functions in a single compact unit, simplifying installation
  • Horizontal and vertical mount options — flexible orientation suits a wide range of trailer and truck body panel layouts
  • 4-pin plug — harness compatible on select LED Autolamps cable system configurations; confirm compatible part numbers with F.A.E.
  • ECE approved — meets international road approval standards for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V — compatible with 12V and 24V vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 149BAR4P
Lamp Type Stop / Tail / Indicator / Reflector
Voltage Range 12V / 24V
Dimensions 150mm x 80mm x 29mm
Mounting Horizontal or vertical surface mount
Connector 4-pin plug (harness compatible on select variants)
Protection Rating IP67
Compliance ECE
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring flexible-mount rear combination lamps with 4-pin harness compatibility
  • LED Autolamps 4-pin cable harness systems (confirm compatible part numbers with F.A.E.)
  • 12V and 24V vehicle electrical systems
  • LED Autolamps 149BARL4P (same lamp with integrated licence plate)
  • LED Autolamps 149BARM4P (same series, same dimensions)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 149BAR4P approved for road use in Australia?

Yes. The 149BAR4P is ECE approved, meeting international road approval standards accepted for legal on-road use in Australia.

How does the 149BAR4P differ from the 149BARL4P?

The 149BARL4P includes an integrated licence plate lamp in addition to stop, tail, indicator, and reflector functions. The 149BAR4P covers the same four functions without the licence plate lamp — suited to applications where a separate licence plate light is already fitted or not required.

What does the 4-pin harness compatibility mean?

On certain cable system configurations, the 149BAR4P plugs directly into LED Autolamps' 4-pin harness system for a cleaner installation. Contact F.A.E. to confirm which cable system part numbers are compatible with your setup.

What is the IP rating on the 149BAR4P?

The 149BAR4P is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 149BAR4P carry?

The 149BAR4P is backed by a 5-year warranty from LED Autolamps.
