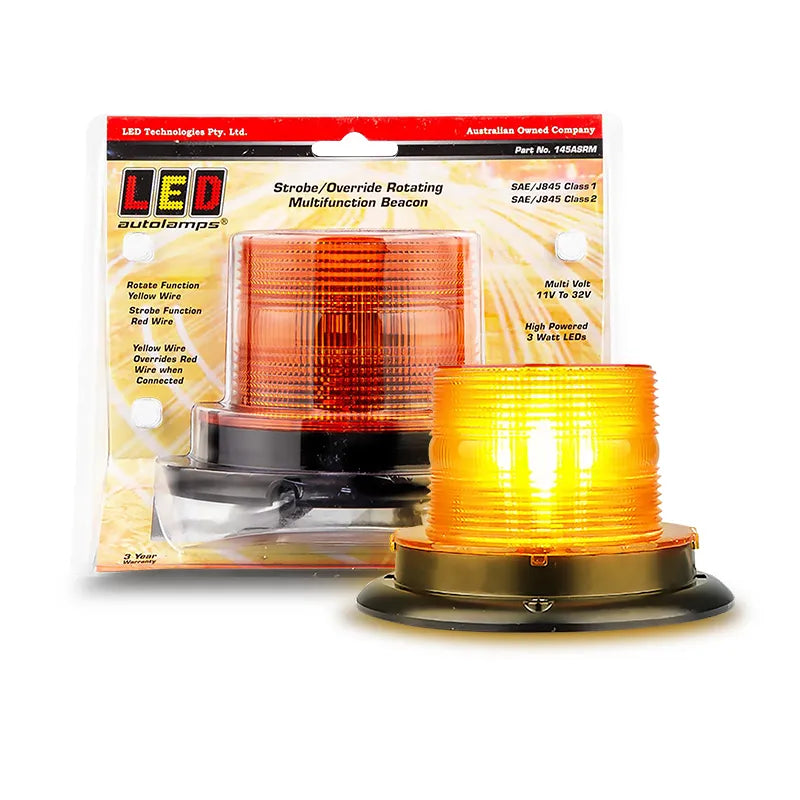

LED Autolamps 145ASRM Amber Strobe/Rotating Multifunction Heavy Duty Mining Design Beacon
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 145ASRM Amber Strobe/Rotating Multifunction Heavy Duty Mining Design Beacon

SKU: 145ASRM
Price
$511
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

SAE Class 1/2 Heavy-Duty Mining Beacon Switchable Strobe/Rotate, 12x3W LEDs, NHVR OSOM Compliant

Product Overview

The LED Autolamps 145ASRM is a heavy-duty amber beacon purpose-designed for the mining industry, delivering both rotating (SAE Class 1) and strobe (SAE Class 2) functions in a single unit switchable via an external SPDT switch (not supplied). Powered by 12 x 3W SMD LEDs through an amber polycarbonate lens, it draws 0.46A in rotate mode and 0.70A in strobe mode at 13.8V.

Measuring 144mm round x 91mm high with an aluminium base, the 145ASRM meets NHVR Oversize Overmass (OSOM) warning device requirements and is rated IP67 across an 11–32V operating range. A synchronisation function allows multiple units to operate in unison across a vehicle or convoy. Backed by a 3-year warranty.

Features & Benefits

  • Switchable strobe and rotating functions — a single SPDT switch (not supplied) toggles between rotate and strobe modes, offering full SAE J845 Class 1 (rotate) and Class 2 (strobe) compliance in one unit
  • 12 x 3W high-power SMD LEDs — 36W total LED output delivers exceptional brightness for mining, heavy haulage, and oversize load applications
  • NHVR OSOM compliant — meets National Heavy Vehicle Regulator requirements for oversize overmass warning devices on Australian roads
  • SAE J845 Class 1 (rotate) and Class 2 (strobe) — dual classification covers the broadest range of warning device compliance requirements
  • Safer in-cab override function — allows the operator to switch modes from the cab without leaving the vehicle
  • Synchronise multiple units — link multiple 145ASRM beacons to operate in unison across a vehicle or convoy
  • Aluminium base — heavy-duty construction suited to the rigours of mining and heavy transport environments
  • IP67 rated — fully sealed against dust and water immersion
  • 11–32V operating range — compatible with 12V and 24V vehicle electrical systems across a broad input range
  • 3-year warranty — backed by LED Autolamps' warranty programme

Technical Specs

Specification Detail
SKU 145ASRM
Lamp Type Strobe / Rotating Beacon
LED Configuration 12 x 3W SMD
LED Colour Amber
Lens Colour Amber
Lens Material Polycarbonate
Base Material Aluminium
Voltage Range 11V – 32V
Current Draw (Rotate) 0.46A @ 13.8V
Current Draw (Strobe) 0.70A @ 13.8V
Dimensions 144mm round x 91mm
Mounting Permanent
Switch (Mode) External SPDT switch (not supplied)
Compliance SAE J845 Class 1 (Rotate) / Class 2 (Strobe)
NHVR Compliance OSOM warning device requirements
Protection Rating IP67
Warranty 3 years

Compatible With / Goes Well With

  • Mining vehicles, heavy plant equipment, and oversize/overmass transport requiring NHVR OSOM compliant warning devices
  • 12V and 24V vehicle and equipment electrical systems
  • Multi-unit synchronised warning light setups
  • LED Autolamps wiring harnesses and emergency lighting accessories

Frequently Asked Questions

What does the switchable strobe/rotate function mean?

The 145ASRM can operate in either rotating mode (SAE J845 Class 1) or strobe mode (SAE J845 Class 2), selectable via an external SPDT switch — not included and must be sourced separately. This dual-mode capability provides compliance across both SAE classifications in a single unit.

What is NHVR OSOM compliance?

NHVR stands for National Heavy Vehicle Regulator. OSOM refers to Oversize Overmass vehicle operations on Australian roads. The 145ASRM meets the NHVR requirements for warning devices on OSOM vehicles — an important compliance requirement for heavy haulage and wide load operators in Australia.

What is the in-cab override function?

The in-cab override allows the operator to switch between rotate and strobe modes from inside the cab without exiting the vehicle — a safety feature for mining and heavy haulage environments where leaving the cab is hazardous.

How many units can be synchronised?

Multiple 145ASRM units can be linked to operate in unison — confirm maximum sync capacity and connection method with F.A.E. or LED Autolamps before ordering.

What warranty does the 145ASRM carry?

The 145ASRM is backed by a 3-year warranty from LED Autolamps.
