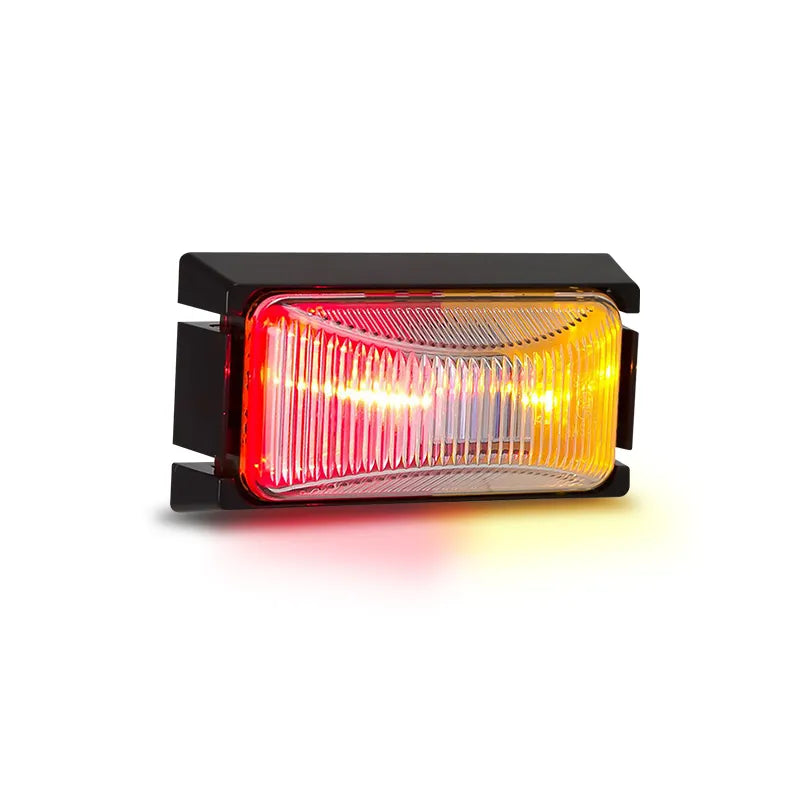

LED Autolamps 1458ARM Red Amber Side Marker 2 LEDs With 20cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 1458ARM Red Amber Side Marker 2 LEDs With 20cm Wire

SKU: 1458ARM
Price
$30
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 1458ARM 12-24V Red and Amber LED Side Marker Lamp 2 LEDs 74mm x 38mm Clear Lens Clip-In ADR Approved CTA039468 IP67 with 20cm Wire

The LED Autolamps 1458ARM is a 12-24V red and amber LED side marker lamp with 2 LEDs, a clip-in clear lens, and 20cm pre-wired lead. ADR approved (CTA039468), IP67 waterproof, black housing. 74mm x 38mm x 26mm. Five-year warranty. Sold individually.

Product overview

The 1458ARM is the dual-colour red and amber version in the LED Autolamps 1458 series side marker range, sharing the same 74mm x 38mm rectangular form factor as the 1458AM and 1458RM. The clip-in lens allows replacement without removing the full lamp assembly. ADR approval CTA039468 confirms road-legal use in Australia. 20cm pre-wired lead. Black housing with clear lens. 12-24V compatible. IP67 rated.

Features and benefits

Red and amber LED output: Dual-colour side marker output in a single unit.

Clip-in lens design: Lens can be replaced without removing or replacing the full lamp assembly.

ADR approved (CTA039468): Compliant for road use in Australia as a side marker lamp.

IP67 fully waterproof and submersible: Suited to trailer, truck, and off-road environments.

20cm pre-wired lead: Ready for connection at the installation point.

74mm x 38mm x 26mm black housing: Matches the 1458 series form factor for consistent side lighting builds.

12V and 24V compatible: Suits light vehicles and 24V heavy transport.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 1458ARM
Brand LED Autolamps
Type Side marker lamp
LED Count 2
LED Colour Red and amber
Lens Clear, clip-in
Housing Colour Black
Operating Voltage 12V to 24V
Dimensions 74mm x 38mm x 26mm
Cable 20cm pre-wired
Waterproof Rating IP67
ADR Compliance CTA039468
Weight 0.034kg
Manufactured In China (Taiwan)
Sold As Each
Warranty Five years

Frequently asked questions

Is the 1458ARM ADR approved? Yes. The 1458ARM holds ADR approval CTA039468, confirming compliance for road use in Australia as a side marker lamp.

What is the difference between the 1458ARM and the 1458AM? The 1458AM is an amber-only side marker. The 1458ARM combines red and amber LEDs in a single unit for dual-colour side marker applications. Both share the same 74mm x 38mm form factor.

What does the clip-in lens design mean? The clip-in lens can be removed and replaced independently from the lamp housing, simplifying servicing if the lens is damaged without replacing the full unit.

What voltage does the 1458ARM operate on? The 1458ARM operates on 12V and 24V systems, making it suited to light vehicle trailers, trucks, and commercial vehicles.

Is the 1458ARM sold as a single unit or a pair? Sold individually.
