LED Autolamps 135WM Multi Volt Reverse Lamp With 35 SMDS Blister Pack Black Base
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 135WM Multi Volt Reverse Lamp With 35 SMDS Blister Pack Black Base

SKU: 135WM
Price
$124
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 1/00 Approved 35 SMD Reverse Lamp Surface or Recessed Mount, Black Base, IP67

Product Overview

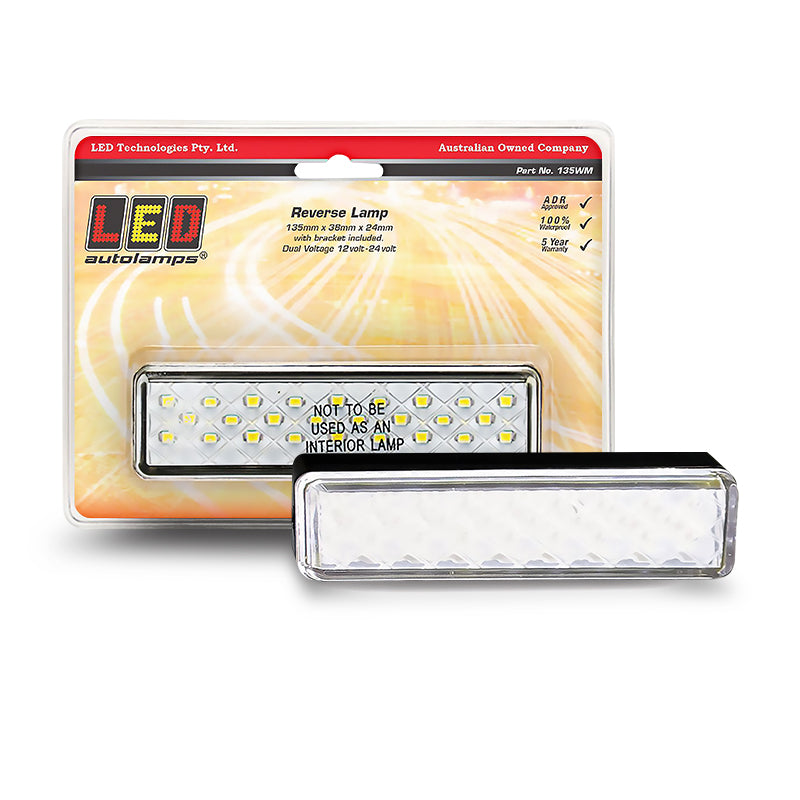

The LED Autolamps 135WM is a 12/24V reverse lamp fitted with 35 SMD LEDs in a rectangular black base housing, offering both surface mount and recessed mount installation options. Measuring 135mm x 38mm (lamp) or 145mm x 48mm (overall with bracket), it draws just 0.16A at 13.8V and is pre-wired with a 0.4m cable lead.

ADR 1/00 approved and rated IP67, supplied in blister packaging and backed by a 5-year warranty.

Features & Benefits

  • 35 SMD LEDs — delivers bright, consistent white reverse output across the full rectangular lamp face
  • Surface or recessed mount — flexible installation suits a wide range of trailer and truck body panel configurations
  • ADR 1/00 approved — meets Australian Design Rules for legal on-road use as a reverse lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • Black base — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
  • Low current draw — 0.16A at 13.8V for efficient operation in multi-lamp trailer builds
  • 0.4m pre-wired cable — ready to connect straight out of the blister pack
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 135WM
Lamp Type Reverse
LED Configuration 35 SMD
Voltage Range 12V / 24V
Lamp Dimensions 135mm x 38mm x 24mm
Overall Dimensions 145mm x 48mm x 10mm
Current Draw 0.16A @ 13.8V
Cable Length 0.4m
Housing Colour Black
Mounting Surface or recessed
Protection Rating IP67
Compliance ADR 1/00
Packaging Blister pack
Warranty 5 years
Weight 0.2 kg

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring surface or recessed reverse lamps
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved reverse lighting
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 135WM approved for road use in Australia?

Yes. The LED Autolamps 135WM is ADR 1/00 approved, meeting Australian Design Rules requirements for legal on-road use as a reverse lamp.

What mounting options does the 135WM support?

The 135WM can be installed as either a surface mount or recessed mount, offering flexibility to suit different trailer and truck body panel configurations.

What is the current draw of the 135WM?

The 135WM draws 0.16A at 13.8V, making it one of the more efficient reverse lamp options in the LED Autolamps range — useful for multi-lamp builds where total current draw is a consideration.

What is the IP rating on the 135WM?

The 135WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 135WM carry?

The 135WM is backed by a 5-year warranty from LED Autolamps.

Weight

0.2 kg
