LED Autolamps 135RM Multi Volt Stop/Tail Lamp 8 Square LEDs With Black Base
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 135RM Multi Volt Stop/Tail Lamp 8 Square LEDs With Black Base

SKU: 135RM
Price
$70
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 8 Square LED Stop/Tail Lamp Surface Mount, Black Base, IP67, 5-Year Warranty

Product Overview

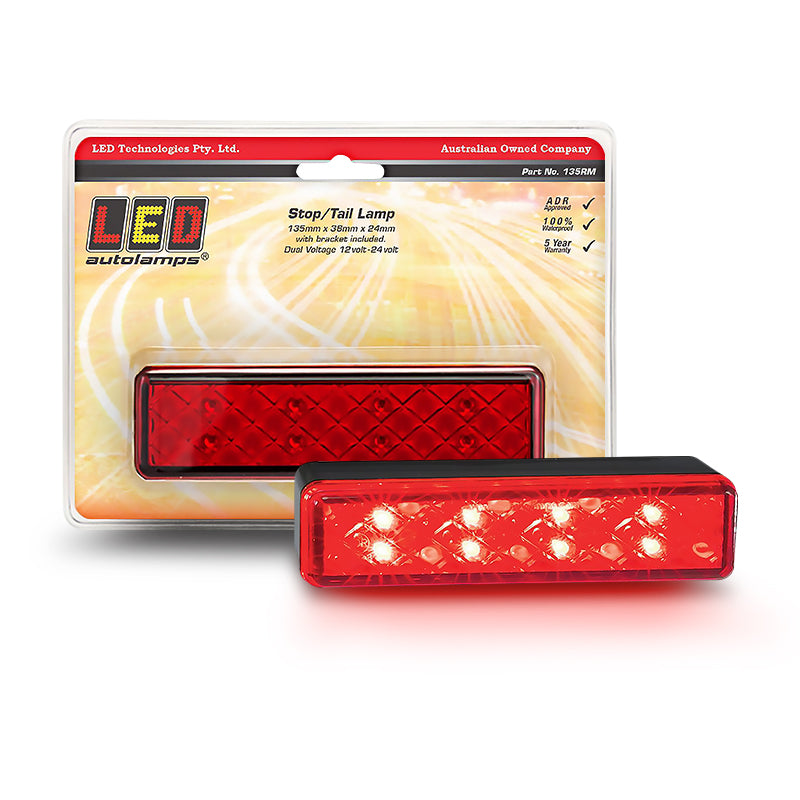

The LED Autolamps 135RM is a 12/24V stop/tail lamp fitted with 8 square LEDs in a rectangular black base housing, designed for surface mounting on trailers, trucks, and commercial vehicles. Measuring 135mm x 38mm x 24mm, it shares the same compact rectangular form factor as the 135WM reverse lamp suited to builds where a matched, low-profile rear lighting set is required.

ADR road approved and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • 8 square LEDs — distinctive square LED array delivers strong, consistent red stop/tail output across the rectangular lamp face
  • Surface mount — straightforward installation on trailer and truck body rear panels
  • ADR road approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • Black base — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 135RM
Lamp Type Stop / Tail
LED Configuration 8 square LEDs
Voltage Range 12V / 24V
Dimensions 135mm x 38mm x 24mm
Housing Colour Black
Mounting Surface mount
Protection Rating IP67
Compliance ADR
Packaging Blister pack
Warranty 5 years
Weight 0.2 kg

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring rectangular surface-mount stop/tail lamps
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail lighting
  • LED Autolamps 135WM reverse lamp (same 135mm x 38mm rectangular form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 135RM approved for road use in Australia?

Yes. The LED Autolamps 135RM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

What makes the square LED array different from standard LEDs?

The 8 square LEDs produce a distinctive, evenly distributed pattern across the lamp face, giving the 135RM a recognisable appearance compared to round LED arrays in standard trailer lamps.

How does the 135RM match with the 135WM reverse lamp?

Both share the same 135mm x 38mm x 24mm black housing form factor, making them a natural matched pair for stop/tail and reverse functions on the same trailer or truck body.

What is the IP rating on the 135RM?

The 135RM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 135RM carry?

The 135RM is backed by a 5-year warranty from LED Autolamps.

Weight

0.2 kg
