LED Autolamps 135CAT1 12V Front Direction Indicator Lamp 18 Square LEDs Blister
Click to open expanded view
LED AUTOLAMPS logo

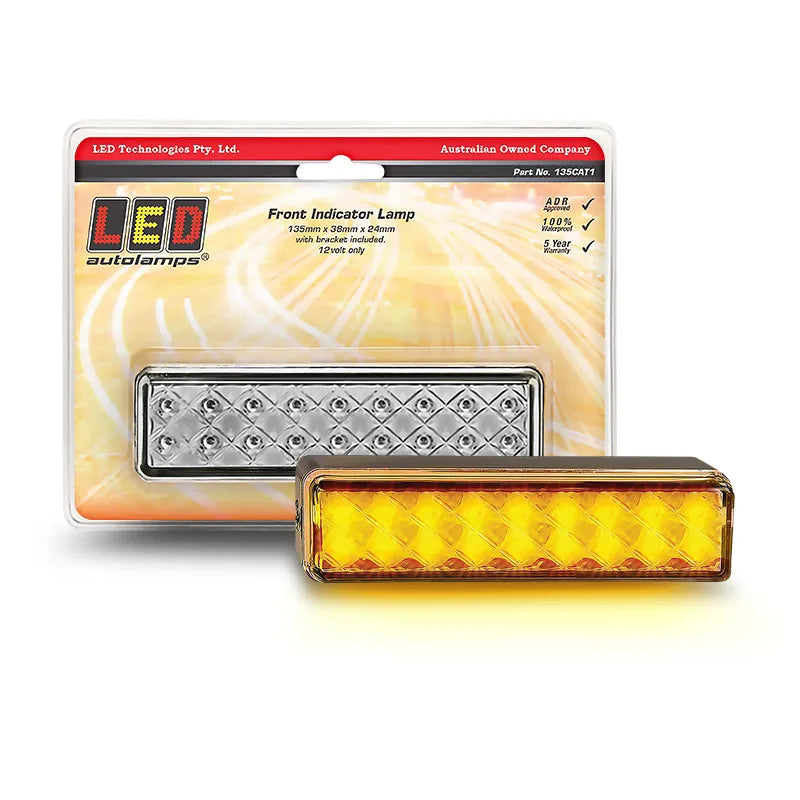

LED Autolamps 135CAT1 12V Front Direction Indicator Lamp 18 Square LEDs Blister

SKU: 135CAT1
Price
$80
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 12V Front Direction Indicator with 18 Square LEDs Surface Mount, IP67

Product Overview

The LED Autolamps 135CAT1 is a 12V front direction indicator and position lamp fitted with 18 square LEDs, in the compact rectangular 135 series form factor. Pre-wired and designed for surface mounting on trucks, trailers, and light commercial vehicles, it delivers ADR-approved front indicator output certified under CRN39340.

Rated IP67 and drawing 0.4A, it's the 12V counterpart to the 135CAT124.

Features & Benefits

  • 18 square LEDs — distinctive square LED array delivers strong, consistent amber front indicator output
  • Pre-wired surface mount — ready to connect and mount straight out of the blister pack
  • ADR road approved — certified under CRN39340 for legal on-road use as a front direction indicator and position lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12V only — designed for 12V trailer and vehicle electrical systems
  • 0.4A current draw — efficient operation suitable for multi-lamp front lighting builds

Technical Specs

Specification Detail
SKU 135CAT1
Lamp Type Front Direction Indicator / Position
LED Configuration 18 square LEDs
Voltage 12V
Current Draw 0.4A
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Compliance ADR — CRN39340
Weight 0.1 kg

Compatible With / Goes Well With

  • Trucks, trailers, and light commercial vehicles requiring 12V front direction indicator lamps
  • Trailer builds requiring ADR-approved front indicator lighting
  • LED Autolamps 135CAT124 front indicator/position lamp (24V equivalent)
  • LED Autolamps 135RM stop/tail lamp (same 135 series form factor)
  • LED Autolamps 135WM reverse lamp (same 135 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 135CAT1 approved for road use in Australia?

Yes. The 135CAT1 is ADR approved under CRN39340, meeting Australian Design Rules requirements for legal on-road use as a front direction indicator and position lamp.

How does the 135CAT1 differ from the 135CAT124?

The 135CAT1 is a 12V-only lamp with 18 square LEDs and a confirmed CRN approval number, while the 135CAT124 is the 24V-designated variant. Both share the same 135 series rectangular form factor.

What makes the square LED array distinctive?

The 18 square LEDs produce a uniform, evenly spaced pattern across the lamp face — giving the 135CAT1 a recognisable appearance compared to standard round LED arrays.

What is the IP rating on the 135CAT1?

The 135CAT1 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed outdoor and transport applications.

What warranty does the 135CAT1 carry?

Warranty information was not confirmed in available supplier data — contact F.A.E. or LED Autolamps to confirm before purchasing.

Weight

0.1 kg
