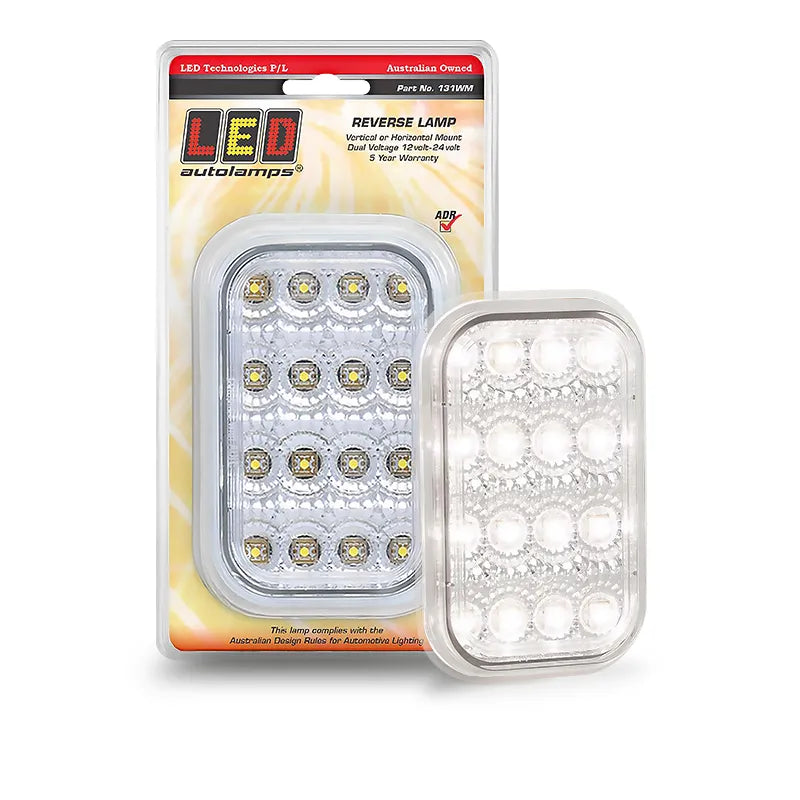

LED Autolamps 131WM LED Technologies Reverse LED Light Clear Lens 16 LEDs 12/24V
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 131WM LED Technologies Reverse LED Light Clear Lens 16 LEDs 12/24V

SKU: 131WM
Price
$122
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 131WM 12-24V LED Reverse Lamp Clear Lens 16 LEDs with Internal Chrome Reflector 134mm ADR Approved CTA046432 IP67

The LED Autolamps 131WM is a 12-24V LED reverse lamp with a clear lens, 16 LEDs, and an internal chrome reflector. ADR approved (CTA046432, ADR 1/00), IP67 waterproof, horizontal or vertical mount, pre-wired, 0.17A at 13.8V. 134mm x 87mm x 12mm. Five-year warranty. Sold individually.

Product overview

The 131WM completes the LED Autolamps 131 series chrome reflector lamp range, providing a reverse lamp in the same 134mm format as the 131AM indicator and 131RM stop/tail. The clear lens appears neutral when inactive. The internal chrome reflector maximises LED output when the reverse circuit is active. ADR 1/00 compliance and CTA046432 approval confirm road-legal use as a reverse lamp in Australia. 0.17A current draw at 13.8V. Pre-wired. Recessed mount. 12-24V compatible. IP67 rated.

Features and benefits

Clear lens with 16 white LEDs: Clear appearance when inactive, bright white reverse output when active.

Internal chrome reflector: Maximises LED output for strong reverse light visibility.

Matches the 131 series form factor: Pairs with the 131AM indicator and 131RM stop/tail for a uniform rear lighting set.

ADR approved (ADR 1/00, CTA046432): Compliant for road use in Australia as a reverse lamp.

Horizontal or vertical mount: Flexible installation orientation.

Pre-wired.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.

0.17A current draw at 13.8V.

134mm x 87mm x 12mm housing.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 131WM
Brand LED Autolamps
Type Reverse lamp
Light Type LED
LED Count 16
Lens Clear
Reflector Internal chrome
Operating Voltage 12V to 24V
Current Draw 0.17A at 13.8V
Mount Type Recessed, horizontal or vertical
Connector Pre-wired
Dimensions 134mm x 87mm x 12mm
Waterproof Rating IP67
ADR Compliance ADR 1/00, CTA046432
Weight 0.201kg
Manufactured In China (Taiwan)
Sold As Each
Warranty Five years

Frequently asked questions

Is the 131WM ADR approved? Yes. The 131WM holds ADR 1/00 compliance and CTA046432 approval, confirming road-legal use in Australia as a reverse lamp.

How does the 131WM fit with other 131 series lamps? The 131WM shares the same 134mm x 87mm x 12mm form factor as the 131AM indicator and 131RM stop/tail, making it a natural fit for a complete matched rear lighting set across all three functions.

What does the clear lens look like when the lamp is inactive? The clear lens appears visually neutral when the lamp is not powered. When the reverse circuit is active, the 16 white LEDs illuminate through the clear lens.

What is the current draw of the 131WM? The 131WM draws 0.17A at 13.8V.

Is the 131WM sold as a single unit or a pair? Sold individually.
